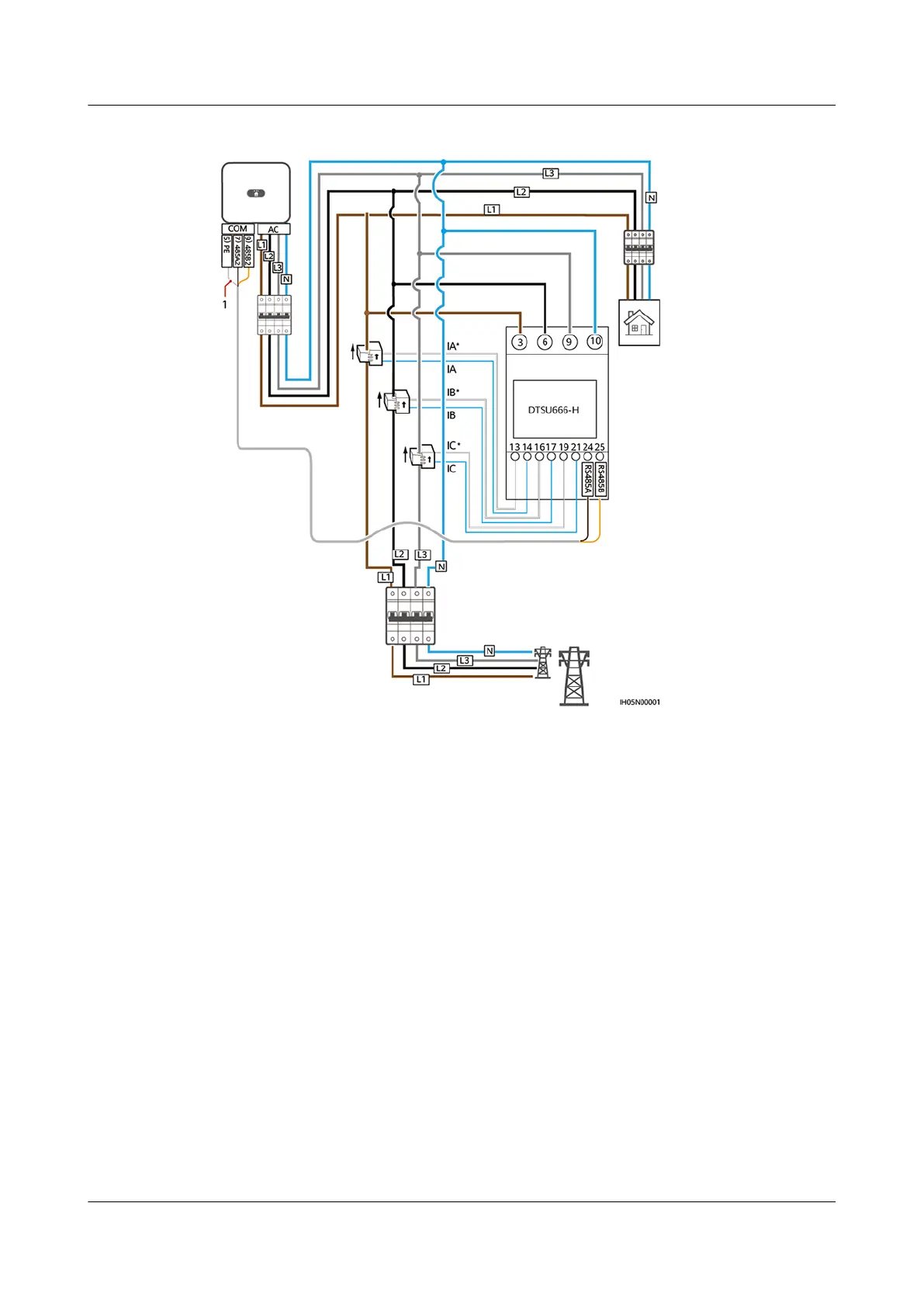

Figure 5-24 Cable connection (Three Phase Four Wire)
(1) Shielding layer of the signal cable
Procedure
Step 1 Connect the signal cable to the signal cable connector.
SUN2000-(3KTL-10KTL)-M1
User Manual 5 Electrical Connections
Issue 02 (2020-11-20) Copyright © Huawei Technologies Co., Ltd. 55
