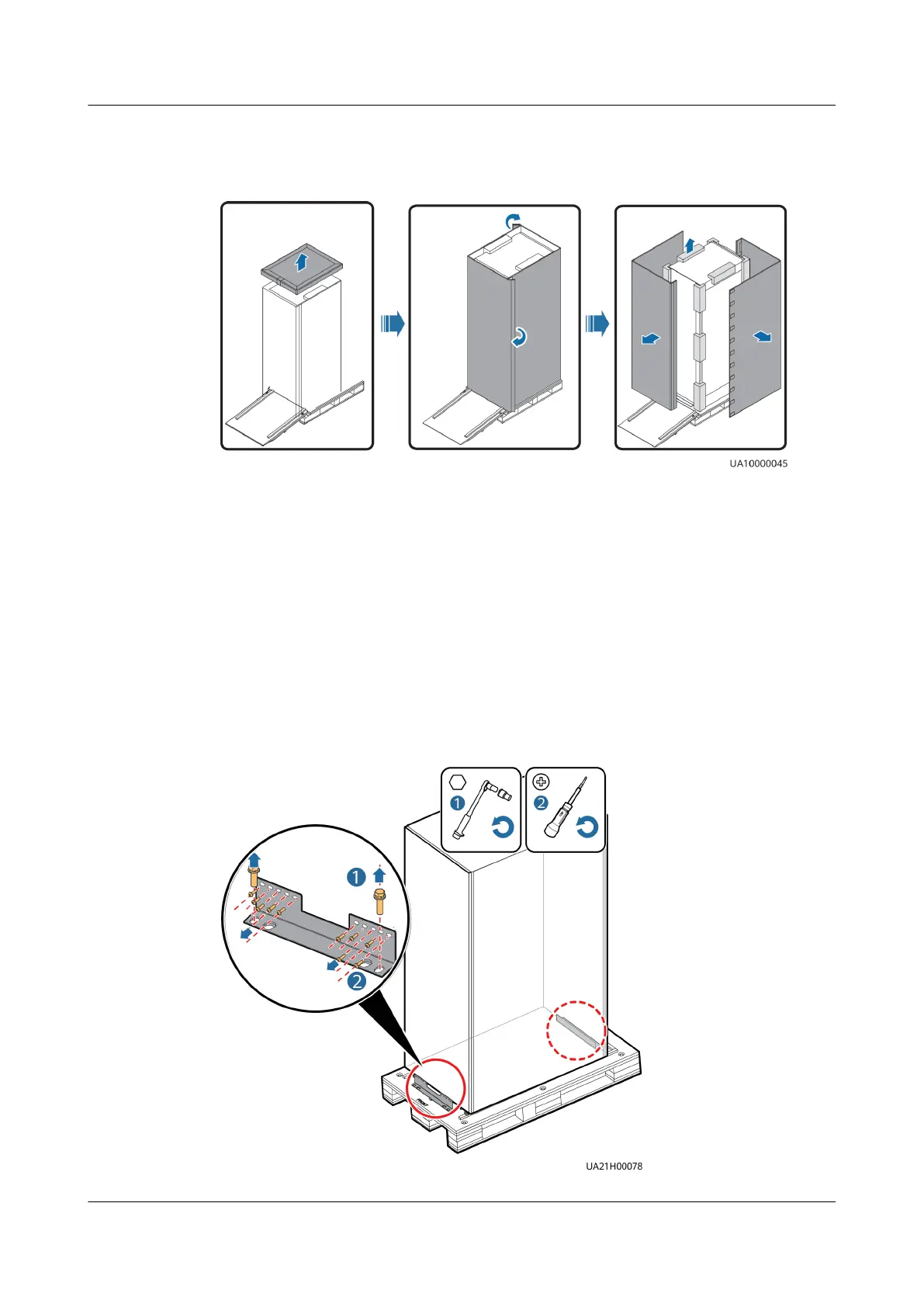

Step 4 Remove packing materials, as shown in Figure 3-4.
Figure 3-4 Removing packing materials
Step 5 Remove the plastic bag and take out the ttings box.
Step 6 Check that the UPS is intact.
1. Visually inspect the UPS appearance for shipping damage. If it is damaged,
notify the carrier immediately.
2. Check that the equipment and ttings are correct and complete according to
the packing list. If some ttings are missing or do not comply with the
packing list, record this information and contact the Company immediately.
Step 7 After conrming that the UPS is intact, remove the front and rear L-shaped
brackets that secure the UPS to the pallet, and secure the sliding plate to the
pallet using the two M12 bolts removed before.
Figure 3-5 Removing the L-shaped brackets
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 53
