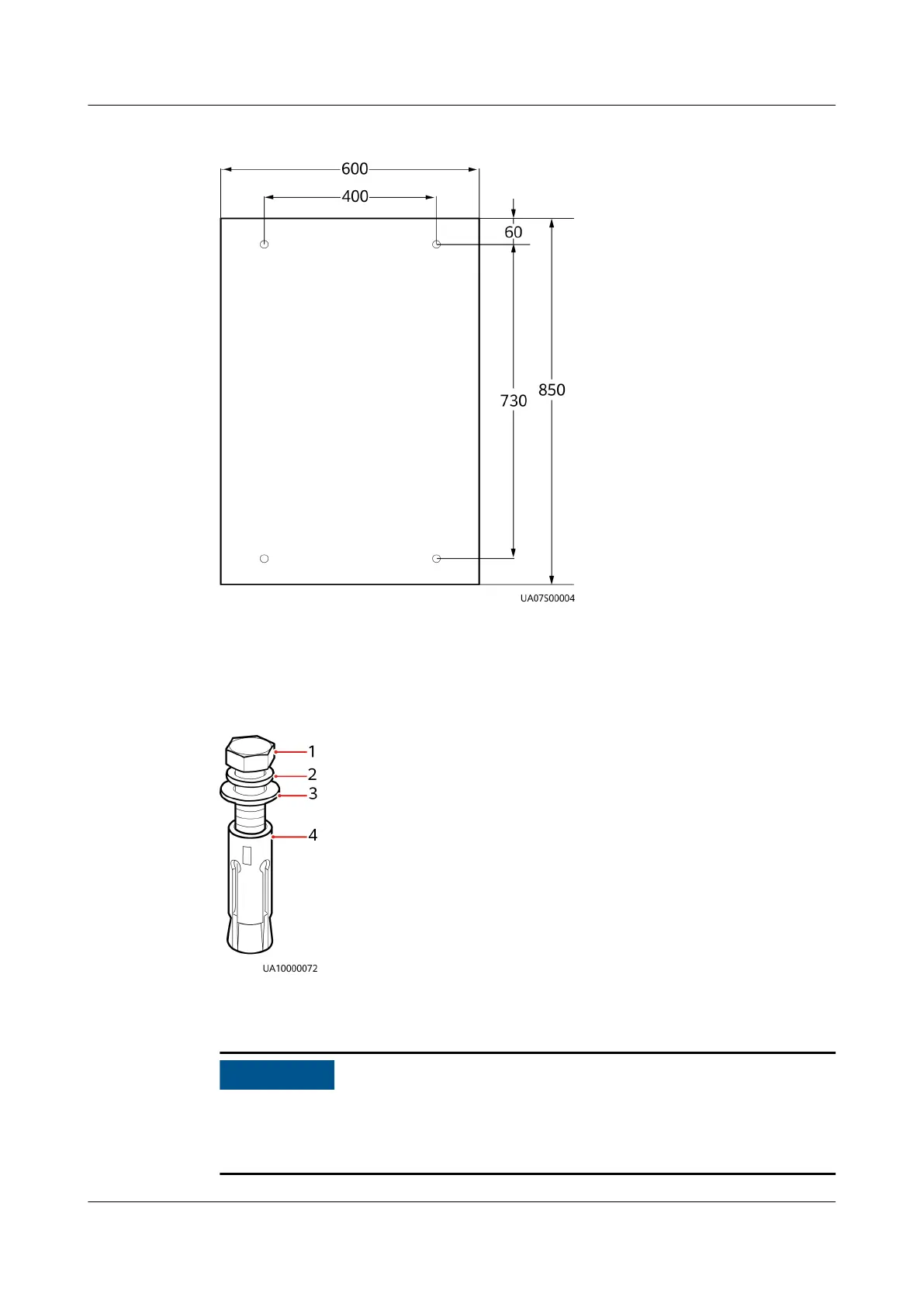

Figure 3-8 UPS mounting hole positions (unit: mm)
Step 2 Use a hammer drill to drill four holes for installing expansion bolts and then
install four expansion bolts in the holes. Figure 3-9 shows the composition of an
expansion bolt, and Figure 3-10 shows how to install an expansion bolt.
Figure 3-9 Expansion bolt composition
(1) M12 bolt
(2) Spring washer (3) Flat washer (4) Expansion sleeve
Knock the expansion bolt into the hole until the expansion sleeve completely ts
into the hole. The expansion sleeve must be completely buried under the ground
to facilitate subsequent installation.
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 56
