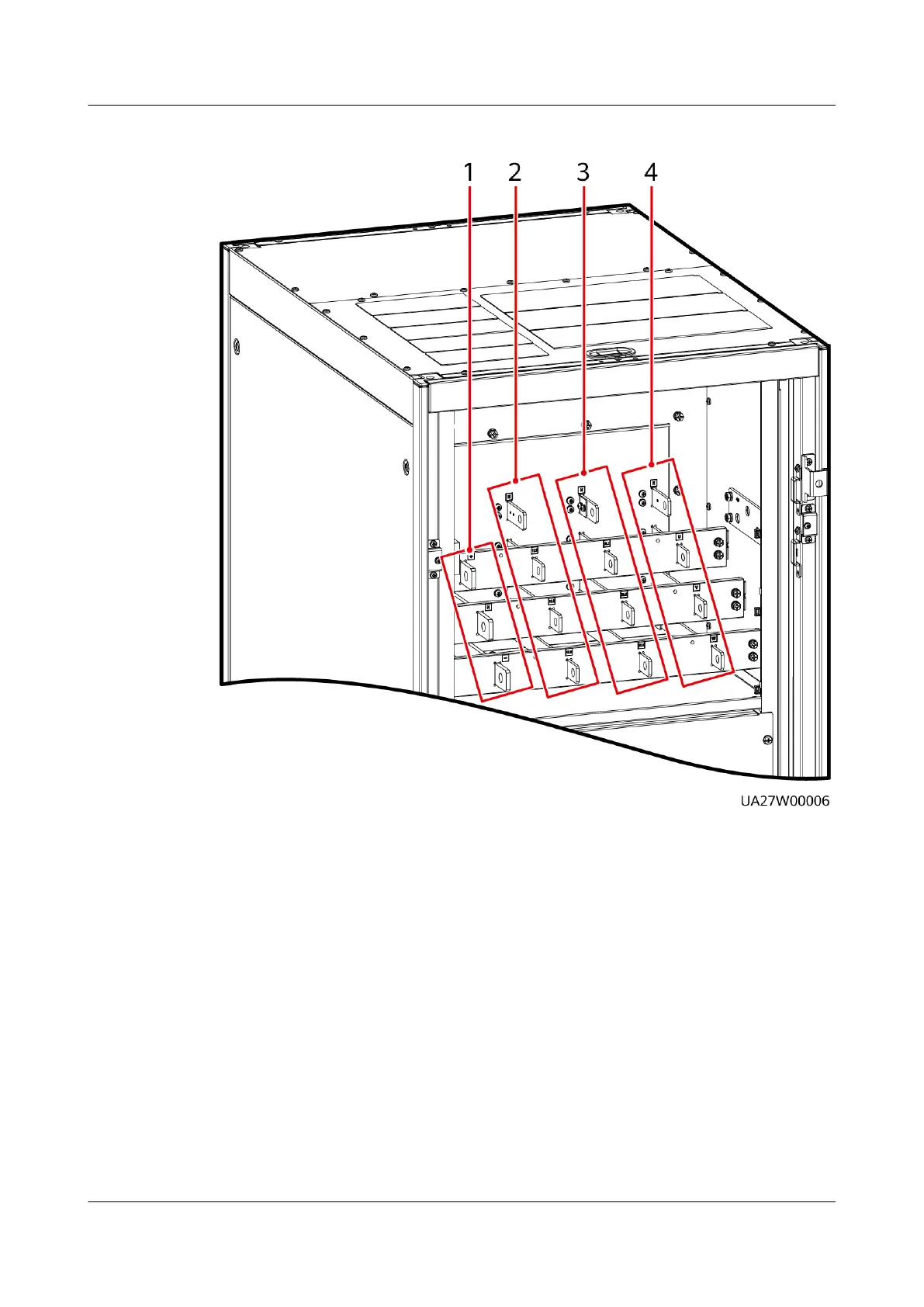

Figure 3-23 Copper bar positions
(1) Battery input terminals (+, N, –) (2) Mains input terminals (1L1–1L3, N)
(3) Bypass input terminals (2L1–2L3, N) (4) Output terminals (U, V, W, N)
Step 2 Connect the ground cable.
