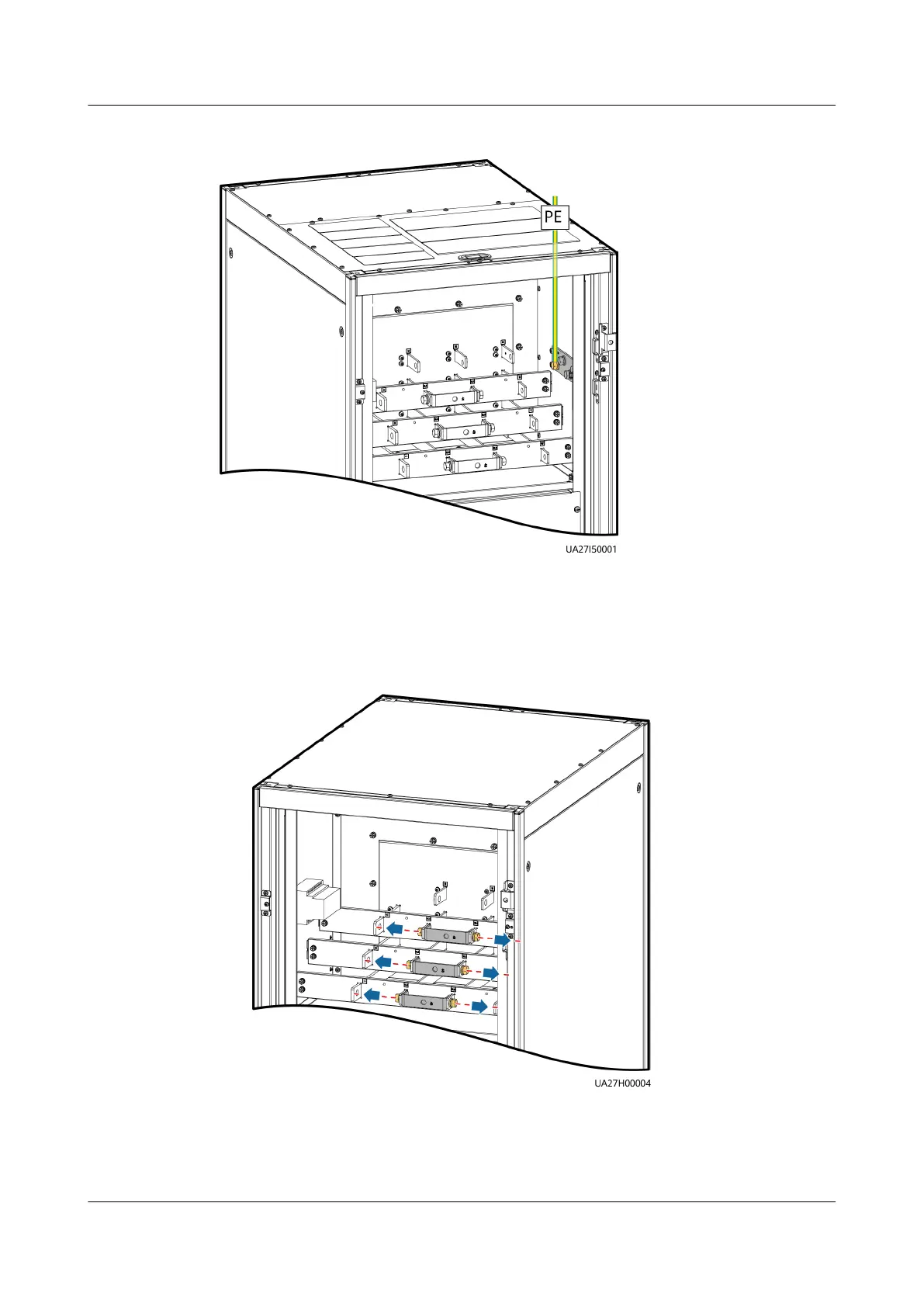

Figure 3-24 Grounding
Step 3 Route power cables.
● Two power sources
Remove the copper bar between mains and bypass input terminals.
Figure 3-25 Removing copper bars
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
Issue 03 (2022-01-30) Copyright © Huawei Technologies Co., Ltd. 67
