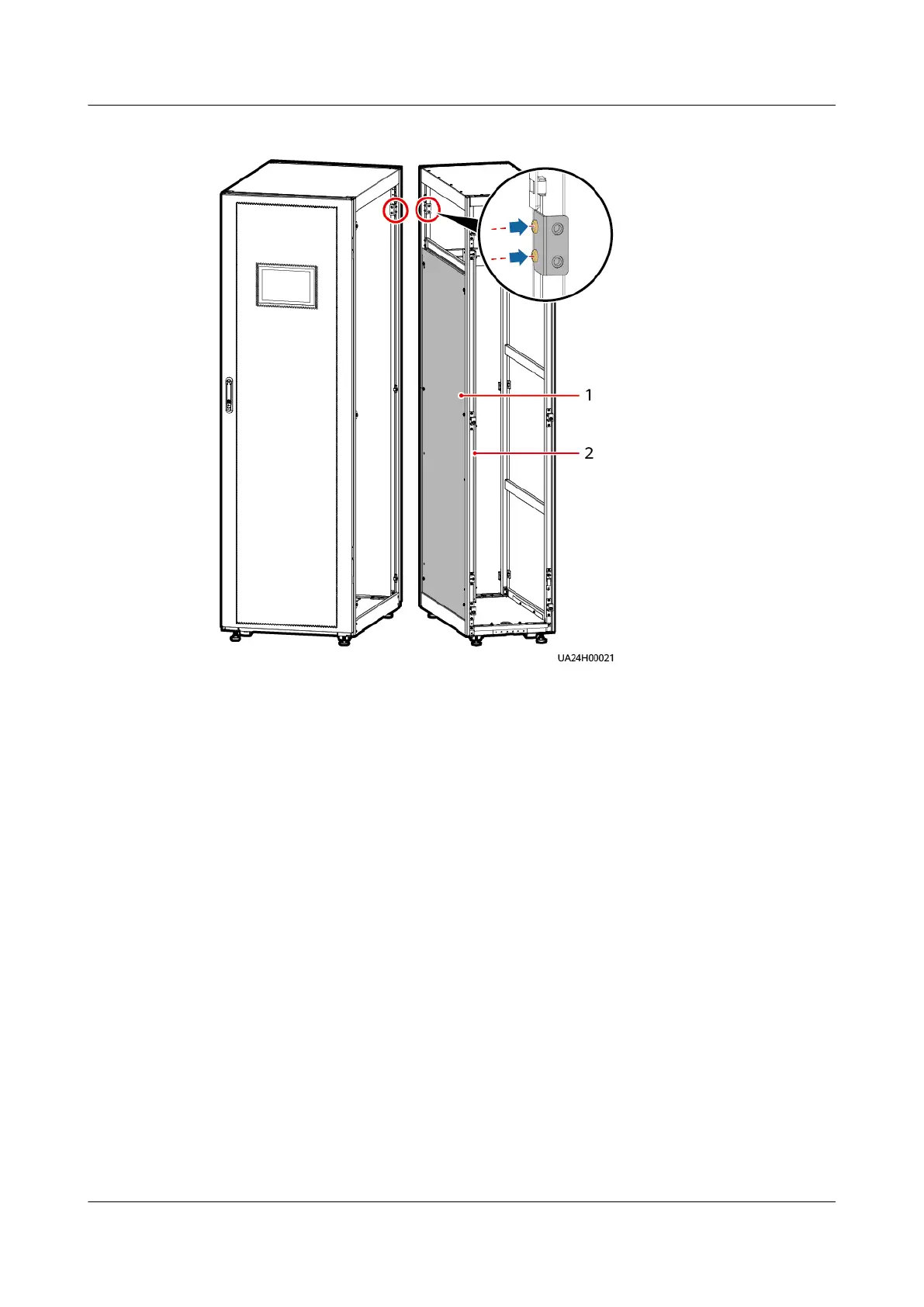

Figure 3-30 Installing equipotential plate mounting kits
(1) Side panel (2) Cable trough
Step 5 Place the cable entry cabinet on the right of the UPS cabinet.
Step 6 Install the front and rear connecting kits.
UPS5000-E-(30 kVA–120 kVA)-FM
User Manual 3 Installation
