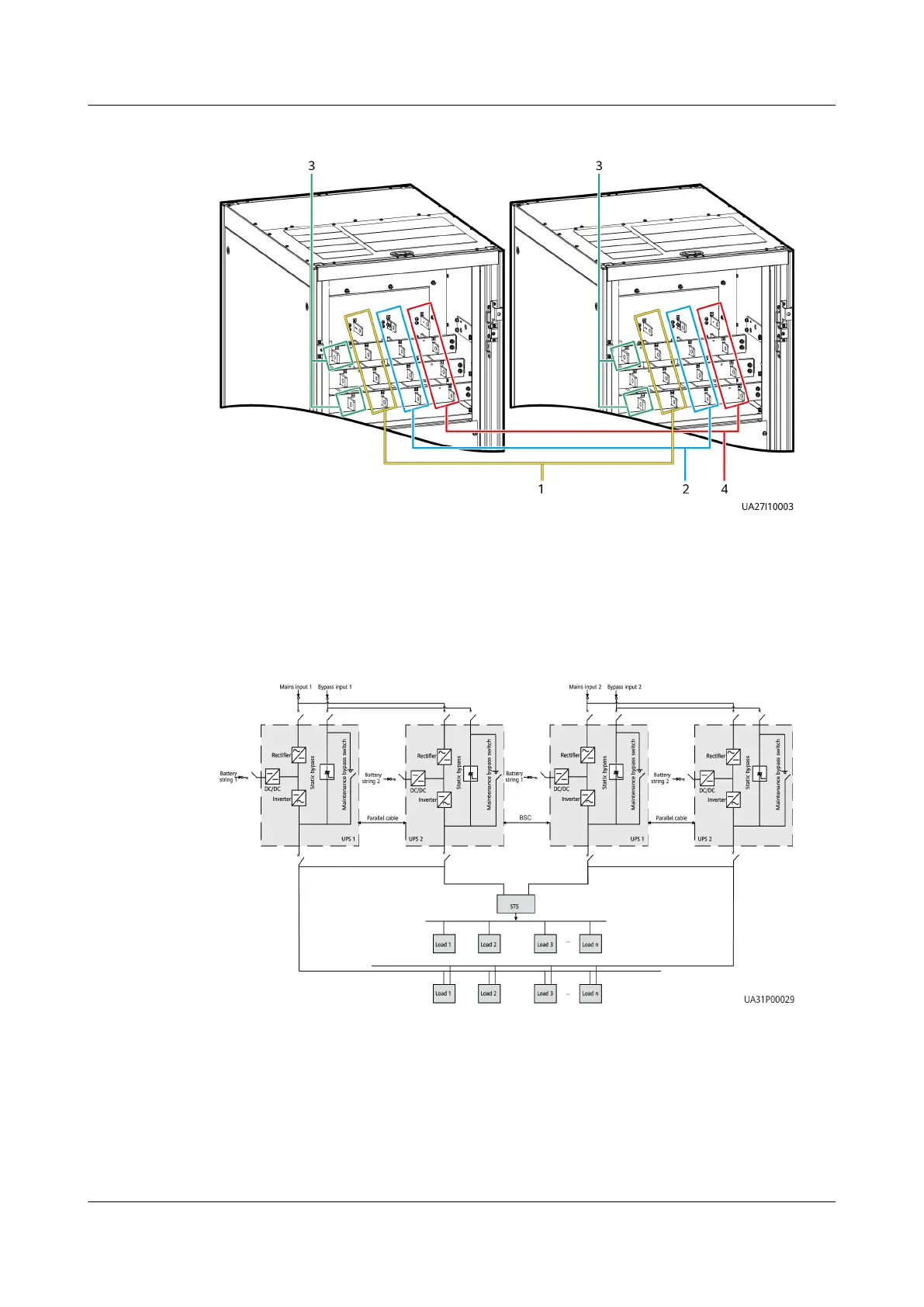

Figure 3-43 Cable connections for a 1+1 parallel system
(1) Mains input power
cables
(2) Bypass input power
cables
(3) Battery cables (4) Output power
cables
Figure 3-44 shows a typical conceptual diagram for a dual-bus system, and
Figure 3-45 shows the cable connections for this system.
Figure 3-44 Conceptual diagram of a dual-bus system
UPS5000-E-(30 kVA–120 kVA)-FM
