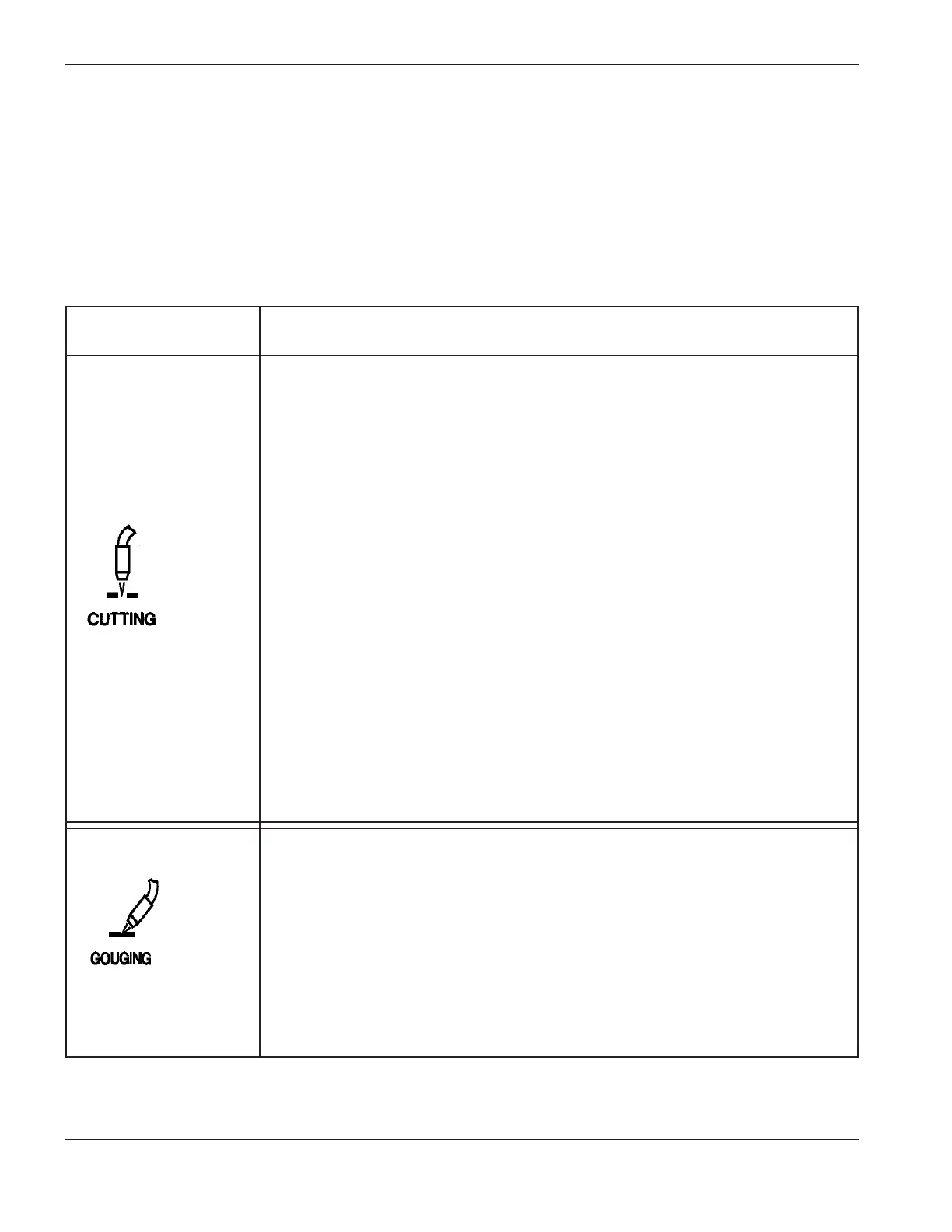

6-18 MAX200 Instruction Manual
15
PARTS LIST
Plasma Gas/ Retaining Swirl
Metal Amps Shield Gas Shield Cap Nozzle Ring Electrode
Mild 200 Air / Air 020918 020915 020608 020607 220021
Steel 100 Air / Air 020919 020915 020611 020607 120547
40 Air / Air 020917 020915 020689 020613 220021
200 O
2
/ Air 020918 020915 020605 020604 220021
100 O
2
/ Air 020919 020915 020616 020617 120547
200 N
2
/ CO
2
020918 020915 020608 020607 020415
Stainless 200 Air / Air 020918 020915 020608 020607 220021
Steel 100 Air / Air 020919 020915 020611 020607 220021
40 Air / Air 020917 020915 020689 020613 220021
200 N
2
/ Air 020918 020915 020608 020607 020415
200 N
2
/ CO
2
020918 020915 020608 020607 020415
200 H35 / N
2
020920 020915 020608 020607 020415
100 H35 / N
2
020919 020915 020611 020607 020415
Aluminum 200 Air / Air 020918 020915 020608 020607 220021
100 Air / Air 020919 020915 020611 020607 220021
40 Air / Air 020917 020915 020689 020613 220021
200 N
2
/ Air 020918 020915 020608 020607 020415
200 N
2
/ CO
2
020918 020915 020608 020607 020415
200 H35 / N
2
020918 020915 020608 020607 020415
100 H35 / N
2
020919 020915 020611 020607 020415
Mild 200 Air / Air 020891 020882 020615 020607 220021
Steel 200 H35/Air 020891 020882 020934 020607 020933
Stainless 200 H35 / N
2
020891 020882 020934 020607 020933
Steel
Aluminum 200 H35 / N
2
020891 020882 020934 020607 020933
PAC200T/E Consumables, Torch Assemblies and Torch Leads
Note: Refer to Appendix D for the optional PAC200T (65°) cutting trigger torch data.
PAC200T/E Trigger Torch Consumables – Figures 6-8, 6-9
Note: See pages 6-20 and 6-22 for consumable part kits
