APPENDIX E – ELECTROMAGNETIC COMPABILITY (EMC)
EMI Filter Parts List
Part
Item Number
Description
Qty.
001557 Cover: 200/2000-CE Electronic Filter Enclosure 1
1 001558 Enclosure: 200/2000-CE Electronic Filter 1
2 001559 Cover: 200/2000-CE Top 1
3 008489 Bushing: 1.97 ID X 2.5 Hole Black-Snap 1
4 008610 Strain Relief: 1-1/2NPT 1.5ID 2-Screw 1
5 029316 TB1 Input-Power SA: 200/2000/4X00/HD 1
6 109036 Filter: 60A 440VAC 3PH 2-Stage Electronic 1
7 109040 Filter Mounting Bracket for 109036 1
8 129033 Pilot Light SA: 200/2000-CE Fitler 1

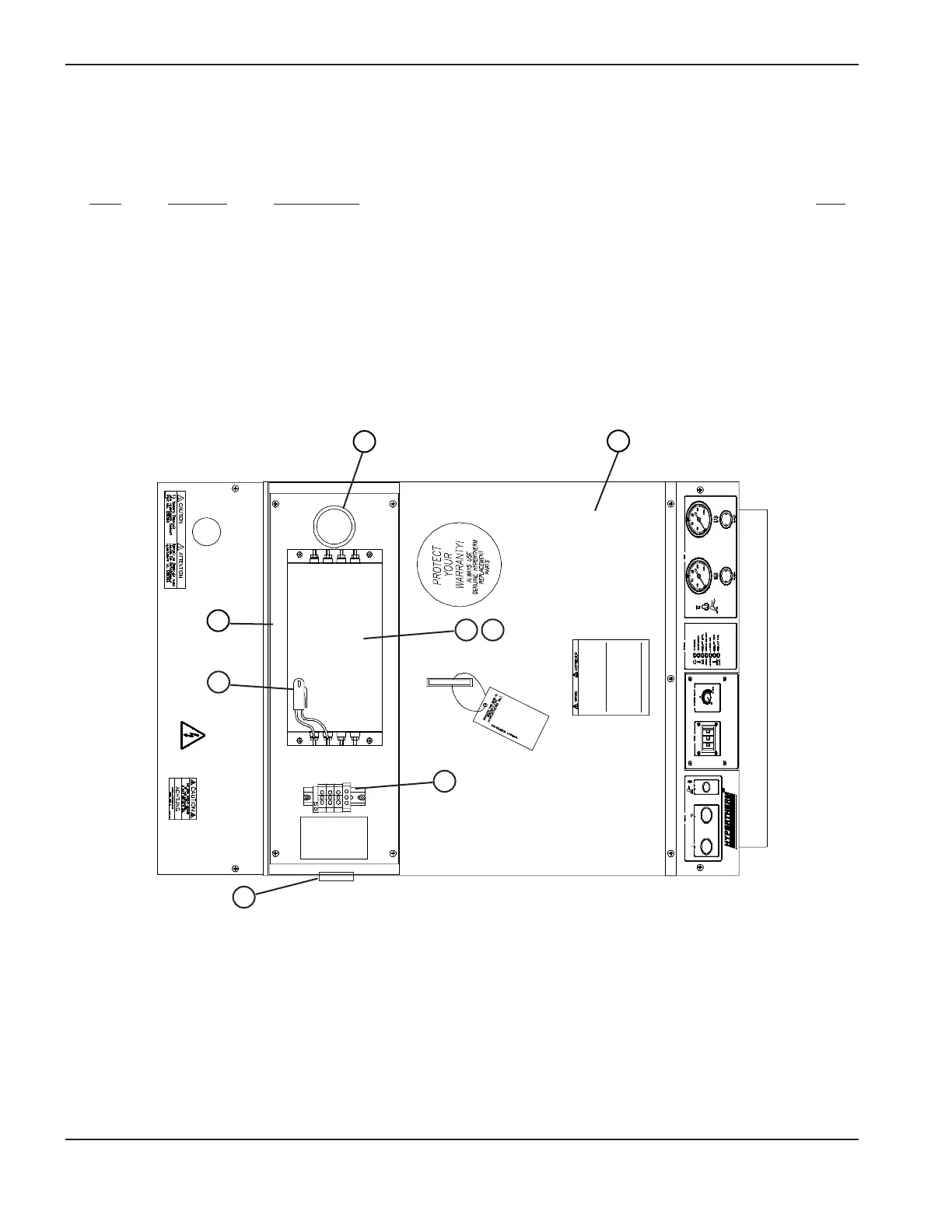

Figure e-4 MAX200 EMI Filter Parts
3
1
8
5
4
2
6
7
