MAX200 Instruction Manual 2-5
SPECIFICATIONS
PAC200T (90°) Cutting Trigger Torch – #073190*
Specifications:
Maximum cutting thickness range........................2" (51 mm)
Maximum current at 100% duty cycle ..................200 amps
Plasma Gas Flow at 200 amps ............................Air: 66 scfh
N
2
: 60 scfh
H35: 70 scfh
O
2
: 72 scfh
Shield Gas Flow at 200 amps ..............................CO
2
: 220 scfh
Air: 280 scfh
N
2
: 290 scfh
Coolant Flow Rate................................................0.8 gpm (3 lpm)
Weight (without leads)..........................................2.5 pounds (1.1 kg)
* Note: This number is for torch only (without leads). See Parts List section for torch assembly with leads.

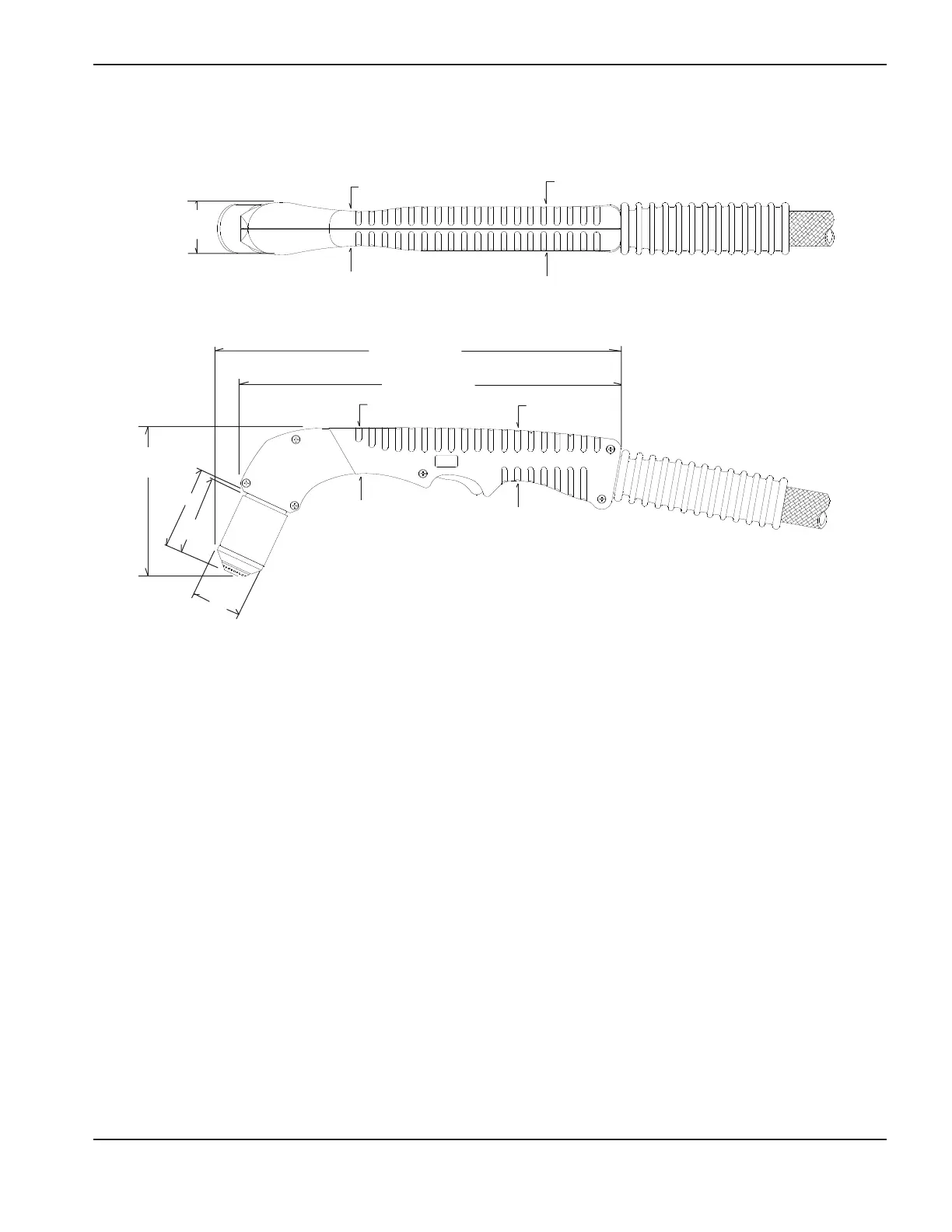

1.14 (29 mm)
1.45 (37 mm)
1.52 (37 mm)
1.68 (43 mm)
4.94
(125 mm)
2.62
(67 mm)
2.50
(64 mm)
1.61
(41 mm)
12.56 (319 mm)
13.34 (339 mm)
1.74
(44 mm)
To Next Page
