PAC200T/E Safety Trigger Operation
The PAC200T/E safety trigger torch allows operators the ability to safely handle the torch before and after the cut
and to minimize the possibility of accidental torch firing. The safety trigger is easy to operate. Follow the steps
below:

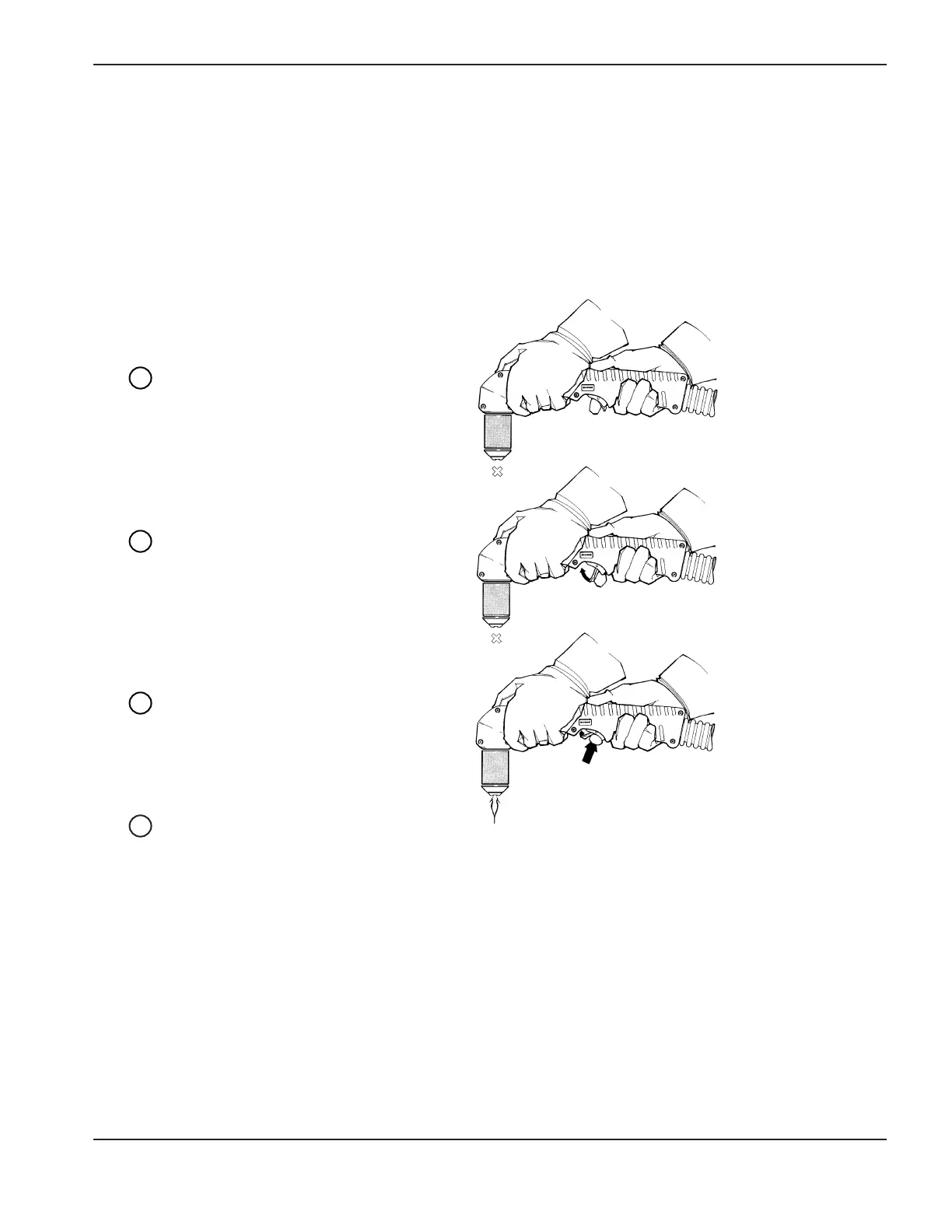

Figure 4-4 PAC200T/E Torch Safety Trigger Operation
Safety On position. In this position
the trigger cannot be pulled back,
so that the torch cannot be
accidentally fired.
Safety Off position. In this position
the trigger can be pulled back, so
that the torch can be fired.
Start pushing the safety forward.
Do not pullback on the trigger now,
wait until the safety reaches the
Safety Off position as shown in step 3.
Release the safety to return to the
Safety On position as shown in step 1.
1
2
3
4
