PARTS LIST
015193 Cap:#6 Brass 1
220021 Electrode:MAX200 Air/Oxy 5
020415 Electrode:MAX200 N2/H35 5
020918 Shield:PAC200T Hand Torch 200A 5
020604 Swirl Ring:MAX200 Oxy 1
020605 Nozzle:MAX200 .082 200A Oxy 5
020607 Swirl Ring:MAX200 Air/N2/H35 1
020608 Nozzle:MX200 .086 200A Air/N2 5
027055 Lubricant:Silicone 1/4-Oz Tube 1
027194 Nozzle Wrench:MAX200/HT2000 1
044027 O-Ring:BUNA 70DURO 1.301X.070 2
027347 Tool:Water Tube Replacement 1

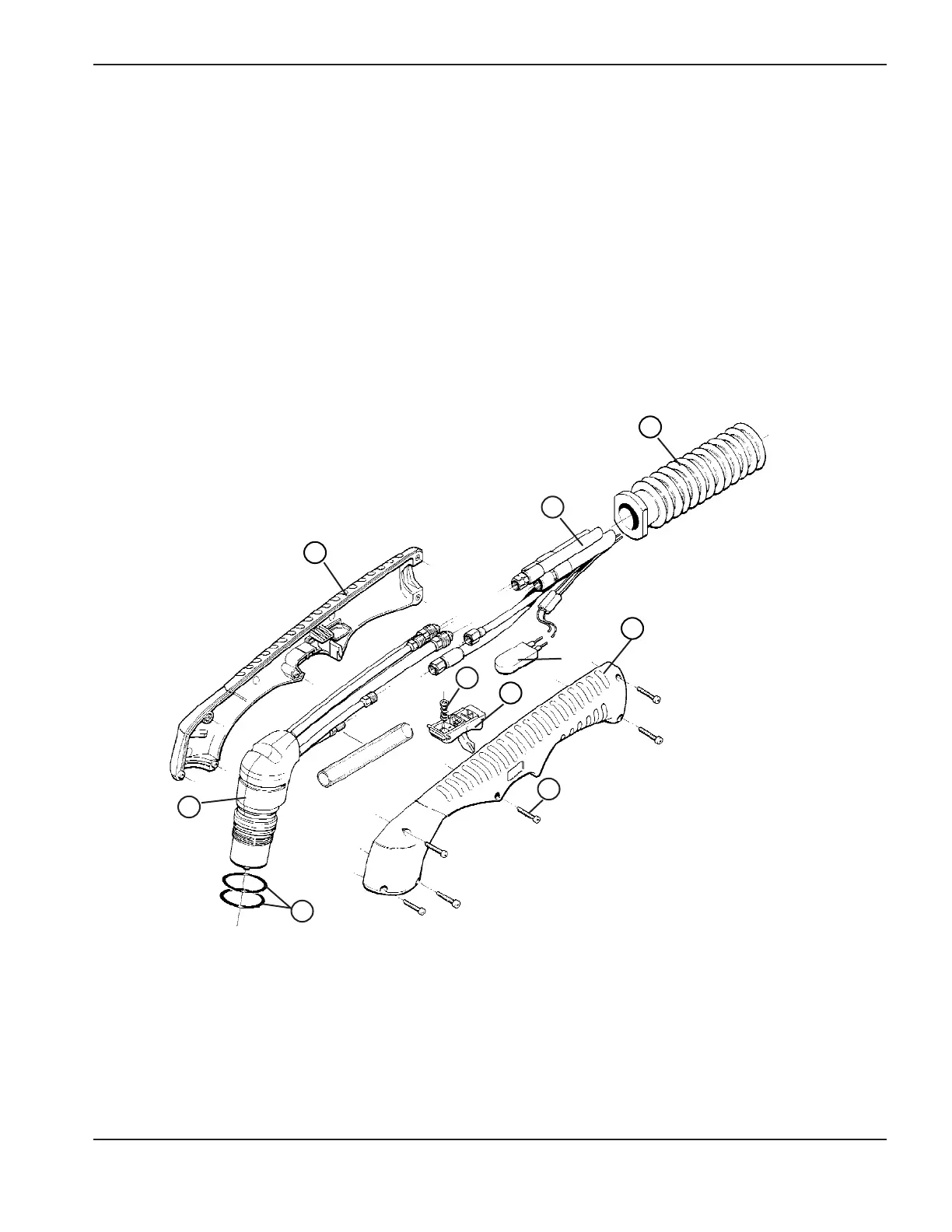

Figure 6-10 PAC200T (90°) Cutting Trigger Torch Assembly
†
† See page 6-24 for detail of torch leads.
†
2
8
3
5
6
4
1
7
2
