PARTS LIST
Trigger Torch 25 – Foot Lead Assembly (Torch to Extension Box)
Item Part Number
Description Qty
029866 Leads SA:PAC200T/E Torch-Ext. Box 25' 1
1 024376 Hose:200T/E Cap Sensor Torch/Box 1
2 024379 Hose Assy:3/16 Red LH'A' 25'1" 1
3 023714 Cable: 200T/E Water Cooled Blue 1
4 023716 Cable: 200T/E Water Cooled Red 1
5 023717 Cable: 200T/E Shield Gas Torch/Box 1
6 047203 Cable, 16-1 Pair 1
7 005094 Push Button Switch: Torch 1
– 074069 Splice 2
8 024197 Sheath: MAX200 Hand Torch Leads 25' 1
9 015036 UN: Right Hand 'A' Male Brass 2
10 015049 UN: AC'A' Male Brass 1
11 015208 Adapter: #5 Male X #5 Male Brass 2
12 074067 Term 22-18 .25 Male QC Insul 3
1
9
11
2
10
9
3
4
7
12
8
5
6
Grey
Red
Blue w/Green
Red w/Red
Grey

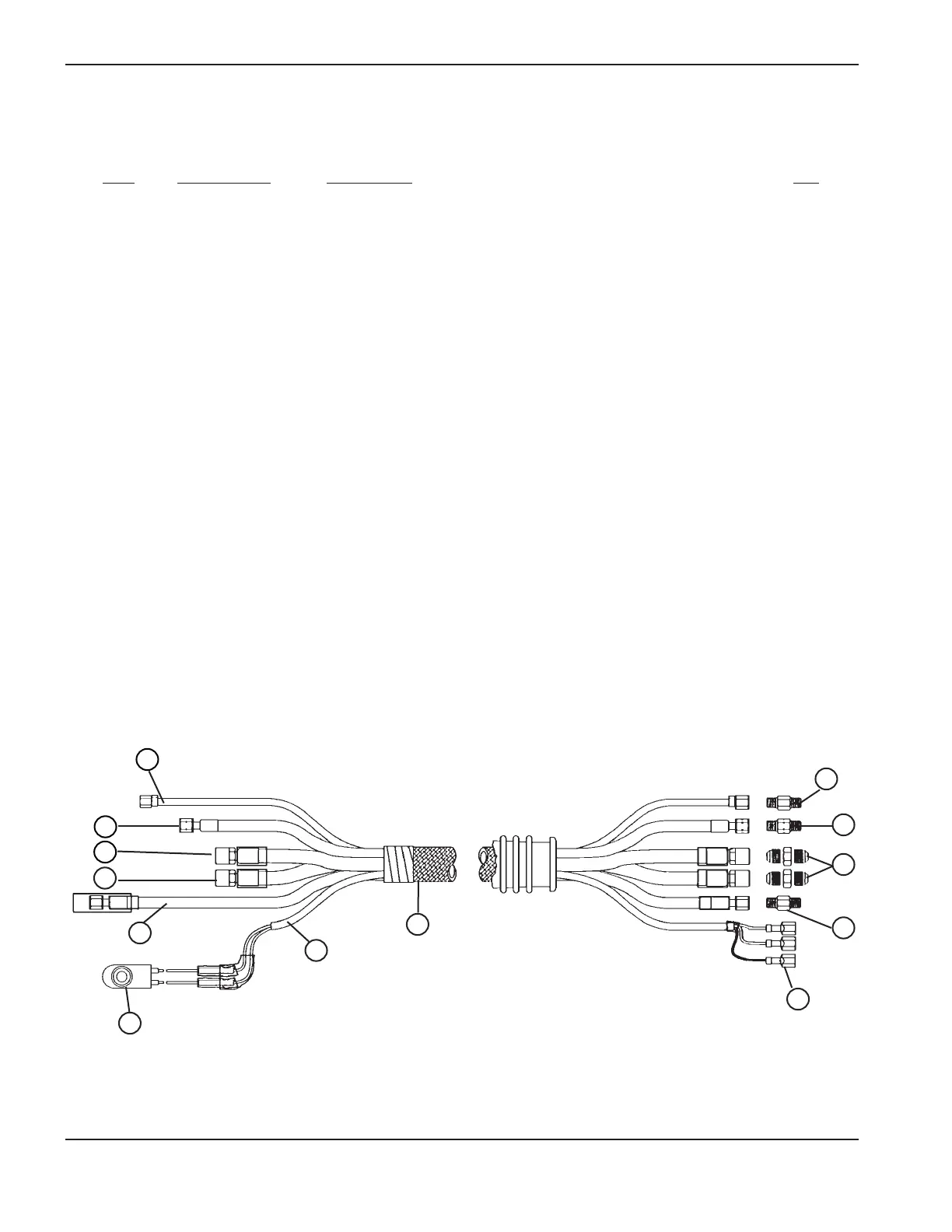

Figure 6-13 #029866 – Leads SA:PAC200T/E Torch to Extension Box – 25'
