6-30 MAX200 Instruction Manual

2-99

PARTS LIST

MAX200 Rev 1 Hand Torch Lead Assembly Parts

Item Part Number

Description Qty

029309 Hand Torch Lead, 25 Ft. 1

1 023326 Lead Pilot, Shield Gas, 25 Ft. (blue) 1

2 024194 Lead, Plasma Gas, 25 Ft. (red) 1

3 024192 Lead, Cap Sensor, 25 Ft. (gray) 1

4 023324 Cable, Water Cooled, 25 Ft. 1

(blue- red band)

5 023324 Cable, Water Cooled, 25 Ft. 1

(blue- green band)

6 047032 Cable, Switch, 26 Ft. 1

7 020536 Lead Insulator, 9/16" ID x 2-1/2" 1

8 046026 Tubing, 1-1/2" ID Shrink Black 2

9 024197 Sheath, 25 Ft. 1

029310 Hand Torch Lead, 50 Ft. 1

1 023327 Lead Pilot, Shield Gas, 50 Ft. (blue) 1

2 024195 Lead, Plasma Gas, 50 Ft. (red) 1

3 024193 Lead, Cap Sensor, 50 Ft. (gray) 1

4 023325 Cable, Water Cooled, 50 Ft. 1

(blue- red band)

5 023325 Cable, Water Cooled, 50 Ft. 1

(blue- green band)

6 047032 Cable, Switch, 51 Ft. 1

7 020536 Lead Insulator, 9/16" ID x 2-1/2" 1

8 046026 Tubing, 1-1/2" ID Shrink Black 2

9 024198 Sheath, 50 Ft. 1

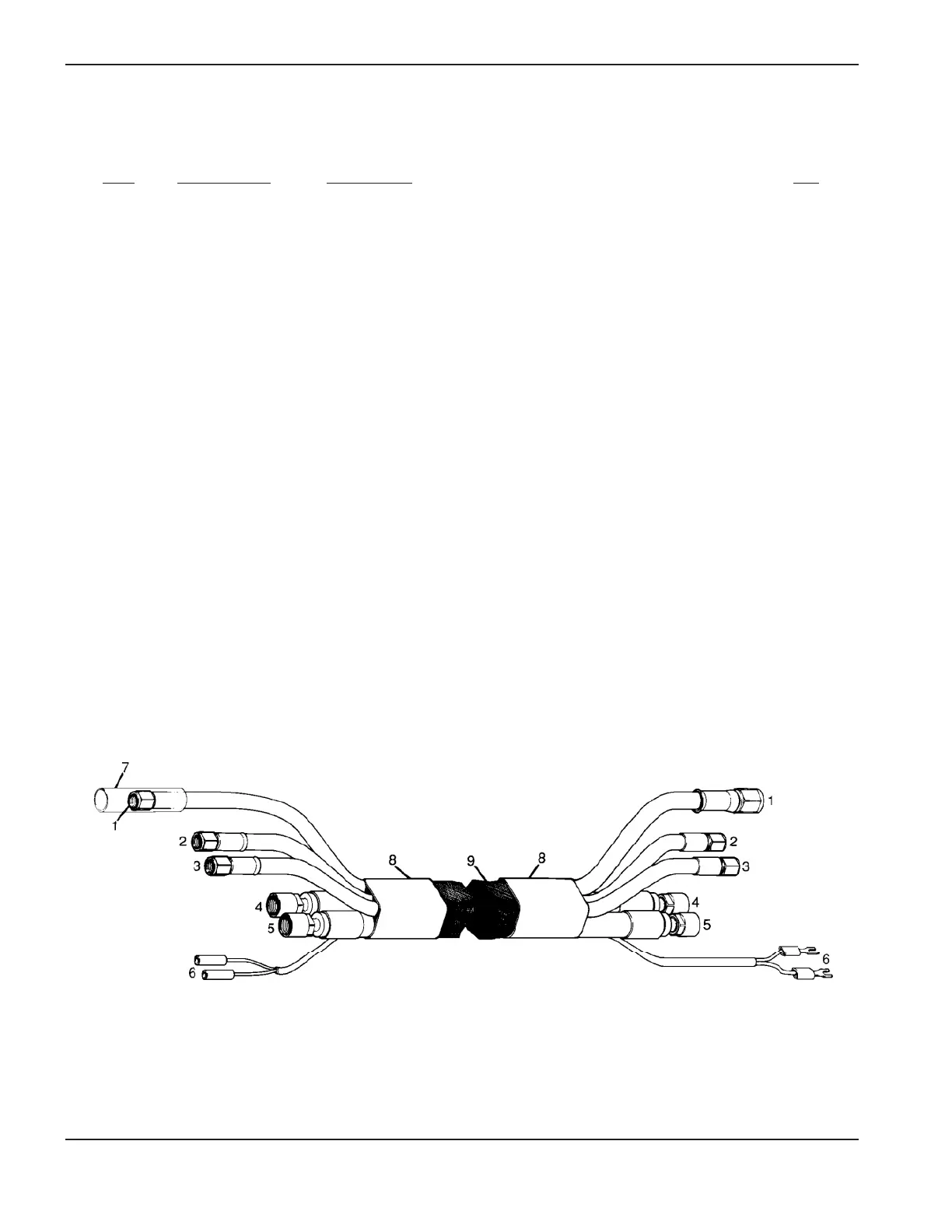

Figure 6-15 Hand Torch Lead Assemblies
