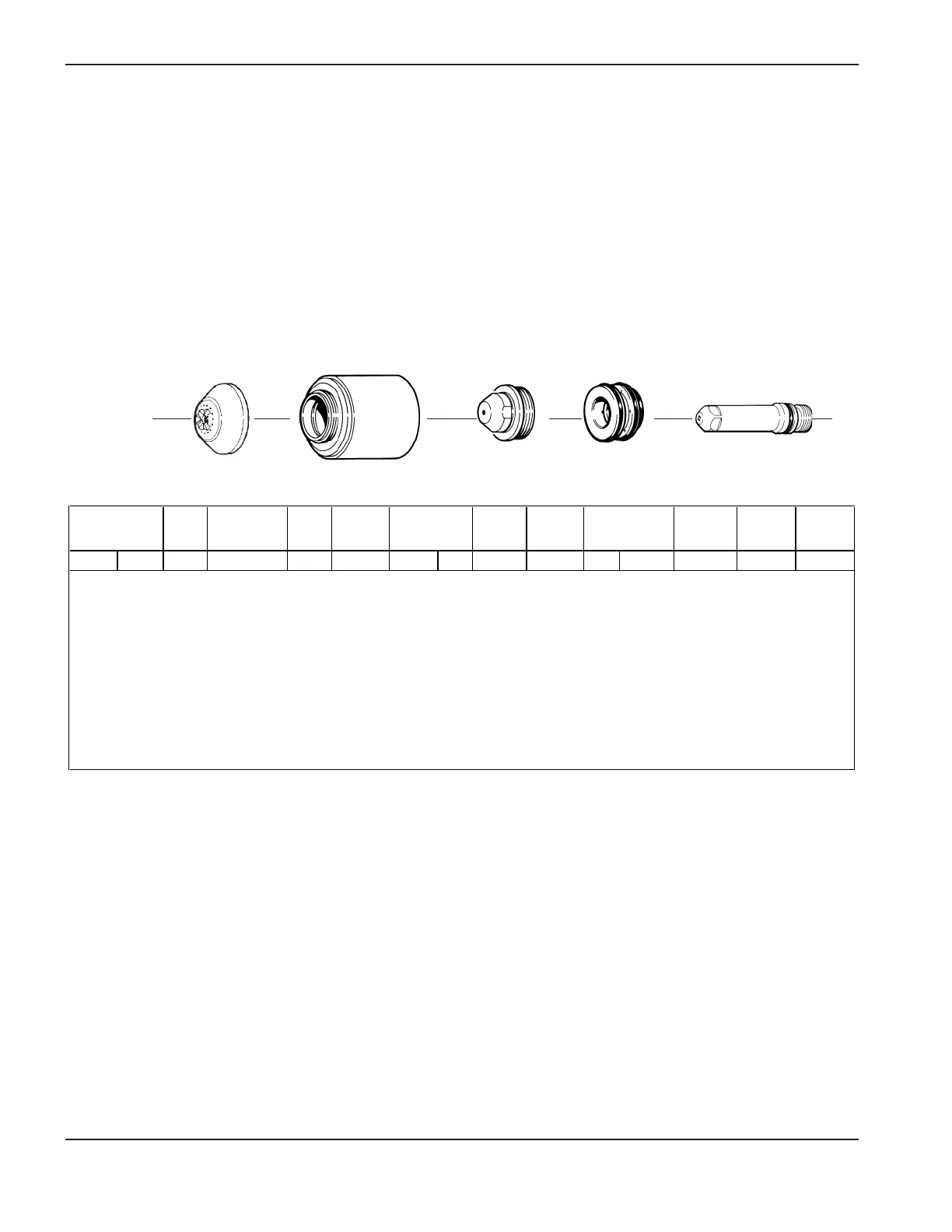

4-32 MAX200 Instruction Manual
15
OPERATION
PAC200T/PAC200E Hand Torch
Aluminum
200 amps
•
Air Plasma / Air Shield
This gas combination gives good cut speed, low dross levels and is very economical.
Piercing above 7/8 inch (22 mm) not recommended.
* If leads are greater than 50 feet, increase TEST pressure 5 psi for every extra 50 feet of torch lead length.
Plasma
Gas
Type
Plasma Gas
Pressure
TEST/RUN
Shield
Gas
Type
Shield
Gas
Pressure
Arc
Current
Setting
Arc
Voltage
Setting
Approx.
Motion
Delay Time
Plasma
Gas Inlet
Pressure
Shield
Gas Inlet
Pressure
(Inches) (mm) (psi) (psi) (Inches) (mm) (amps) (volts) (ipm) (mm/min) (sec) (psi) (psi)
3/16 5 Air 44-48* / 58-62 Air 70 1/8 3 200 130 220 5600 0.5 90 90
1/4 6 1/8 3 140 190 4800 1.0
3/8 10 1/8 3 140 145 3700 2.0
1/2 12 1/8 3 145 110 2800 2.5
5/8 15 .157 4 150 85 2200 2.5
3/4 20 3/16 5 155 65 1650 2.5
7/8 22 1/4 6 160 50 1300 2.5
1 25 1/4 6 165 35 900
1-1/4 32 1/4 6 170 20 500
1-1/2 38 1/4 6 175 12 300
Material
Thickness
Torch-to-work
Distance
Travel Speed
(66 SCFH) (280 SCFH)
020918
Shield
020608
Nozzle
020915
Retaining cap
220021
Electrode
020607
Swirl ring
