MAXPRO200 Instruction Manual 807700 Revision 1 49
Installation
Torch lead connections

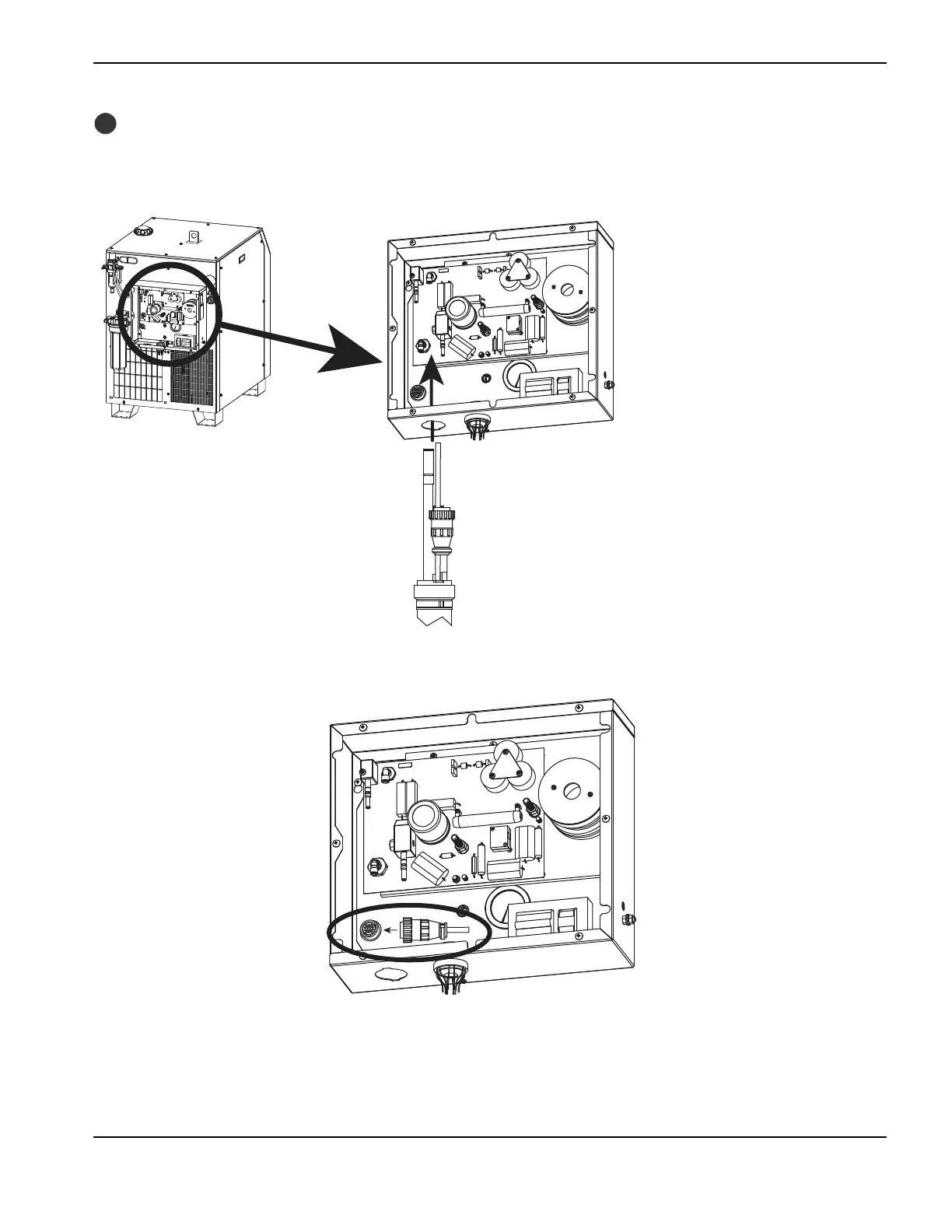

1. Insert the end of the torch lead through the opening of the ignition enclosure as shown below. Secure the collar on
the torch lead to the ignition enclosure by aligning the tabs on the collar with the corresponding openings in the
ignition enclosure, rotate the collar until it stops, and verify that the collar will not detach when released.
2. Connect the CPC connector to the CPC receptacle.
