Hypertherm Powermax65 SYNC Reference Guide

Serial Communication Programmer Reference Guide
Powermax65/85/105 SYNC Reference Guide 810400 7
Getting started
The Powermax65/85/105 SYNC plasma power supply supports serial communication with an
external control using the Modbus serial communication protocol.
This guide is for the programmer who will use Modbus protocols and messages for communication
between the Powermax65/85/105 SYNC and an external control such as a CNC or torch height
control (THC). It lists the supported Modbus function codes and the Powermax65/85/105 SYNC
register and coil addresses with which those function codes can be used. It also describes how to
construct the messages for the Powermax65/85/105 SYNC.
For more information about the Modbus protocol, refer to modbus.org
.
Hardware requirements
Using a Powermax65/85/105 SYNC plasma power supply in a
mechanized system requires all of the following hardware.
SmartSYNC machine torch with torch lead and Hypertherm
cartridges.
 RS-485 serial interface connector, board, and cables.
This hardware provides access to cut mode, amperage,
gas pressure, and more.
 Machine interface receptacle, voltage divider board,
and cables. This hardware provides access to the divided
arc voltage, plasma start/stop, and arc transfer signals.
If this hardware was not included with your system, you must order
and install the hardware. Refer to the Powermax65/85/105 SYNC
Parts Guide (810490).

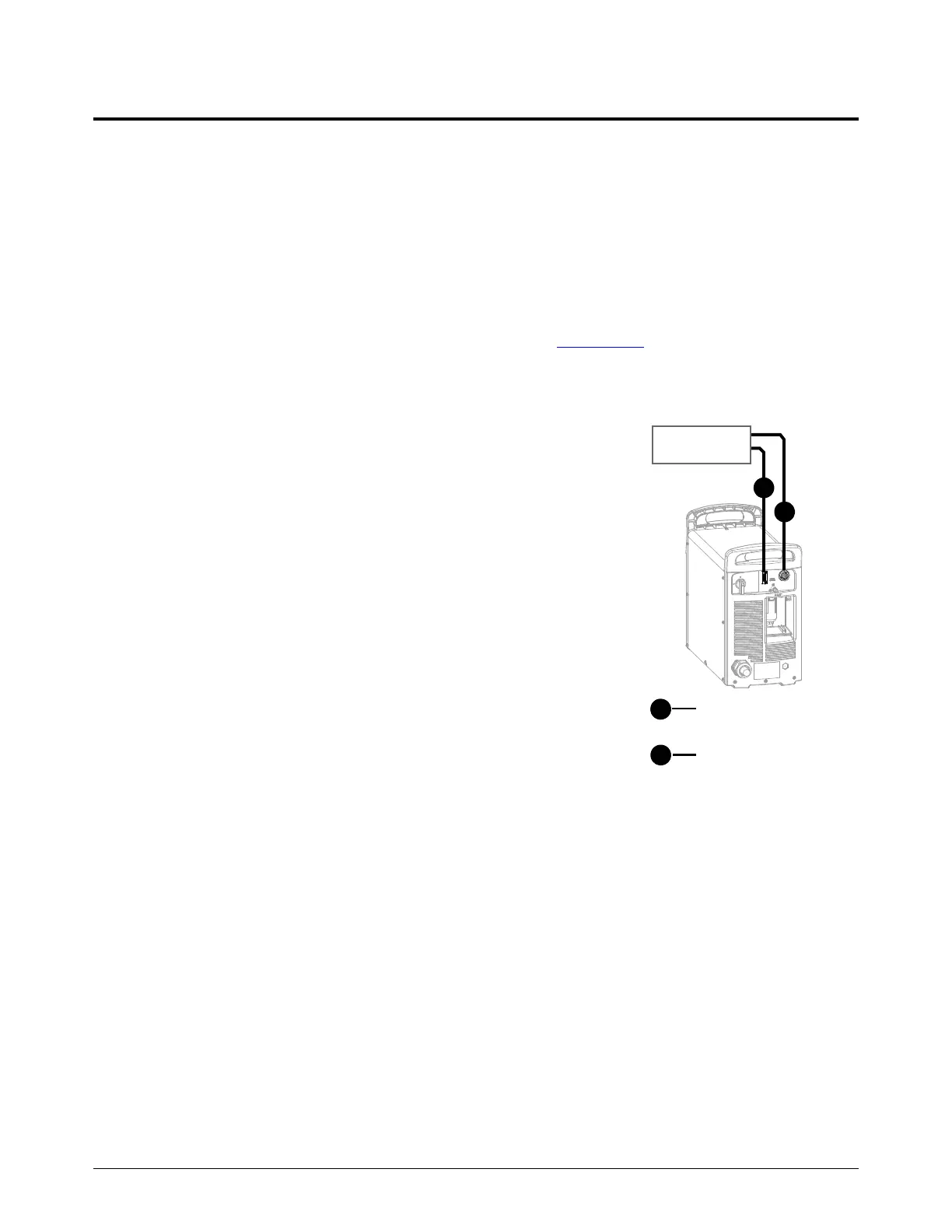

2
CNC / THC
Machine interface cable
RS-485 serial interface
cable
1
1
2
1
