Loop Layout: One Lane, Bi- or Single-Directional
BB
Road Edge
Road Edge
C
F
PEDESTRIAN GATE & WALKWAY
SECURITY SLIDE GATE
B
C
E
A
ENTER EXIT
ACCESS CONTROL

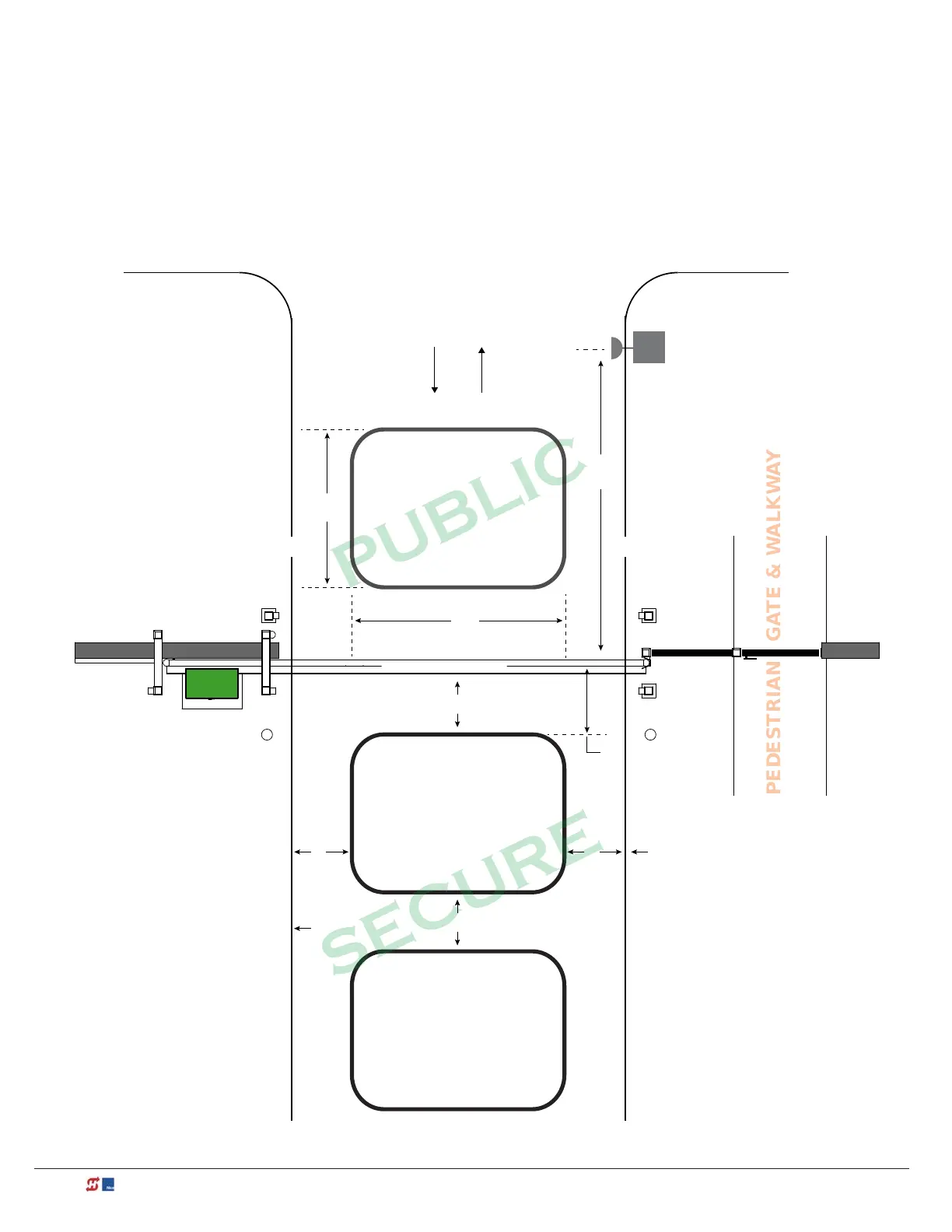

This slide gate site scenario
depicts a bi-directional traffic
system with controlled access
entry (card reader, radio control,
etc.) and free exit gate.
The gate’s closure time is
determined by the number of
seconds entered in the CLOSE
TIMER item found in the User
Menu. The timing to close starts
when all loops are clear.
The timer is adjustable from 1 to
99 seconds.
For a single directional system,
the free exit loop is replaced by
an obstruction loop (reversing
loop).
Vehicles must pass from one loop to the next without loss of detection.
Dimension “A” = 6 to 20 ft (183 to 610 cm)
Dimension “B” = 6 to 8 ft (183 to 244 cm)
Dimension “C” = Maintain 4 ft (122 cm)
Dimension “D” = Maintain 3 to 4 ft (91 to 122 cm) between loop and edge of roadway.
Dimension “E” = 4 ft maximum (122 cm)
Dimension “F” = Distance from gate to acess control device 10 ft (3 m). Minimum 6ft (183 cm)
NOTE: A minimum of three (3) detectors are required for this type of gate site scenario.
V-track gate shown; other gate types similiar.
