www.hysecurity.com © 2019 Photo Eye Installation MX3630-01 Rev. J 101
Photo Eye Alignment Feature
Most photo eyes require careful optical alignment in order to aim the emitter beam to the center of the
receiver or reector. In order to avoid false triggering, it is important to carefully align the system.
Align the photo eyes using this feature by taking the following steps:
1. Access the User Menu and select PE.
To access the User Menu, press the Menu button twice. For a refresher
on using the Menu Mode navigational buttons, refer to the chart below.
2. Press NEXT and continue to press NEXT until PE 0 (OFF) appears.
3. Press SELECT.
PE characters begin blinking.
4. To turn ON photo eye alignment and temporarily power the sensors,
press NEXT so PE 1 (ON) appears.
5. Press SELECT.
PE stops blinking.
6. Move the photo eyes (up/down, side to side) to align the emitter beam.
Audible Chirp Beam Aligned ??
One No
Two Yes
7. When the buzzer chirps twice, indicating the photo eyes are aligned, set the next photo eye (if the site
has one) and continue the process until all photo eyes are aligned.
8. Press MENU to exit Menu Mode and return to Run Mode.
9. Move the gate with an open or close command. When a limit is triggered, the User Menu item PE
resets to zero (OFF).
NOTE: To cover the potential entrapment areas, mount photo eyes preferably within 5 inches (13 cm) of the gate face. See
Installation on page 97. To learn how to temporarily power external entrapment protection sensors using the PE User Menu item,
see Supply Power to the Sensors on page 43.

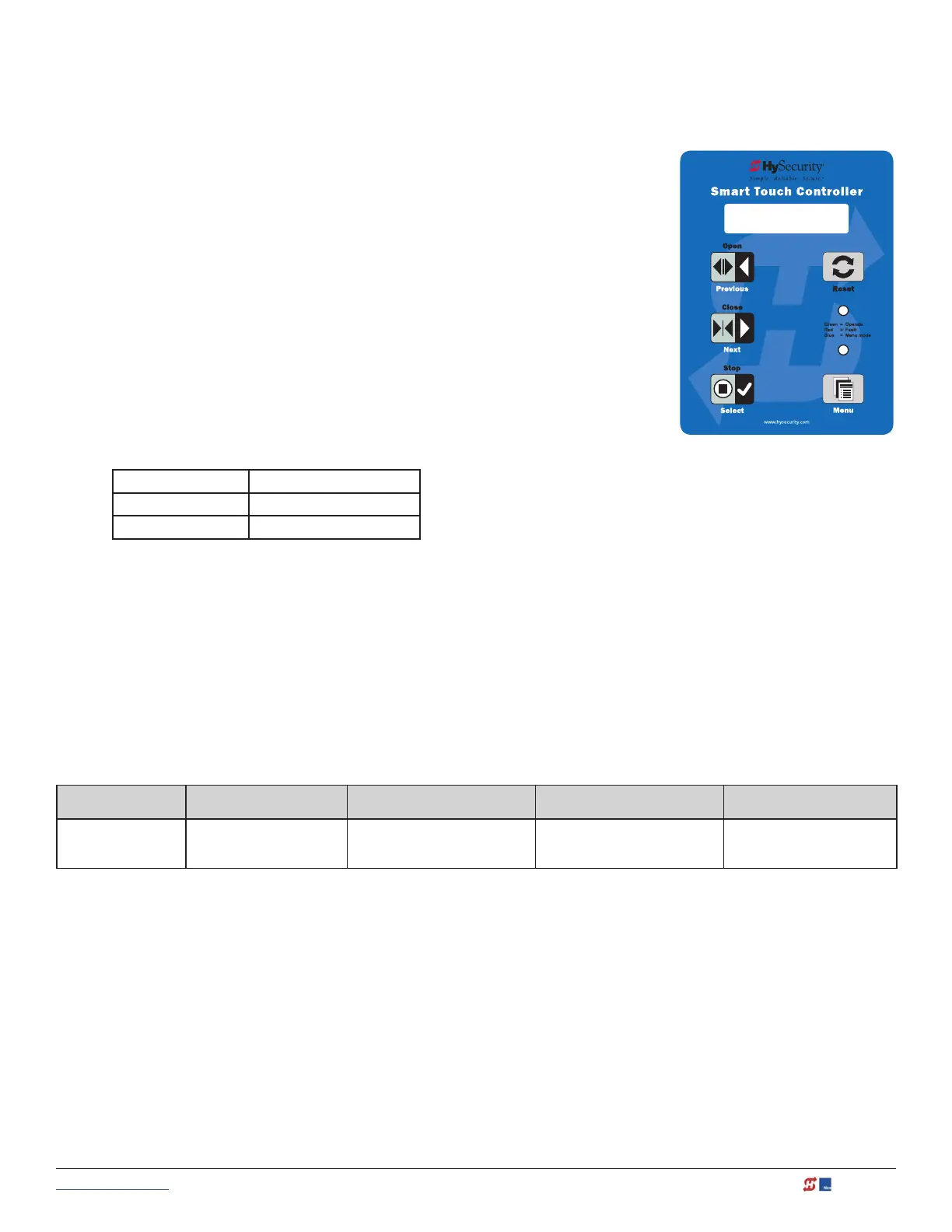

Smart Touch Controller: Menu Mode Navigation Buttons
To access
Menu mode
To change menu item
appearing in the display
To navigate through
the menu item selections
To choose what item appears
on the display
To navigate between
menu items
Press the Menu button
twice.
Press Select.
Two left characters blink.
Press Next or Previous.
Continue pressing Next to view all
selections.
Press Select.
Blinking characters
become static.
Press Next or Previous.
Advance - press Next
Previous - press Previous
PE 1 (ON)
PHOTO EYE ALIGN
