Installing a Push Button Device
for Emergency Fast Operate
(EFO)

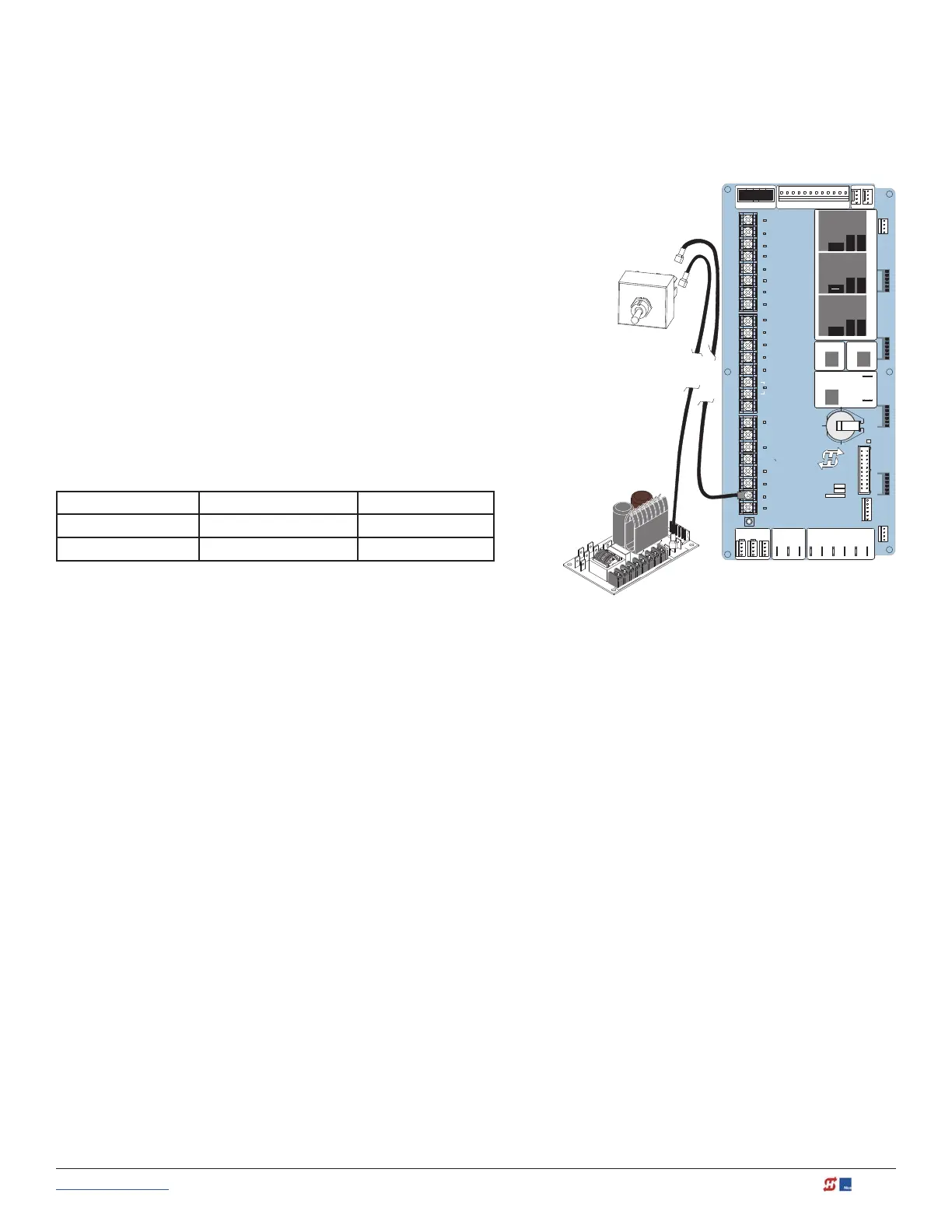

The Emergency Fast Close on the 50VF-series is designed for a
constant hold function, such as a push-button device that is
held for the duration of gate travel. To operate properly, the
device must be connected to Terminal 23 on the Smart Touch
Controller and a +24VDC terminal on the Power Supply Board.
When the connections are made, the constant hold signal
transmitted to the Smart Touch Controller activates the close
function. The gate closes at a higher speed than usual. Photo
eyes, vehicle loop inputs, and other safety devices (such as
external entrapment protection sensors) are ignored.
Emergency Fast Close Speeds
Operator Close Speed EFO Close
SlideDriver 50VF2 2.2 fps (26 in per sec) 3 fps (91 cm/s)
SlideDriver 50VF3 3 fps (91 cm/s) 3 fps (91 cm/s)
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR COM
DO NOT USE
DO NOT USE
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN S1+24V +24V
STAT US
LED
24V
A
C A
cce
ss
or
y powe
r
+
24V
D
C
Power Connector
Power Supply Board
C
O
MM
ON
Emergency Fast
Close Device
(Actuator)
SENSOR COM
SENSOR 2
SENSOR 3
