www.hysecurity.com © 2019 STC Inputs & Wiring MX3630-01 Rev. J 69

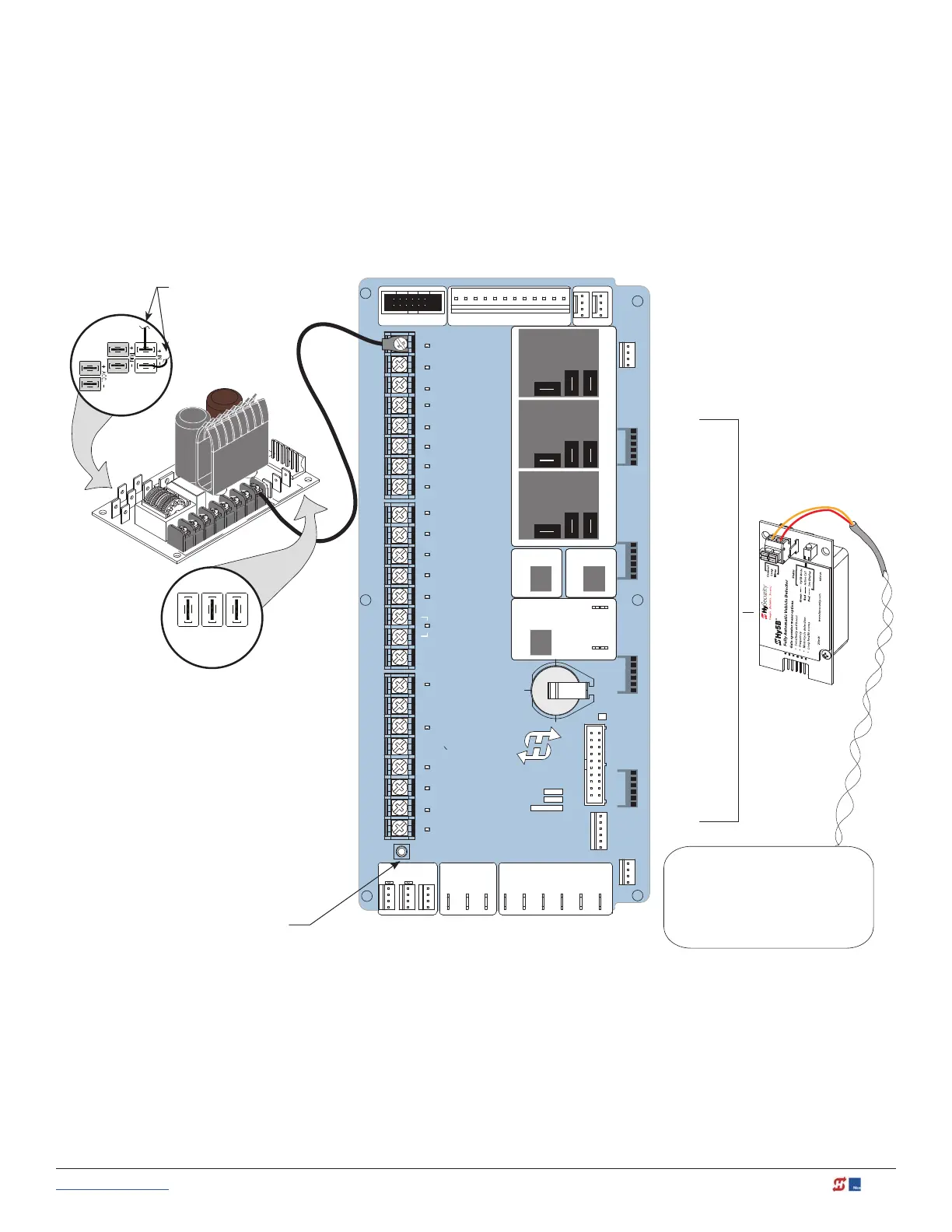

Overview of the STC and Power Supply Board
The Smart Touch Controller uses LED’s to indicate active inputs when AC power is present. For operators that
use only DC power, you can push a Tact push button to show the active inputs. This Tact push button is at the
bottom left corner beneath the #24 terminal input.
On a new operator, no active inputs should appear until external accessories and wiring are attached. If any
inputs are active before connecting external wiring, refer to Troubleshooting on page 105.
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE
EXIT
INSIDE
OBSTR
OUTSIDE
OBSTR
SHADOW
RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN
S 1
+24V +24V
STAT US
LED
24V AC Acce
s
sory power
+
24V D
C
Power Connector
Power Supply
Board
FREE EXIT
INSIDE LOOP
OUTSIDE LOOP
SHADOW
RESET
CENTER LOOP
LOOP
Not to Scale
COMMON
Smart Touch Controller
Amp Draw on Power Supplies
Two power supplies are available:
24VDC and 24VAC
A maximum draw of 3A is allowable when
utilizing both power supply connections:
2 terminals 24VAC power or 24VDC on
3 terminals. Any combination of the 5
available terminals can be used to draw
the 3A maximum.
+ 24VAC
+ 24VDC
Connections to VFD
Tact button
To Next Page
