1-15
Scanner Assembly
032-0330-EN Rev K
4.
4

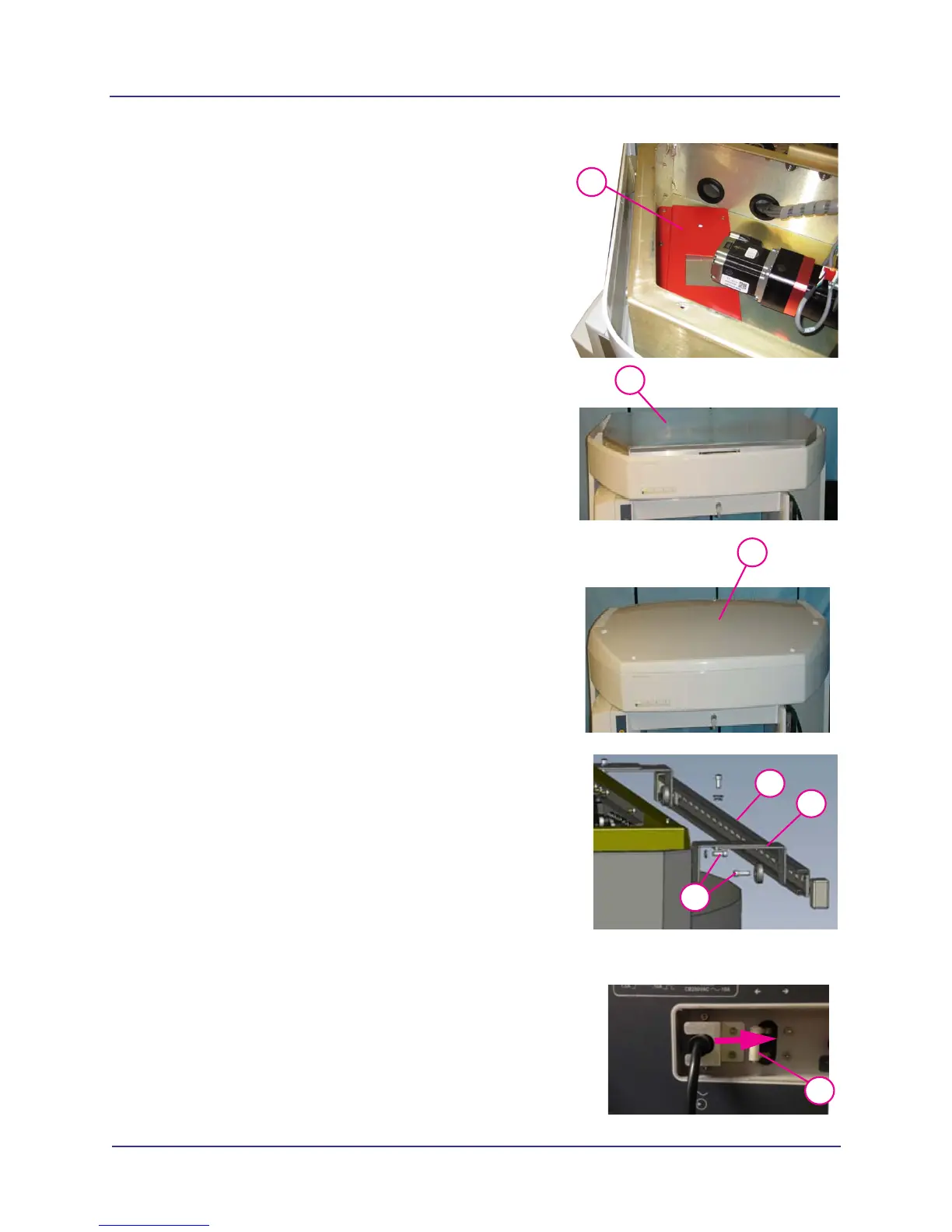

Store red shipping bracket in overhead.
5.
5
Replace shielding cover.
6.
3/32
6
Replace top cover (6 screws).
7.
7
9
9
Install mounting bar on wall, centered behind the
scanner. The height should be approximately 66 ½
to 68 inches [169 to 173 cm] from the floor to the
center of the mounting bar. However, this may vary,
so you may want to put the “L” brackets on scanner
and mark the wall to verify the height.
8. Use 3 wall anchors/screws to mount the bar securely
to the wall. The type and length of mounting
hardware must be suitable for the wall to which the
unit is fixed. The installer is responsible for obtaining
the proper mounting hardware.
9. Attach brackets to the scanner and mounting bar.
10.
10
Switch the power circuit breaker located on the
overhead rear panel to l (on).
To Next Page
