2-12
i-CAT FLX Installation Manual
032-0330-EN Rev K
Run Shutter Calibration
1. From Utilities menu, select ShutterCal.
2. Ensure the field of view on the scanner is clear.
3. Press . The scanner initializes.
4. When prompted, press the Scan button on the operator control box. An audible alarm is
sounded and the X-ray ON light is illuminated during radiation exposure.
5. You will be prompted to press the Scan button for each test.
NOTE: The panel will rotate to the portrait position at the start of the portrait tests (V17 systems
only).
6. When Shutter Cal is complete, Calibration Complete is displayed. Thumbnail images of each
Shutter Cal test are available to view.
NOTE: If Shutter Cal fails, re-run Panel Cal, then re-run Shutter Cal, if prompted. Otherwise, check
that the field of view is clear of all objects and that there are no obstacles to the rotation of the gantry.
Re-run Shutter Cal.
7. If desired, select a thumbnail to view.
8. Press to display Complete screen and select option to go Back to Utility.

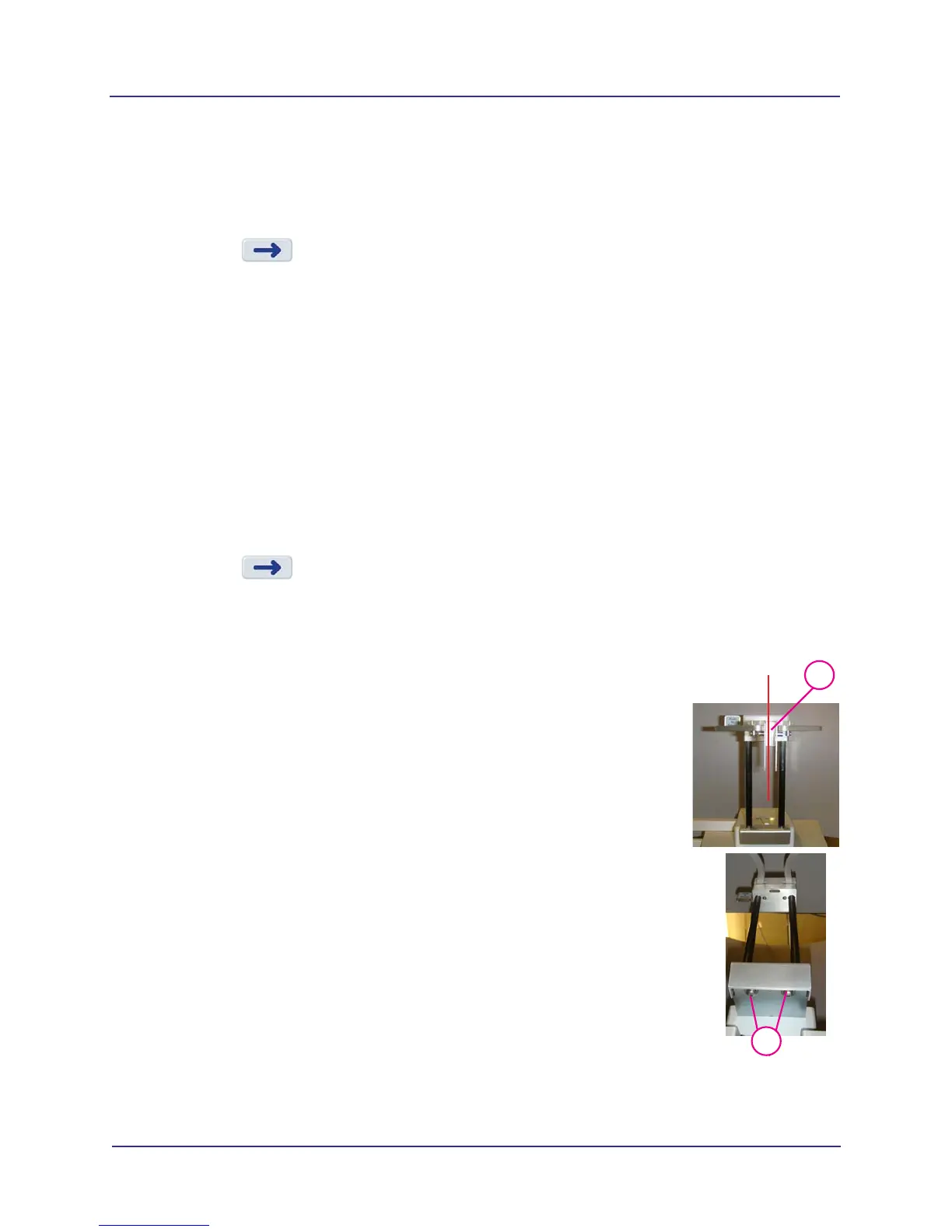

Head Holder Alignment
NOTE: Ensure that the Laser Alignments have been completed
before beginning this procedure.
1. If head support is installed, loosen locking knob and remove head
support.
2. Slide head holder into place.
3. Place the Position Alignment tool between the temple pads with the
alignment mark facing front.
4. Press the ALIGNMENT LIGHT button.
5.
5
Loosen screws underneath head holder with allen wrench (5/32)
and adjust the head holder so that the laser aligns with the alignment
mark.
6. When aligned, re-tighten screws.
7. Press the Push To Release lever to open arms and remove the
Position Alignment tool. Do not manually force arms open.
NOTE: Remove head holder and re-install head support.
3
LASER
LINE
To Next Page
