2-8
i-CAT FLX Installation Manual
032-0330-EN Rev K

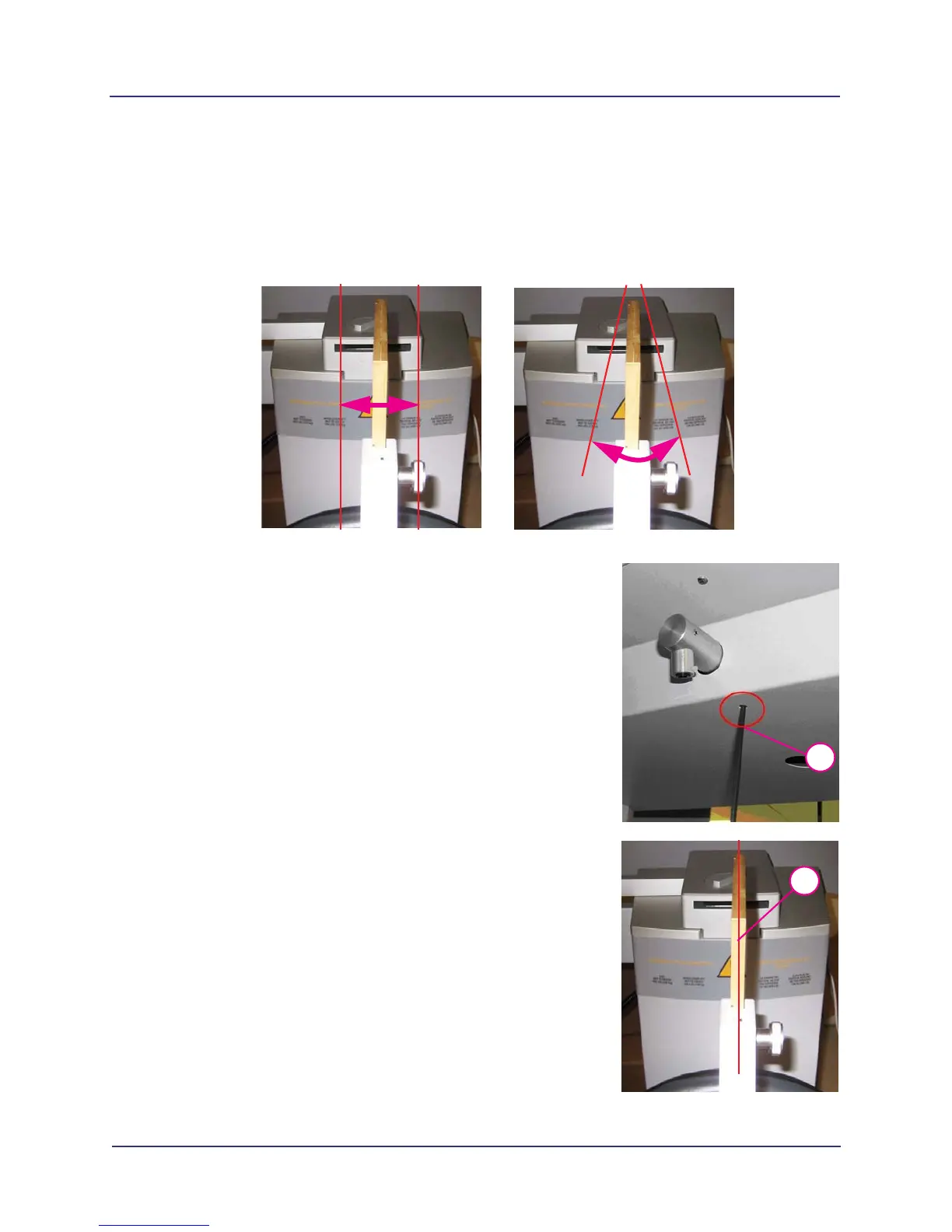

There are three laser adjustments:
• Right-to Left
• Angle
• Laser Line Sharpness
Right-to-Left Adjustment:
1. Loosen laser assembly set screw which allows the
assembly to rotate.
2. Press the ALIGNMENT LIGHT button.The laser lights for
approximately two minutes.
3.
3
While the laser is lit, manually rotate the laser assembly
until it is aligned with the center line on the chair
calibration fixture.
4. While holding the assembly in place, firmly tighten set
screw.
RIGHT-TO-LEFT
ANGLE
1
5/32
