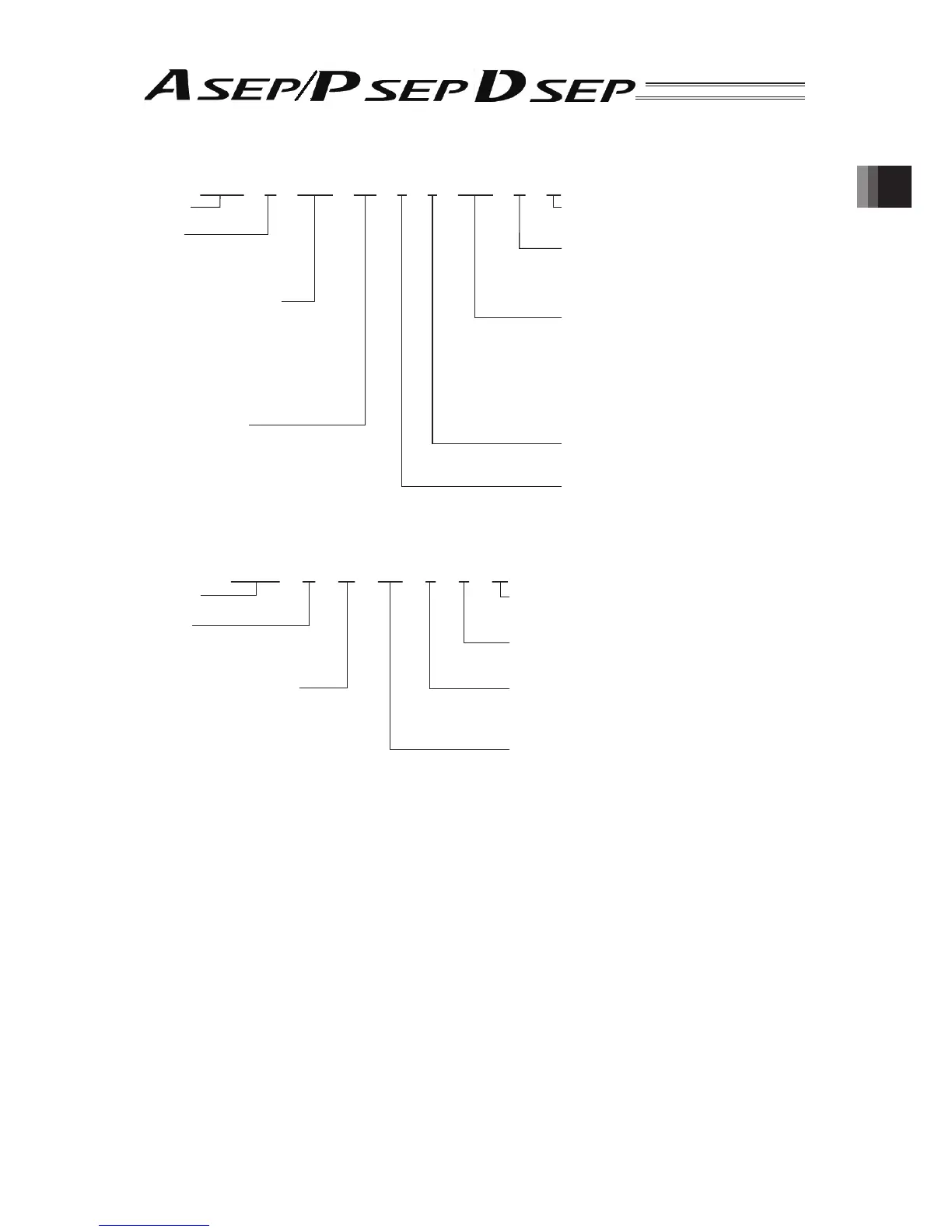

1. Specifi cations Check
<Detail of Connected Axis>
[Motor Type]
[Encoder Type]
I : Incremental
* It is not the absolute type.
<Identification for IAI use only>
* There is no identification in some cases.
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : No Cable 3 : 3m
2 : 2m 5 : 5m
<I/O Signal Pattern>
NP : NPN Specification
(Sync. Type) (Standard)
PN : PNP Specification
(Source Type)
3W:3
[DSEP]
<Series>
<Type>
C : Standard type
CW : Dust-proof type
DSEP – C – 3I – NP – 0 – 0 – **
<Identification for IAI use only>
* There is no identification in some cases.
<Option>
H
No description
<Applicable to Simplified Absolute Unit>
ABU
ABUN
No description
(Note) ABU and ABUN are the already existing
models, which do not comply with UL.
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : No Cable 3 : 3m
2:2m 5 :5m
: High Acceleration
Transportable Type
: Standard
: Simple Absolute Type
(with the Absolute Battery Unit)
:
Simple Absolute Type
(with no Absolute Battery Unit)
:
Incremental Type
<Detail of Connected Axis>
[Motor Type]
<Series>
<Type>
C : Standard Type
CW : Dust-proof type
(Equivalent to IP53)
20 □Size
28 □Size
28 □Size
(For RA3C)
:
:
:
35 □Size
42 □Size
56 □Size
:
:
:
35P
42P
56P
[Encoder Type]
I : Incremental
20P
28P
28SP
[PSEP]
<I/O Signal Pattern>
NP : NPN Specification
(Sync. Type) (Standard)
PN : PNP Specification
(Source Type)
PSEP – C – 20PI – NP – 0 – 0 – ABU – H – **
