IAI ASEP User Manual

50
/
3. Operation

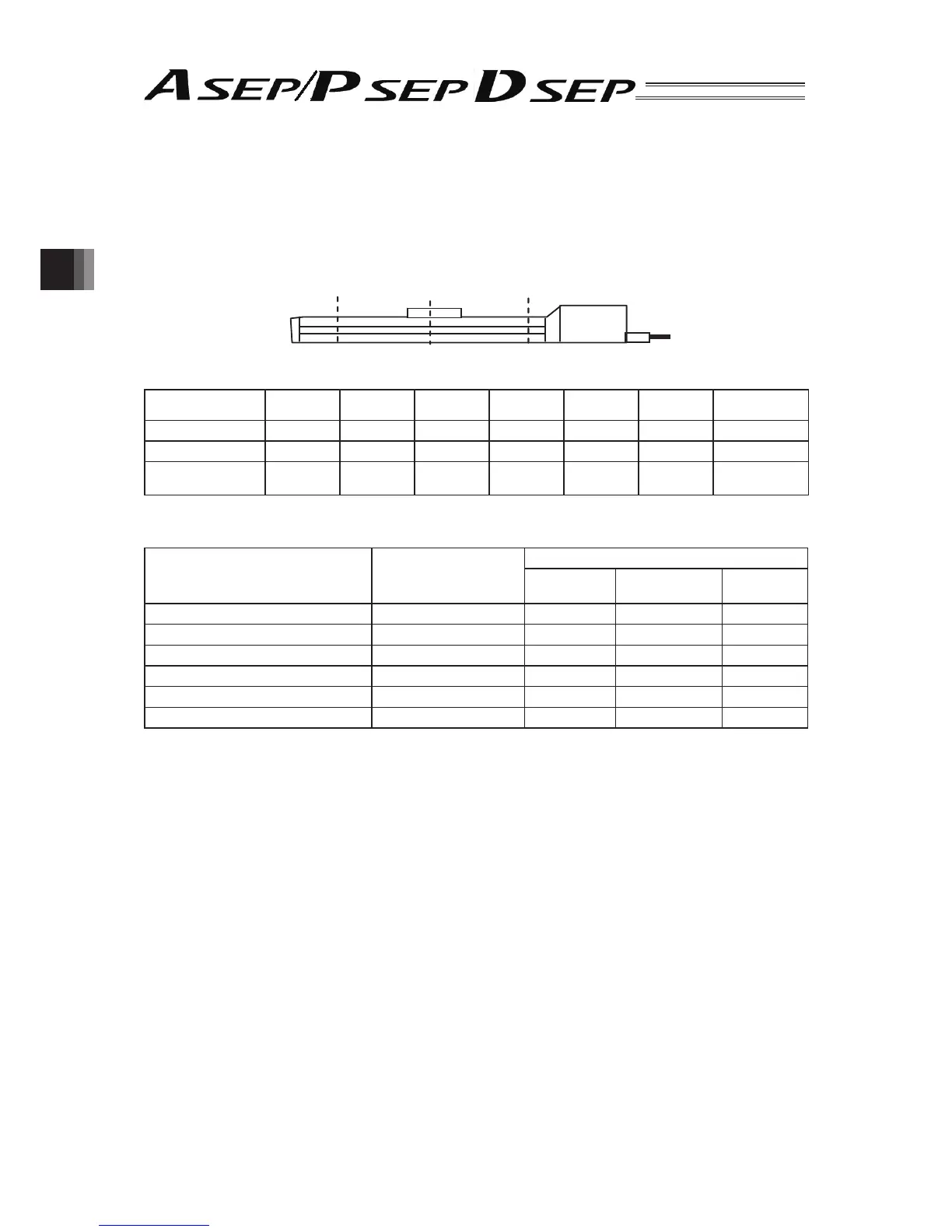

3.1.2 Position Data Setting
Set the following items in the position data editing window of the PC software menu or by selecting
“Position Setting” in the Touch Panel Teaching menu. [Refer to the PC Software or Touch Panel
Teaching Instruction Manual for the details]
Backward
Position
Intermediate
Position
Forward
Position
Motor
A
ctuator
Position Data
Position Data 1) Position 2) Velocity 3) Acceleration 4) Deceleration
5) Pressing
Force
6) Pressing
Band
7) Energy-Saving
Function
Forward Position 200.00 50.00 0.1 0.1 70 1.00 Effective
Backward Position 0.00 50.00 0.1 0.1 0 0 Effective
Intermediate
Position
100.00 50.00 0.1 0.1 0 0 Effective
1) Position … Set the position where the actuator is moved.
Setting Range : 0 to Actuator Stroke Range (Unit 0.01mm)
Operation Pattern Name
: PIO Pattern No.
Displacement
Set Position
Forward
Position
Backward
Position
Intermediate
Position
Standard Point-to-Point Movement :0 Point-to-Point Movement ○○
Movement Speed Setting :1 Point-to-Point Movement ○○
Target Position Setting Change :2 Point-to-Point Movement ○○
2-Input, 3-Point Movement :3 3-Point Movement ○○○
3-Input, 4-Point Movement :4 3-Point Movement ○○○
Continuous Reciprocating Operation :5 Point-to-Point Movement ○○
2) Velocity … Set the actuator speed.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : Actuator’s min. speed to Actuator’s max. speed
(Unit: 0.01mm/sec)
3) Acceleration … Set the actuator acceleration.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : 0.01 to Actuator’s rated Value Range (Unit: 0.1G)
4) Deceleration … Set the actuator deceleration.
[Refer to Appendix in this manual or the Instruction Manual for the actuator.]
Setting Range : 0.01 to Actuator’s rated Value Range (Unit: 0.1G)
