20
/
1. Specifi cations Check
1.1.3 Instruction manuals related to this product, which are contained in the
instruction manual (CD/DVD).
No Name Manual No.
1 ASEP/PSEP/DSEP Instruction Manual ME0267
2 PC Software RCM-101-MW/RCM-101-USB Instruction Manual ME0155
3 Touch Panel Teaching CON-PTA/PDA/PGA Instruction Manual ME0294
4
Teaching Pendant dedicated for SEP Controller (Touch Panel Teaching)
Instruction Manual
ME0217

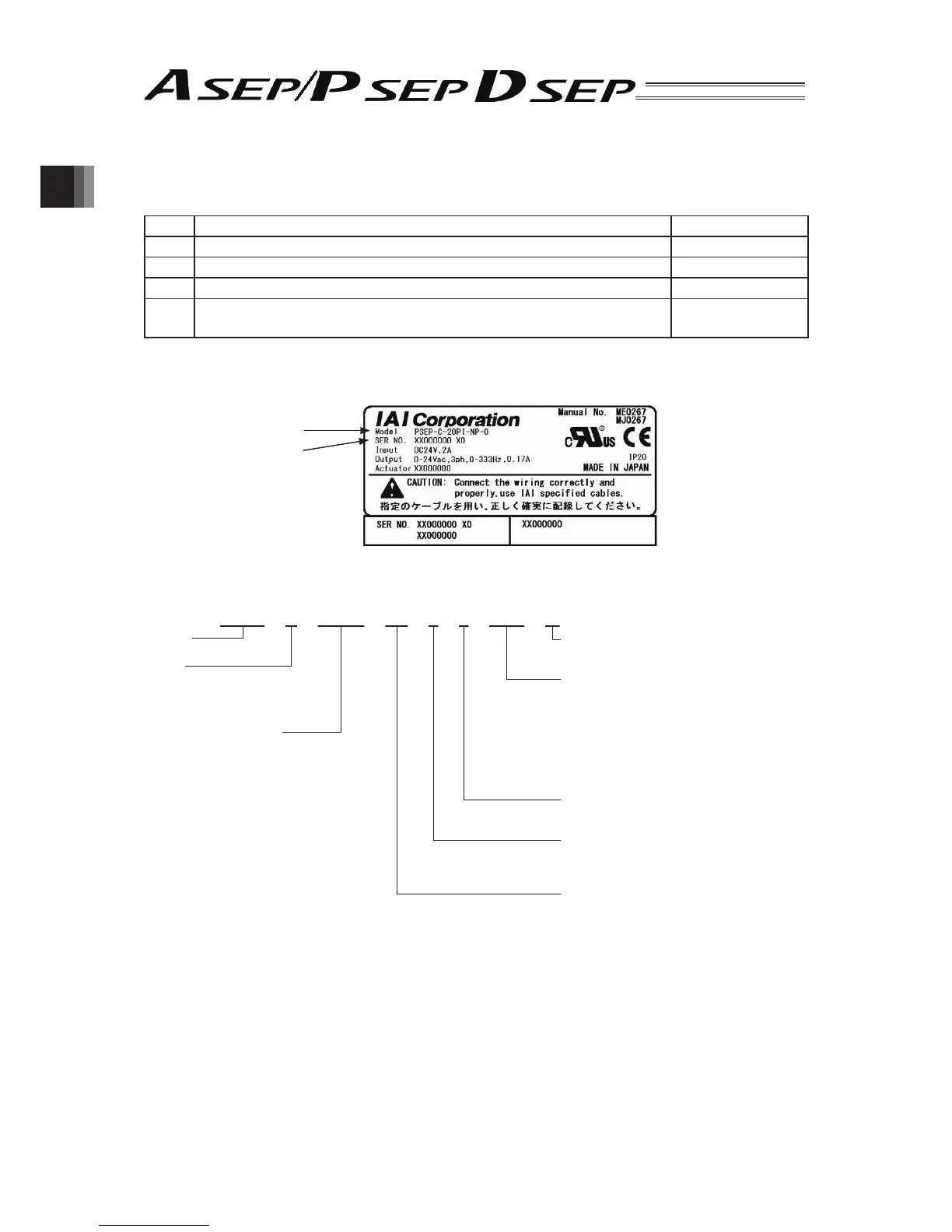

1.1.4 How to read the model plate
Model
Serial number
1.1.5 How to read the model of the controller
<Detail of Connected Axis>
[Motor Type]
<Identification for IAI use only>
* There is no identification in some cases.
<Applicable to Simplified Absolute Unit>
ABU
ABUN
No description
(Note) ABU and ABUN are the already existing
models, which do not comply with UL.
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : No Cable 3 : 3m
2:2m 5 :5m
<I/O Signal Pattern>
NP : NPN Specification
(Sync. Type) (Standard)
PN : PNP Specification
(Source Type)
:
Simple Absolute Type
(with the Absolute Battery Unit)
:
Simple Absolute Type
(with no Absolute Battery Unit)
:
Incremental Type
2W
5W
10W
20W
:
:
:
:
20W
(For RCA-R□3, SRA4, RCA2-SA4/TA5)
30W
:
:
20S
30
[Encoder Type]
I : Incremental
[Option]
LA : Power Consumption Type
HA : High Acceleration/Deceleration Type
2
5
10
20
[ASEP]
<Series>
<Type>
C : Standard type
CW : Dust-proof type
(Equivalent to IP53)
ASEP – C – 20ILA – NP – 0 – 0 – ABU – **
To Next Page
