2.7 Installation of high rigidity radial cylinder type
2-57
2. Installation

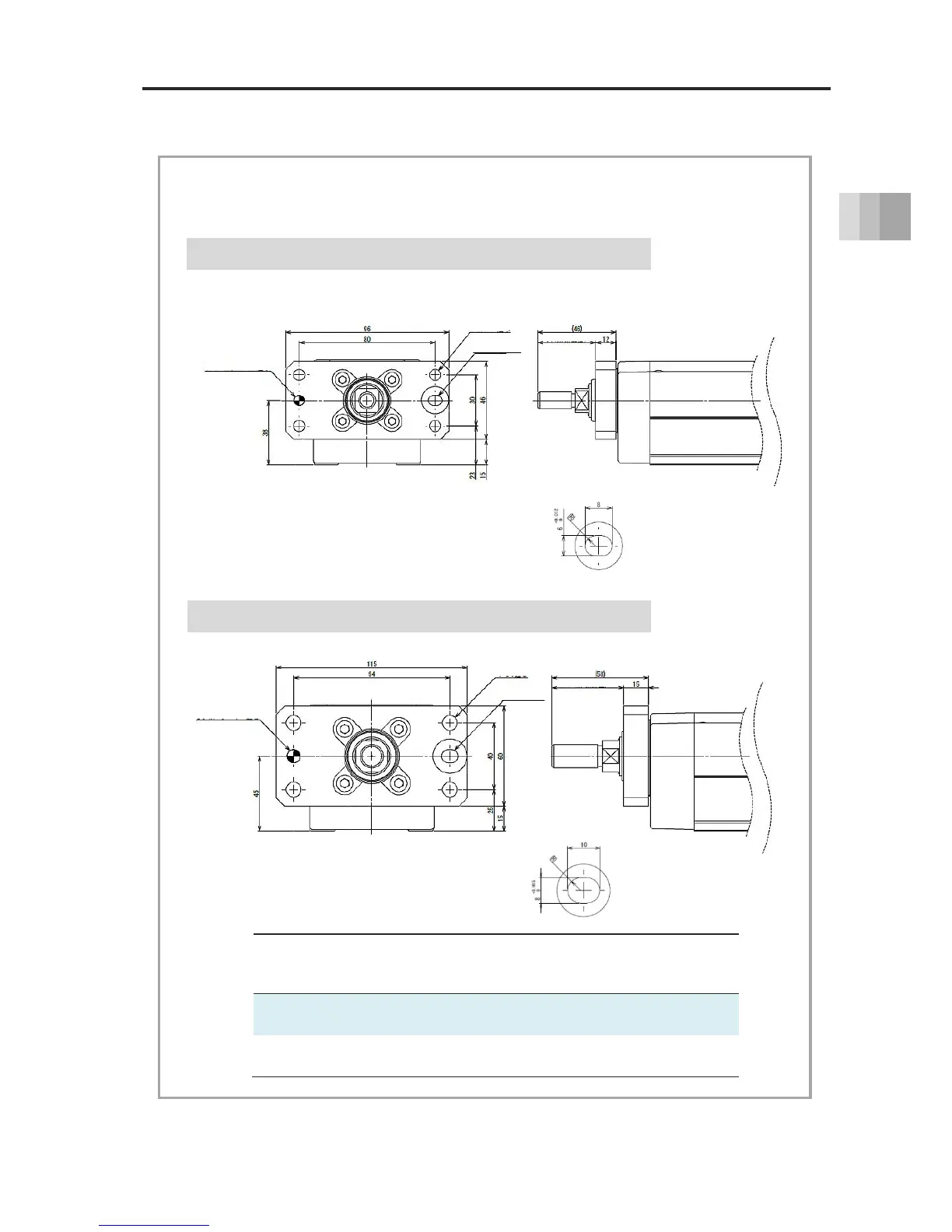

[When using flanges]
ELECYLINDERs can be mounted with flanges (option: model FL).
→ For precautions for mounting, refer to pages 2-58 to 59.
For EC-RR6□AH and EC-RR6□H (Part model number EC-FL-RR6)
For EC-RR7□AH and EC-RR7□H (Part model number EC-FL-RR7)
Type Material
Tightening torque when mounting
ELECYLINDER
EC-RR6□AH
EC-RR6□H
Iron
(unichrome)
3.42N･m
EC-RR7□AH
EC-RR7□H
Iron
(unichrome)
5.36N･m
Details of oblong hole
Details of oblong hole
4-φ6.6 through
34
(
home
p
osition
)
Oblong hole through
φ6 H7 reamed through
4-
φ
9 throu
g
h
43
(
home position
)
Oblong hole through
φ 8 H7 reamed through
