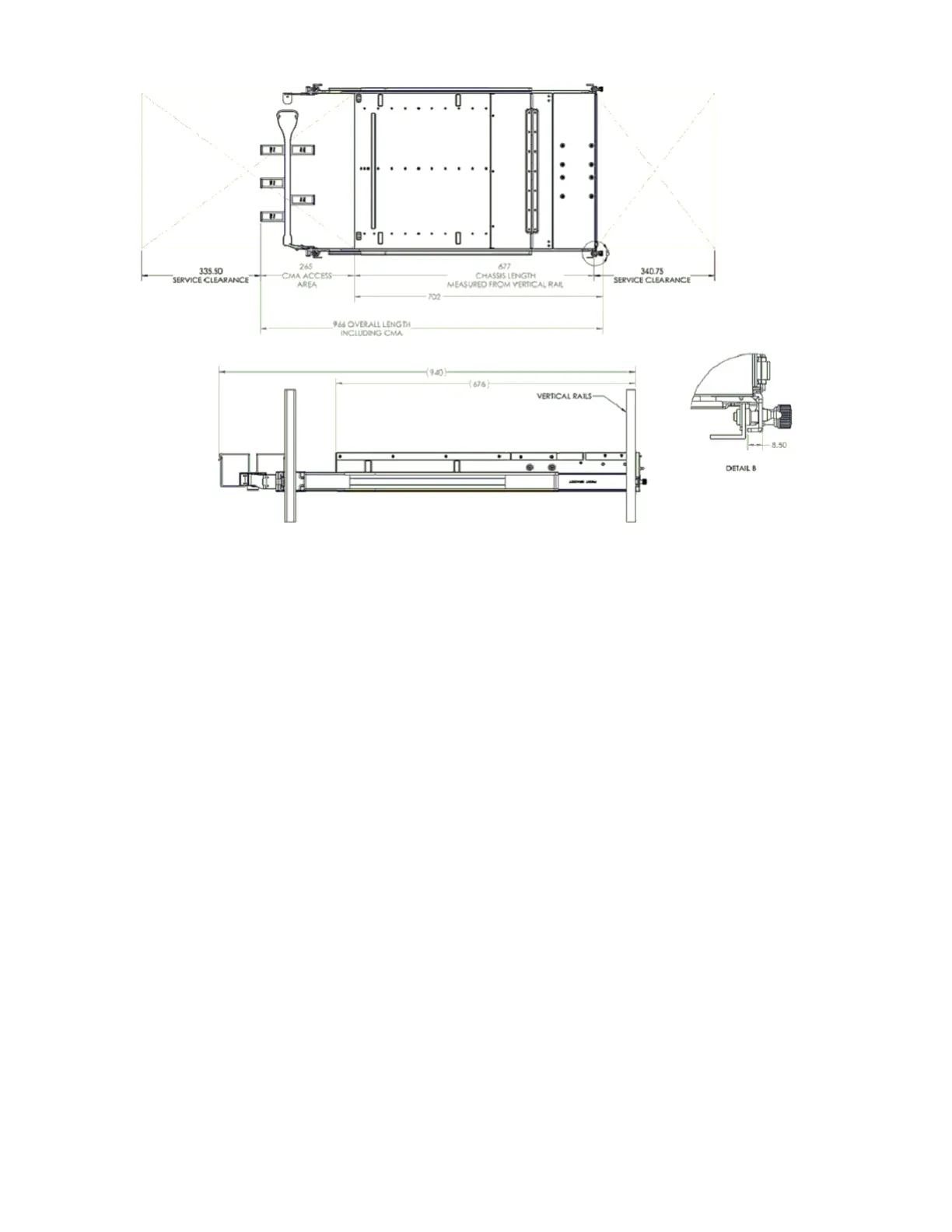

Figure 11. Service envelope illustration (Dimensions in millimeters)
Service clearance for IBM Storage Scale System 3500
The service clearance area is the area around the rack which is needed for the authorized service
representatives to service the enclosure as shown in the sample illustration in the following gure.
34
IBM Storage Scale System 3500: Hardware Planning and Installation Guide
