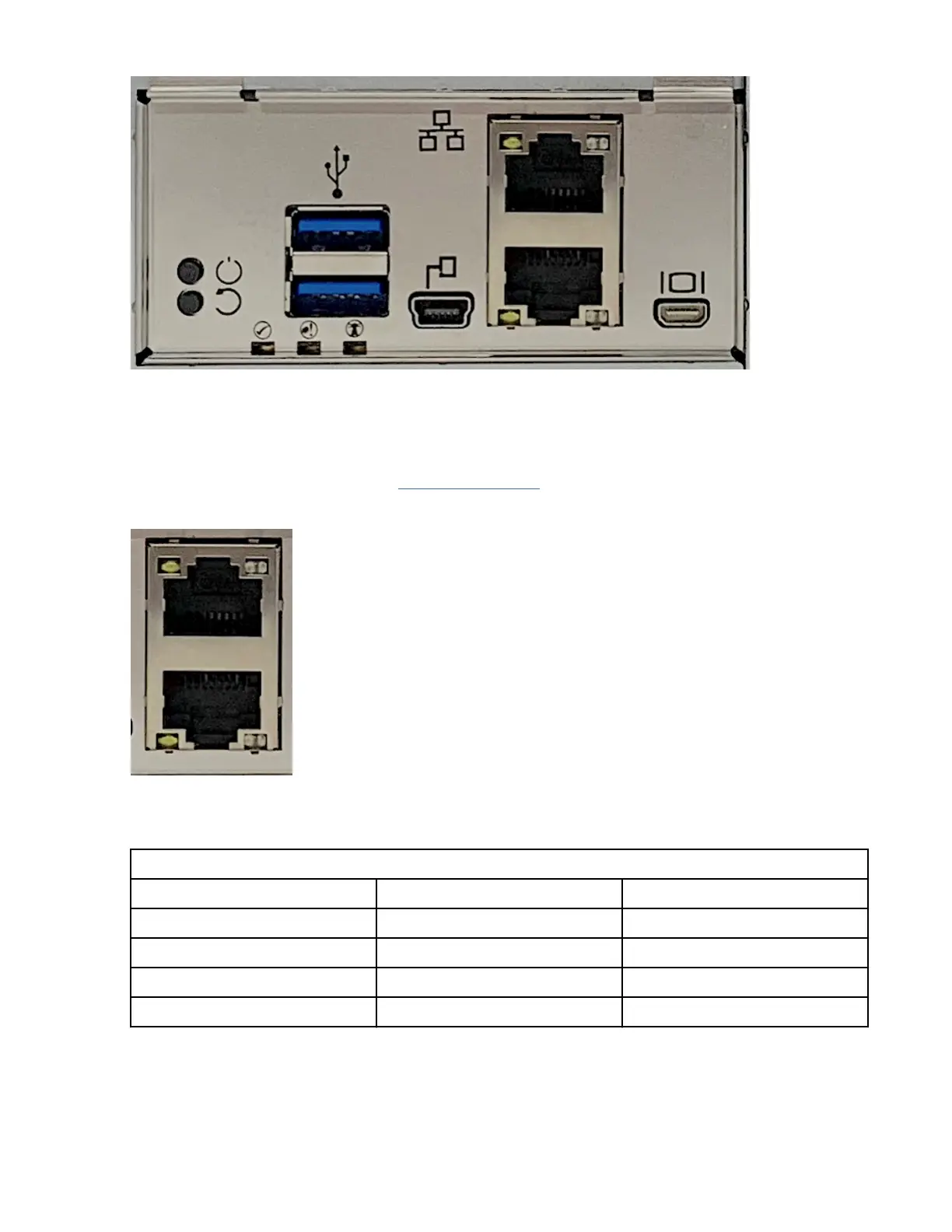

Figure 47. Close-up view of server canister LEDs
Ethernet port LEDs
The Ethernet port on the rear of server canister is a standard RJ45-style connector. These LEDs indicate
speed and link activity as described in Table 24 on page 60.
A close up view of Ethernet port LEDs is shown in the following gure.
Figure 48. Close up view of IBM Storage Scale System 3500 Ethernet port LEDs
The following table describes the behavior of Ethernet port LEDs.
Table 24. IBM Storage Scale System 3500 Ethernet port status LEDs
Left LED Right LED Behavior
OFF OFF Indicates no link.
Amber Green Indicates link at 1000 Mb.
Green Green Indicates link at 10000 Mb.
Flashing Flashing Indicates Ethernet link activity.
60IBM Storage Scale System 3500: Hardware Planning and Installation Guide
