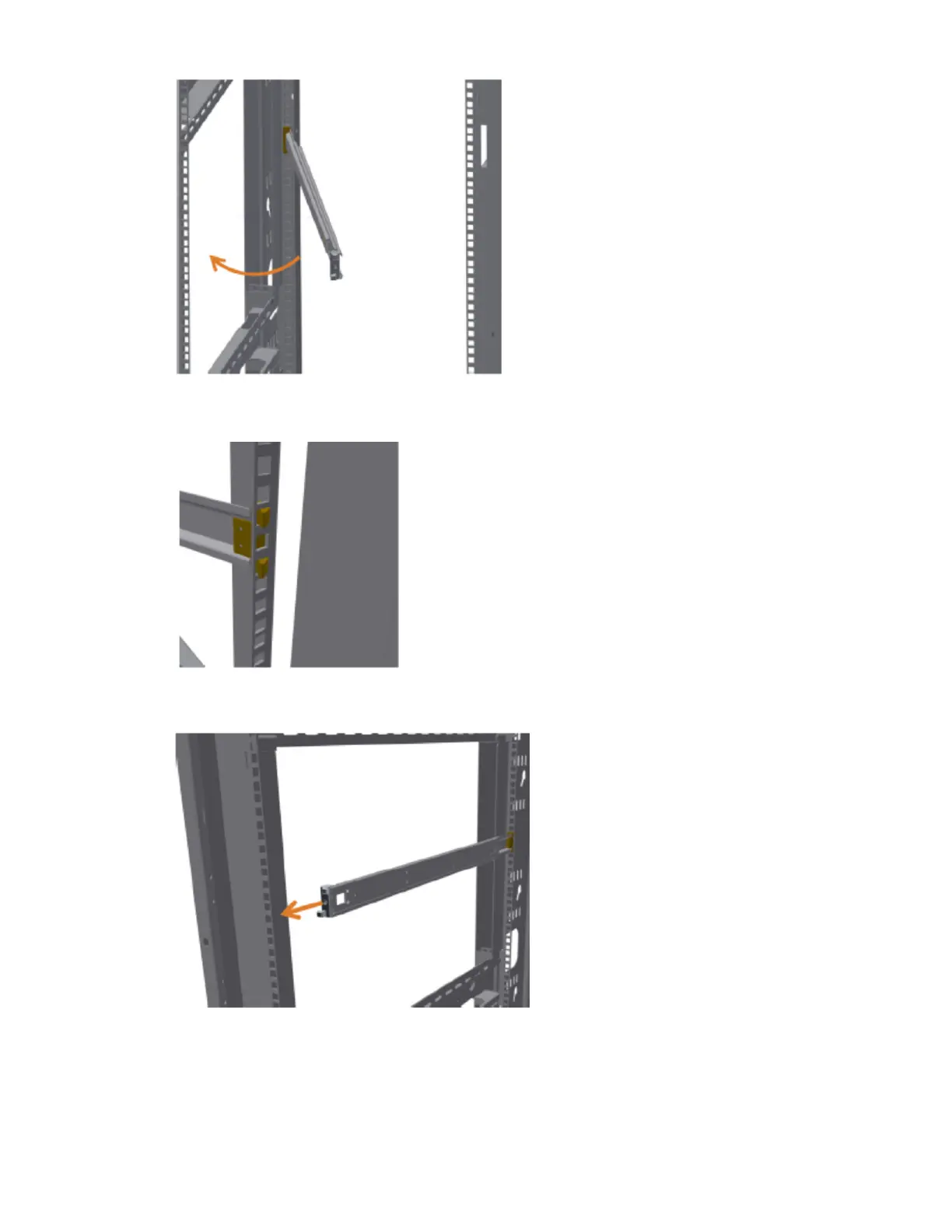

Figure 63. Inserting rack rails into the back of the rack
A rack rail that is inserted into the back of the rack is shown in the following gure:
Figure 64. A rack rail that is inserted into the back of the rack
b) Extend the telescopic rail to the front of the rack.
Figure 65. Extending the telescopic rail
c) Insert the rail latches into the rack slots. The following gure shows that the latch is fully inserted.
A correctly secured rack rail is shown in the following gure:
