IBM 3500 - The IBM MTM 5149-N64 Switch Views; Power Side View

Feature Quantity
Octal small form factor pluggable (OSFP)
connectors
32
USB management ports 1
RJ45 management ports 1
RJ45 management ports (UART) 1
Power supply units 2 (1+1 redundant)
Fan modules 7 (6+1 redundant)
Key software features
The software features of the 5149-N64 switch are as follows:
• On-board subnet manager
• NVIDIA MLNX-OS software package
• Management access via:
– Command line interface (CLI)
– Web based graphical user interface (GUI)
– Simple Network Management Protocol (SNMP)
– JavaScript Object Notation (JSON)
Note: Installing and upgrading switch software is a customer responsibility. Updates must be installed
only upon the direction of IBM Support.
The IBM MTM 5149-N64 switch views
The following image labels the 32 OSFP ports and highlights features on the port side of 5149-N64
switch. Port numbers are printed on the switch between the top and bottom ports.

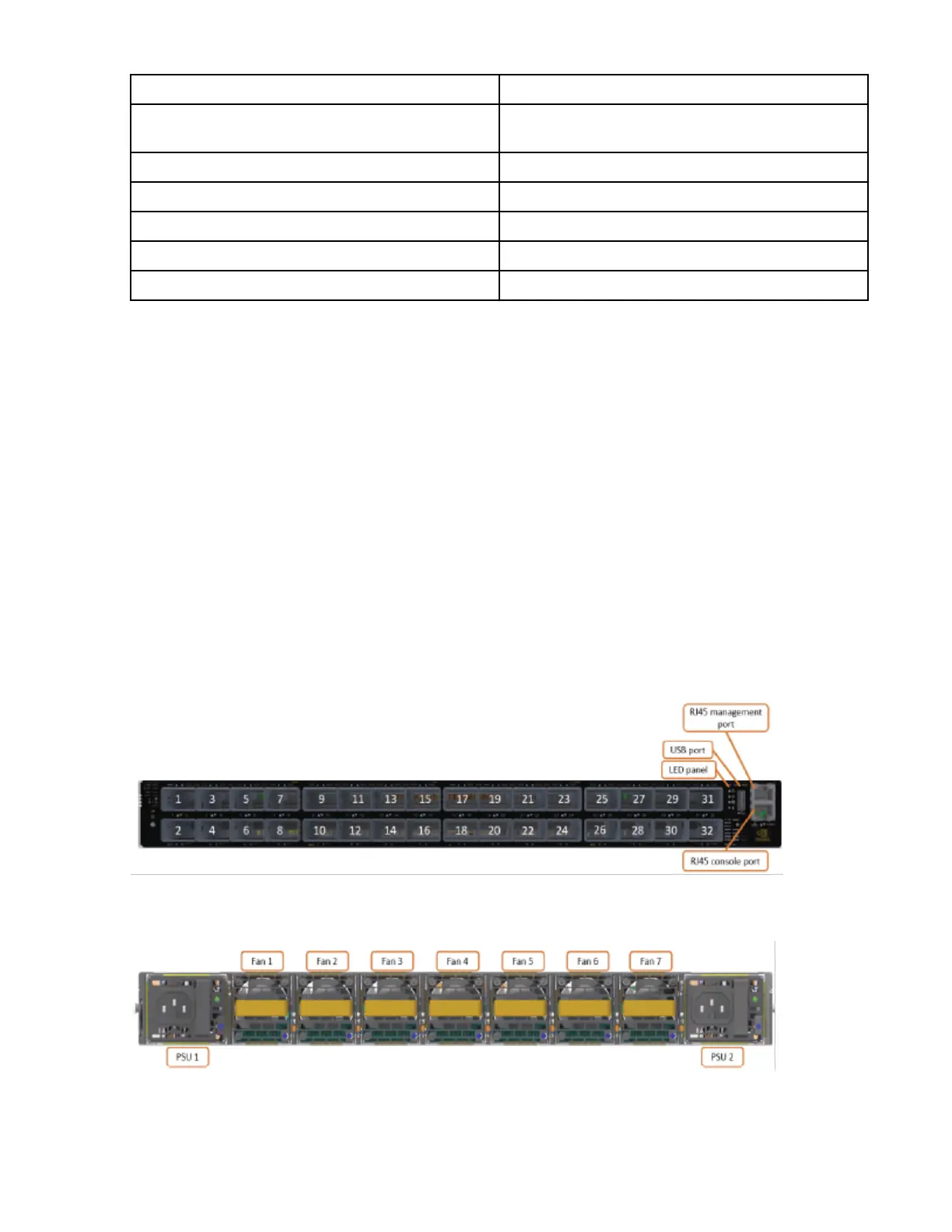

Figure 53. Port view of the 5149-N64 switch
The following image highlights features on the power side of the 5149-N64 switch:
Figure 54. Power side view
