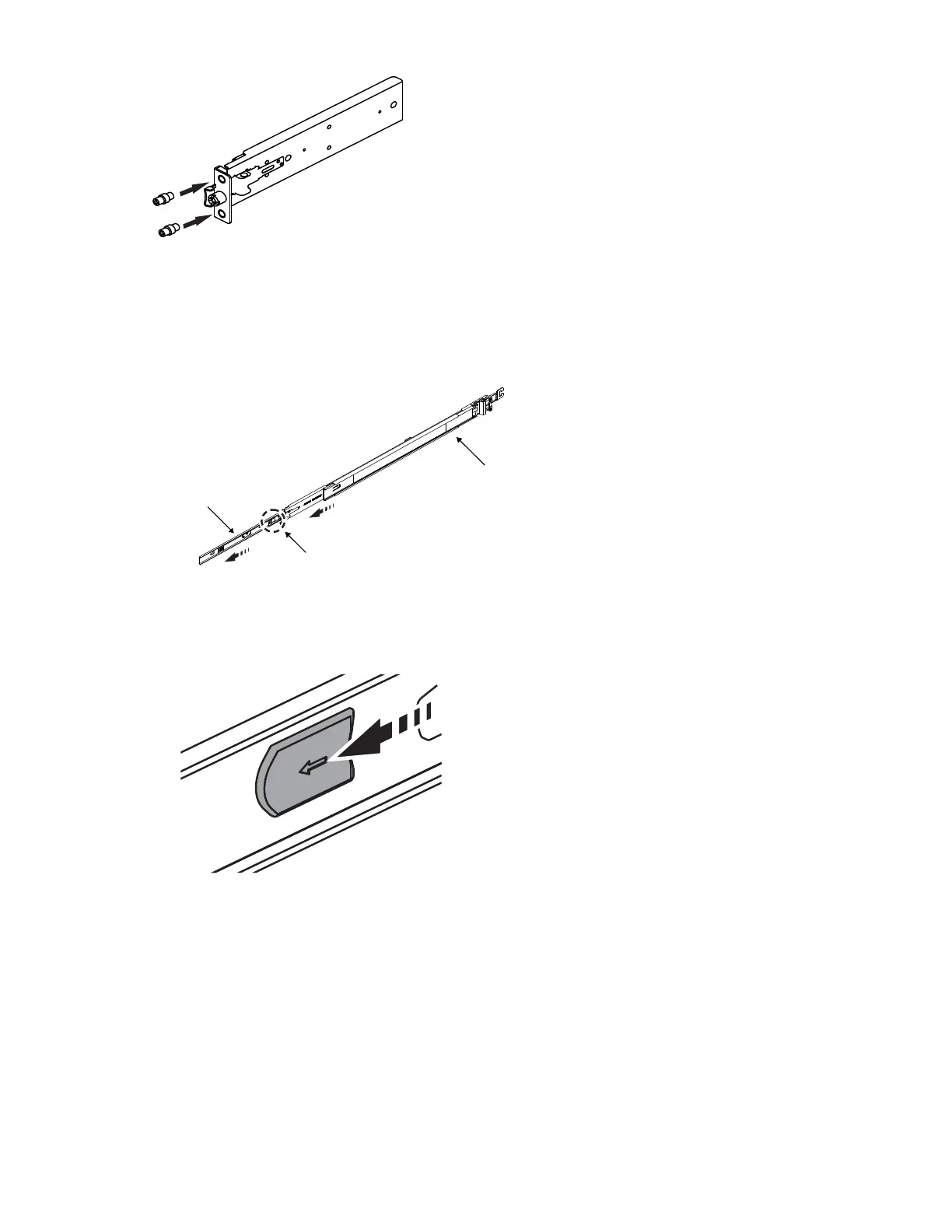

Figure 17. Installation of round post screw
Note: Before the rail kit is installed, the inner chassis member rails must be separated from the outer
cabinet member rail.
4. Remove the inner rail from the left outer rail as follows:
a) Slide the inner rail out from the left outer rail until you hear an audible click.
Click
Inner Rail
Outer Rail
Figure 18. Removal of the inner rail
b) Pull the release tab on the inner rail forward as shown in the following gure.
Figure 19. Release tab
c) Remove the inner rail from the left outer rail and set aside.
5. Repeat the removal steps of inner rail from left outer rail to remove the other inner rail from the right
outer rail.
6. Install the left outer rail on the rack post as follows:
a) Align the left rear bracket mounting screws with the appropriate rear rack post holes as shown in
the following gure.
