Cable Routing

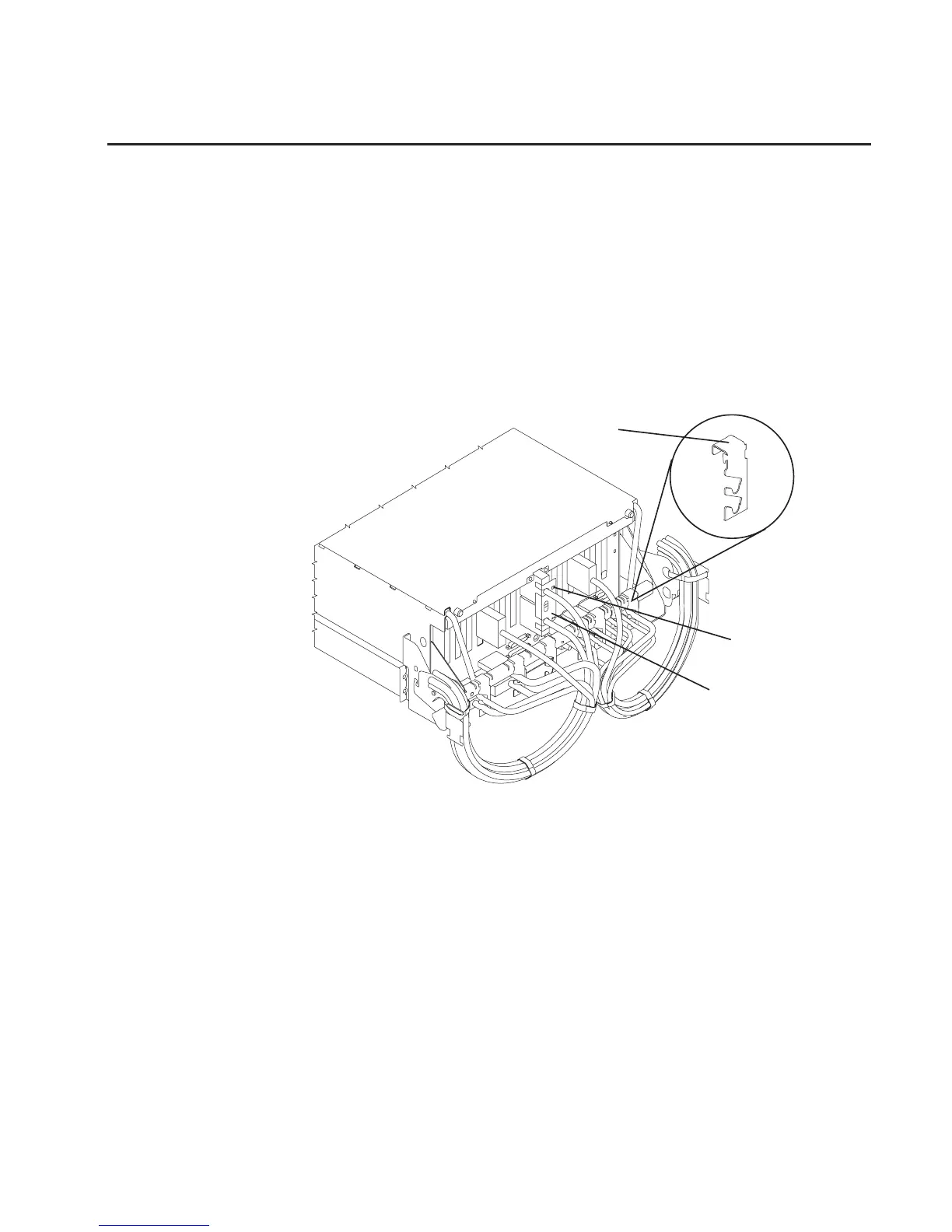

Use the following descriptions to route and secure the cables in the rack drawer.
I/O Drawer Cables: If present, connect the RIO drawer cables to the I/O drawer and
secure them with the RIO cable retainer (3), part number 11K0584. Use two screws (2),
part number 00G1268.
To hold the cables, use the cable hanging brackets (1), part number 11K1013, as
needed.
Route the cables over the cable guides, and secure the cables with Velcro strips, part
number 07H6855 or 51H9502.
1
2
3
Appendix E. Rack Drawer Rail Instructions 527
