Power Cord Configuration

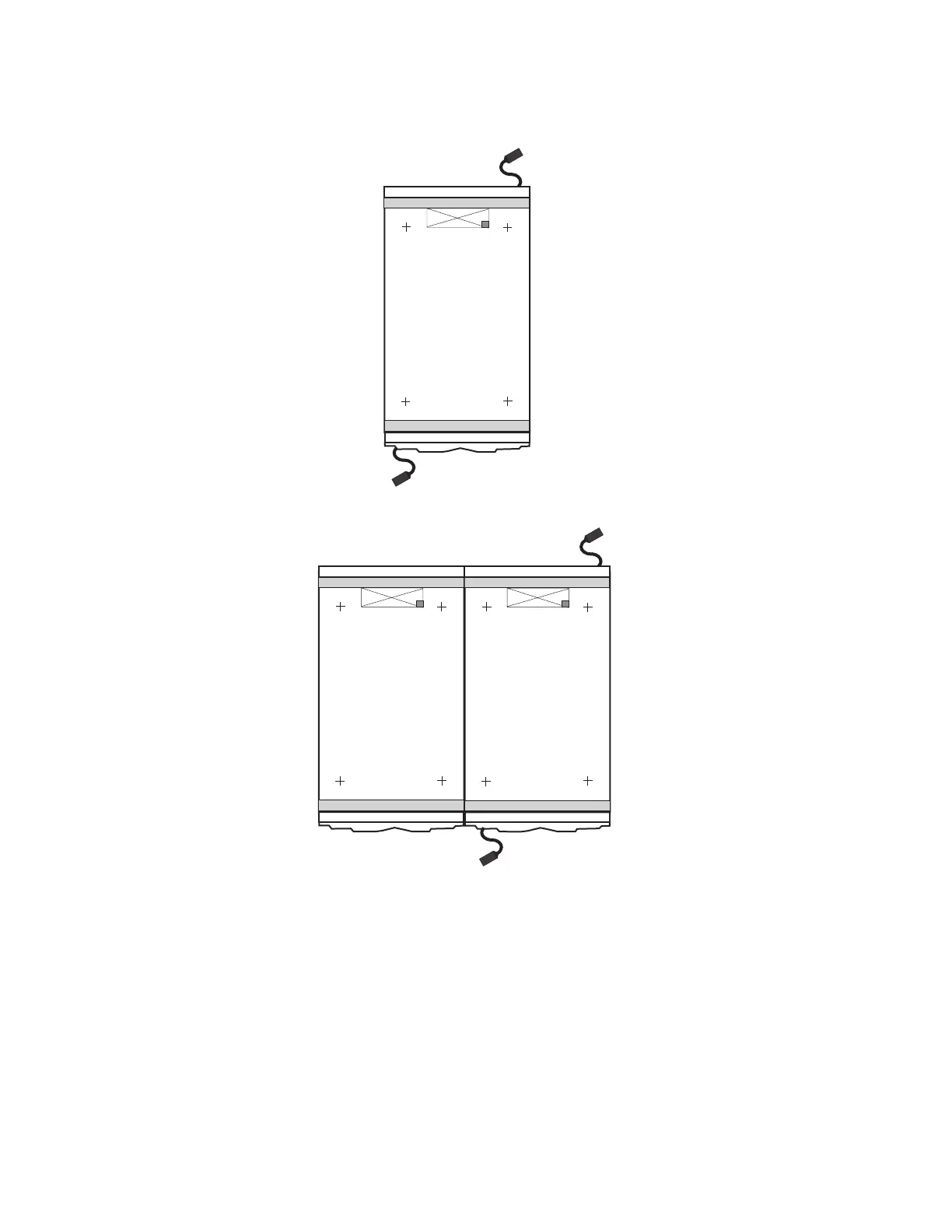

The power cords exit the system from different points of the frame as indicated in the following illustration.
A
All Single-Frame Systems
(Top Down View)
A
B
All Double-Frame Systems
(Top Down View)
Front
Front
Rear
Rear
166 Site and Hardware Planning Information
