(For fixed drawers): This drawer is a fixed drawer and must not be moved for servicing unless specified by the
manufacturer. Attempting to move the drawer partially or completely out of the rack might cause the rack to become
unstable or cause the drawer to fall out of the rack.
(R001 part 2 of 2)
CAUTION:
This equipment is not suitable for use in locations where children are likely to be present. (C052)
Installing the Slide Rails
To install the slide rails into a rack, complete the following steps:
Note: You may need to move other components in the rack to provide access for this installation. You will need to access both
the front and rear of the rack.
Note: The slide rails may be installed in a rack with round or square holes.
1. Ensure that the system and the 7226 Storage Enclosure are powered off.

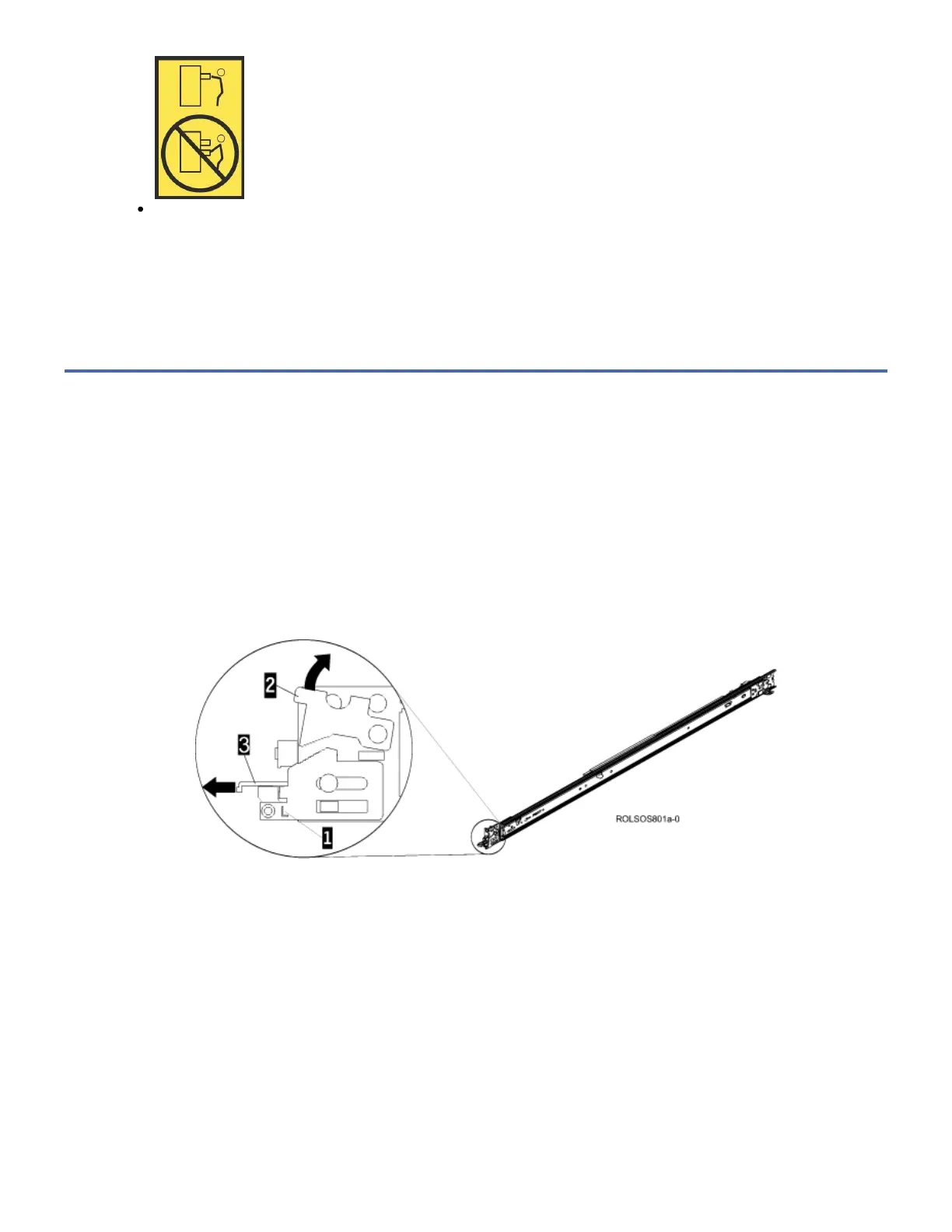

2. Each slide rail is marked with either an R (right) or an L (left) 1. Select one of the slide rails and push up on the front
movable tab 2; then, pull out the front latch 3. Make sure that the front latch remains extended and does not click
back into place.
Figure 1. Slide rail and movable tab
3. Align the three pins on the rear of the slide rail with the three holes in the selected U on the rear of the rack. Push the
rails so that the pins go into the holes 1, and drop the slide rail down 2 until it latches into place.
Figure 2. Rack rear rail and pins
