4. Pull the slide rail forward and insert the two pins on the front of the rail into the two lower holes in the U on the front of
the rack. Drop the rail into place 1 until it clicks into place. Push the front latch 2 in all the way.

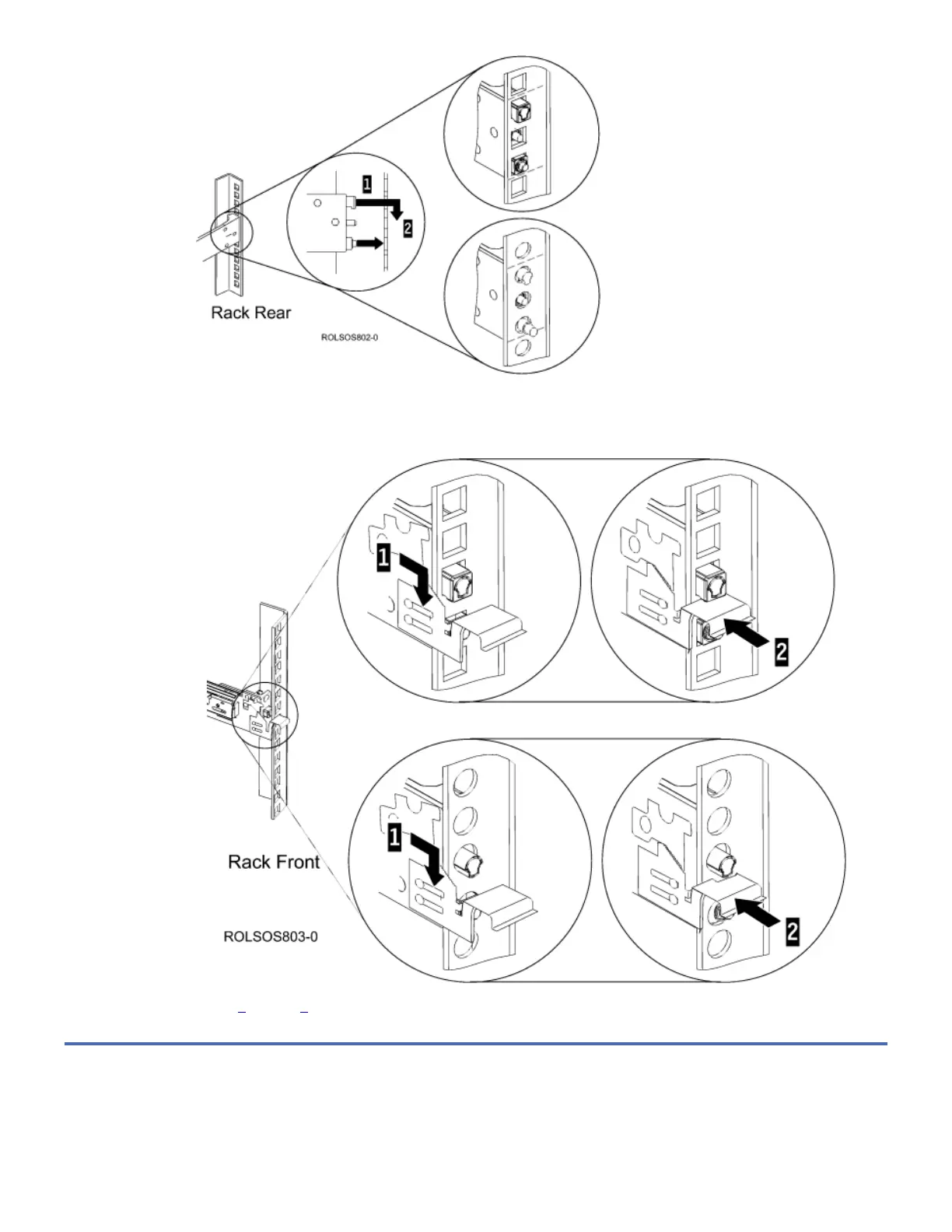

Figure 3. Rack front rail and pins
5. Repeat steps 1 through 3 to install the other rail into the rack. Make sure that each front latch is fully seated.
Installing the 7226 Storage Enclosure onto the Slide Rails
To install the 7226 Storage Enclosure onto the slide rails, complete the following steps:
1. Ensure that the system and the 7226 Storage Enclosure are powered off.
