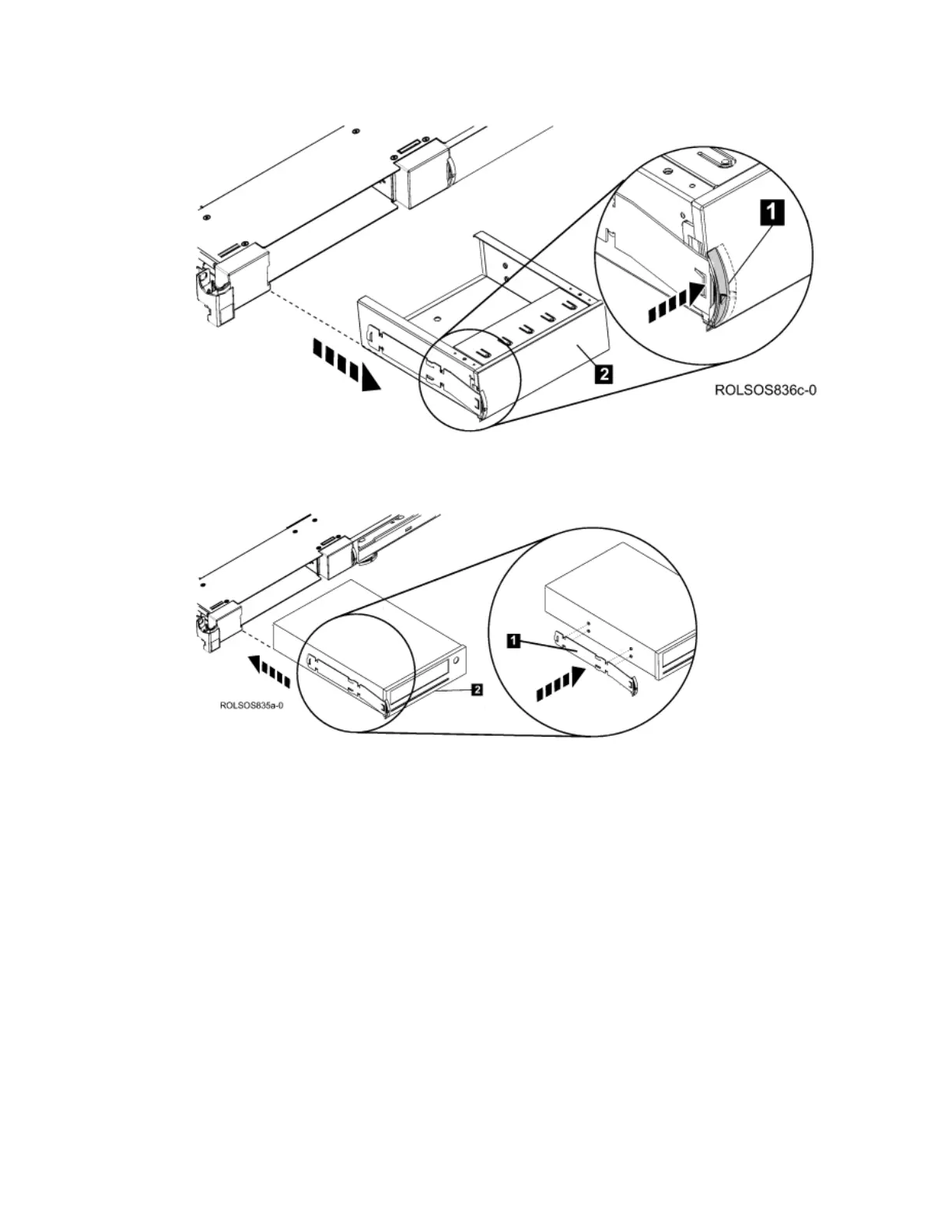

3. To remove the Half High Bay Blank, push the drive latch 1 toward the Half High Bay Blank and begin to pull the blank

out of the enclosure. Grasp the Bay Blank 2 and pull it out of the enclosure.

Figure 1. Remove Half-High Bay Blank

4. Attach the Drive Latch 1 to the Drive 2 and insert both into the drive bay until they click into place.

Figure 2. Insert Drive

5. Attach the Interface Assembly to the drive connector 1, and attach the Power Connector 2. For Fibre Channel Cables,

also attach the power jumper 3.

Figure 3. Attach Interface Assembly and Power Cable

34 IBM 7226 Model 1U3 Storage Device Enclosure
