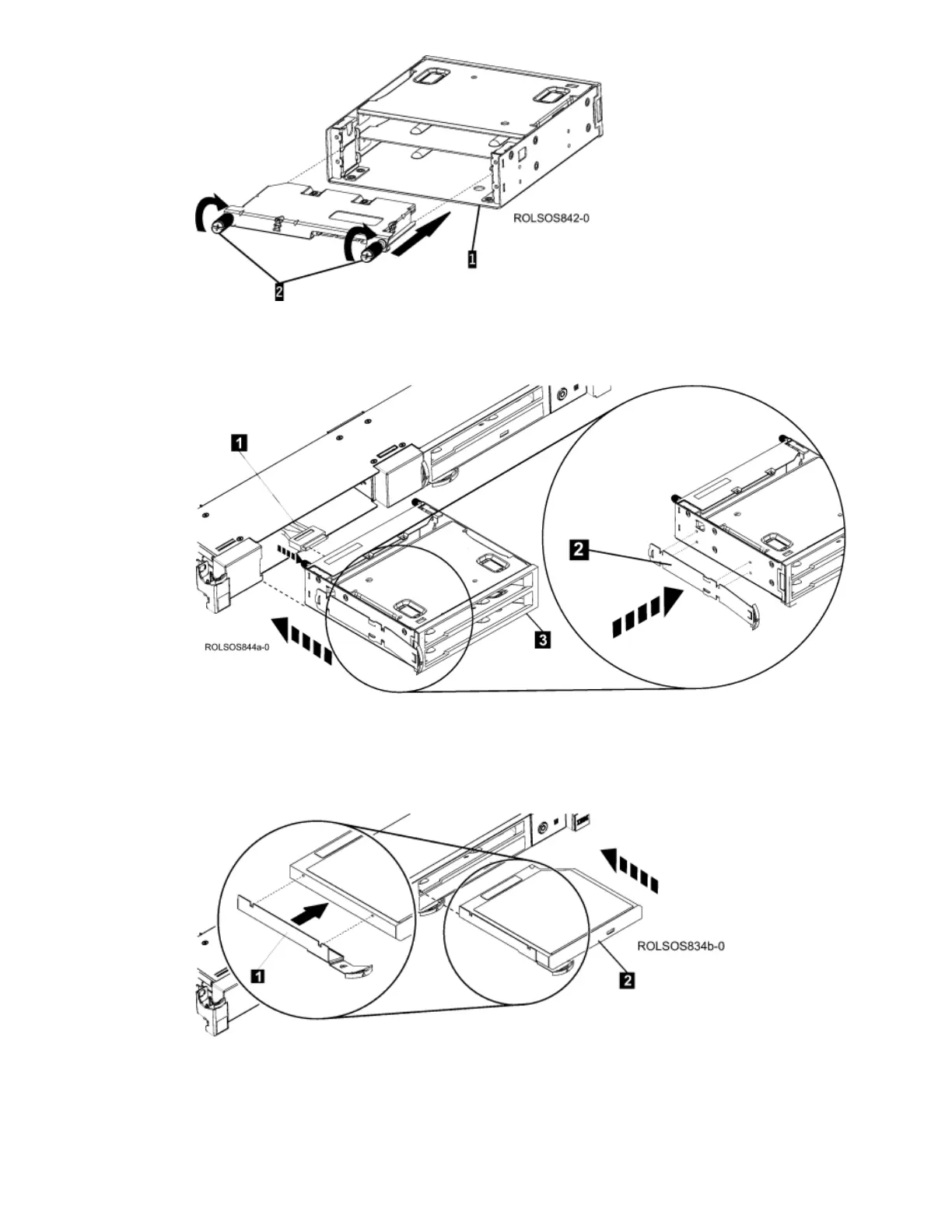

10. Attach the connectors 1 to the Slim Tray assembly. Attach the Drive Latch 2 to the Slim Tray Assembly 3 and insert
both into the drive bay until they click into place.
Figure 5. Install Slim Tray Assembly
11. Determine the location to install the DVD drive. Attach the Slim Drive Latch 1 to the DVD Drive 2 and insert both into
the slim drive bay until they click into place. Repeat this step with the second DVD drive or the Slim Blank Front Cover.
Note: The connector on the back of the DVD drive must attach securely to the SATA/SAS re-driver card or SATA/USB
converter card.
Figure 6. Install DVD Drive
12. Attach the power cord and other cables to the rear of the enclosure.
13. Power on the 7226 storage enclosure.
14. Refer to your system manuals to verify installation.
