5. Place the Slim Drive Tray assembly on an ESD protected work surface.
6. Locate the re-driver cards and converter cards on the rear of the Slim Drive Tray Assembly. There may be one or two
cards. Ensure that both are moved to the new Slim Drive Tray.
7. To remove the SATA/SAS re-driver card or SATA/USB converter card, loosen the thumbscrews 1. Slide the card out of
the rear of the Slim tray 2.

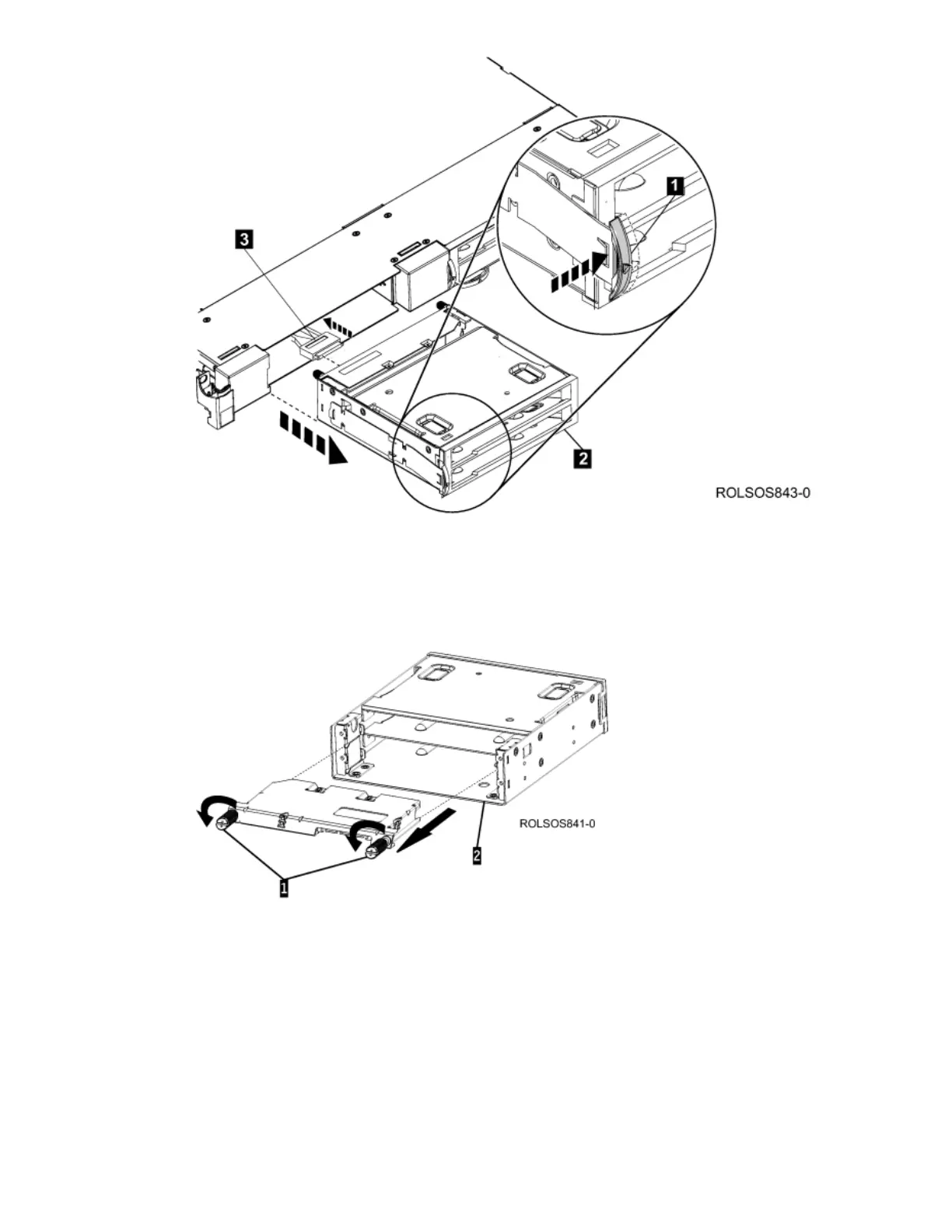

Figure 3. Remove the SATA/SAS re-driver card or SATA/USB converter card
8. Locate the new Slim Drive Tray.
9. To install the SATA/SAS re-driver card or SATA/USB converter card, align the card slides with the slots on the rear of the
slim drive tray. Slide the card into position in the rear of the Slim tray 1. Tighten the thumbscrews 2. Repeat this step if
there is a second card.
Figure 4. Install the SATA/SAS re-driver card or SATA/USB converter card
