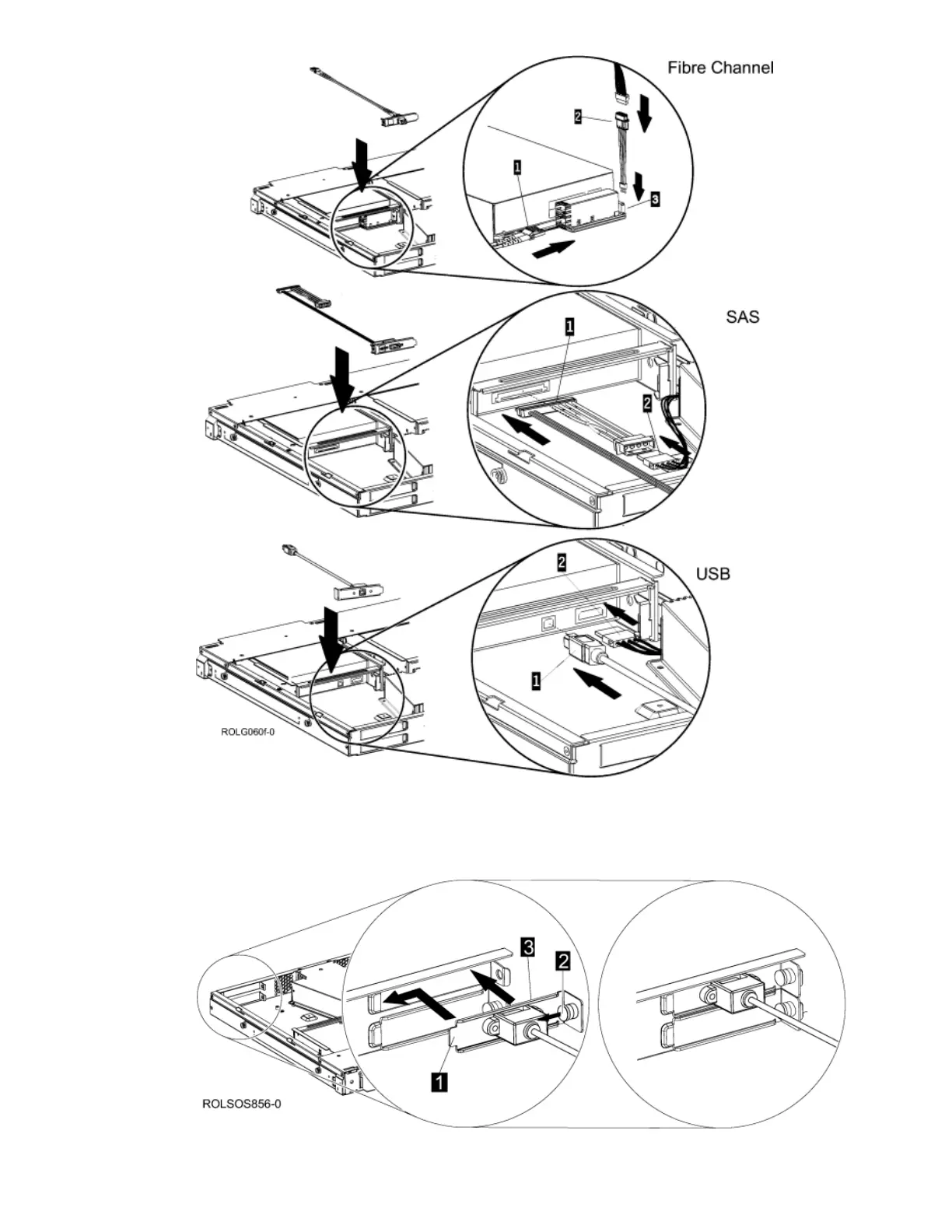

15. To Insert the Interface Assembly into the rear panel slot, insert the tab on the back plate into the indent in the back
panel opening 1, pull the pin on the back plate 2 and push the back plate into the back panel opening 3 until it clicks
into place.
Figure 14. Insert Interface Assembly Back Plate
IBM 7226 Model 1U3 Storage Device Enclosure 61
