Chapter 3 MEDIA CONTROL
Printer Operation: The printer will print the first (leftmost) 4” label first. Once
the first label has been completed, the printer will print the second 4” label.
These labels will appear vertically adjacent on the form.
Example 2: Uneven Number Case
Problem: A file has been constructed with three horizontally adjacent 2”
labels. The user now desires to use this file with a printer that has a 4”
physical width.
Solution #1: The user sets
Auto Label Width
to 4” (the width of two labels),
configures the Num Auto Labels to 2, and enables the Auto Label Mapping
feature.
Printer Operation for Solution #1: The printer will print the first two labels at
the same time. These first two labels will be horizontally adjacent. Once these
labels have been completed, the printer will print the remaining 2” labels along
with a blank 2” label.

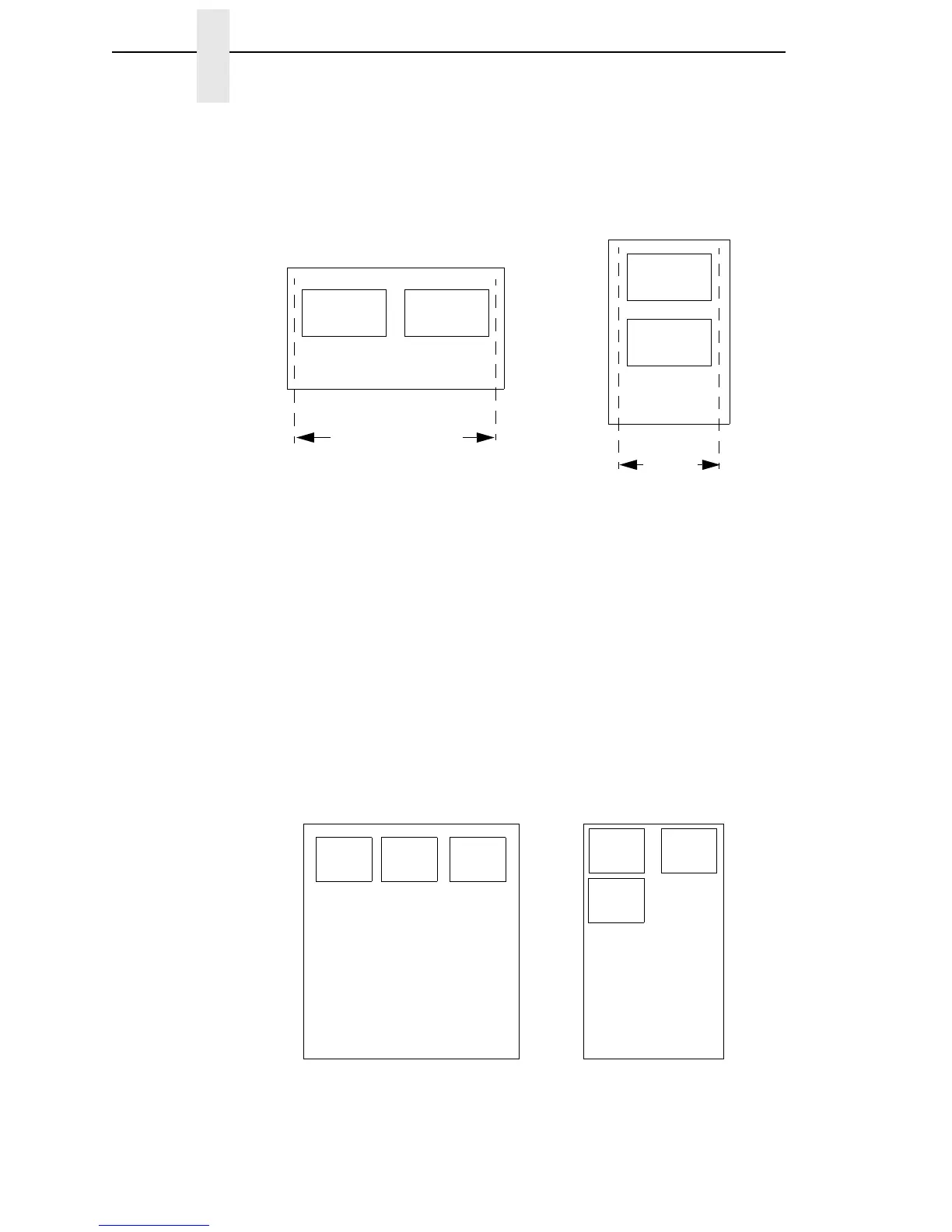

Label 1 Label 2
Label 1
Label 2
Line-Matrix Printer Output
Thermal Printer Output
Wide Web Width Narrow
Web
Width
Label
1
Label
2
Label
3
Label
1
Label
2
Label
3
Blank
Label
File Contents:
Print Output:
To Next Page
