Chapter 2 Loading Media And Ribbon
8. Verify that the left (inside) edge of the media is against the fixed guide on
the bottom of the media damper.
9. Push the blue media width guide in until it is flush with the outer edge of
the media.
10. Check the horizontal position of the lower media sensor (located under
the media guard), and refer to “Positioning The Media Sensors” on
page 72.

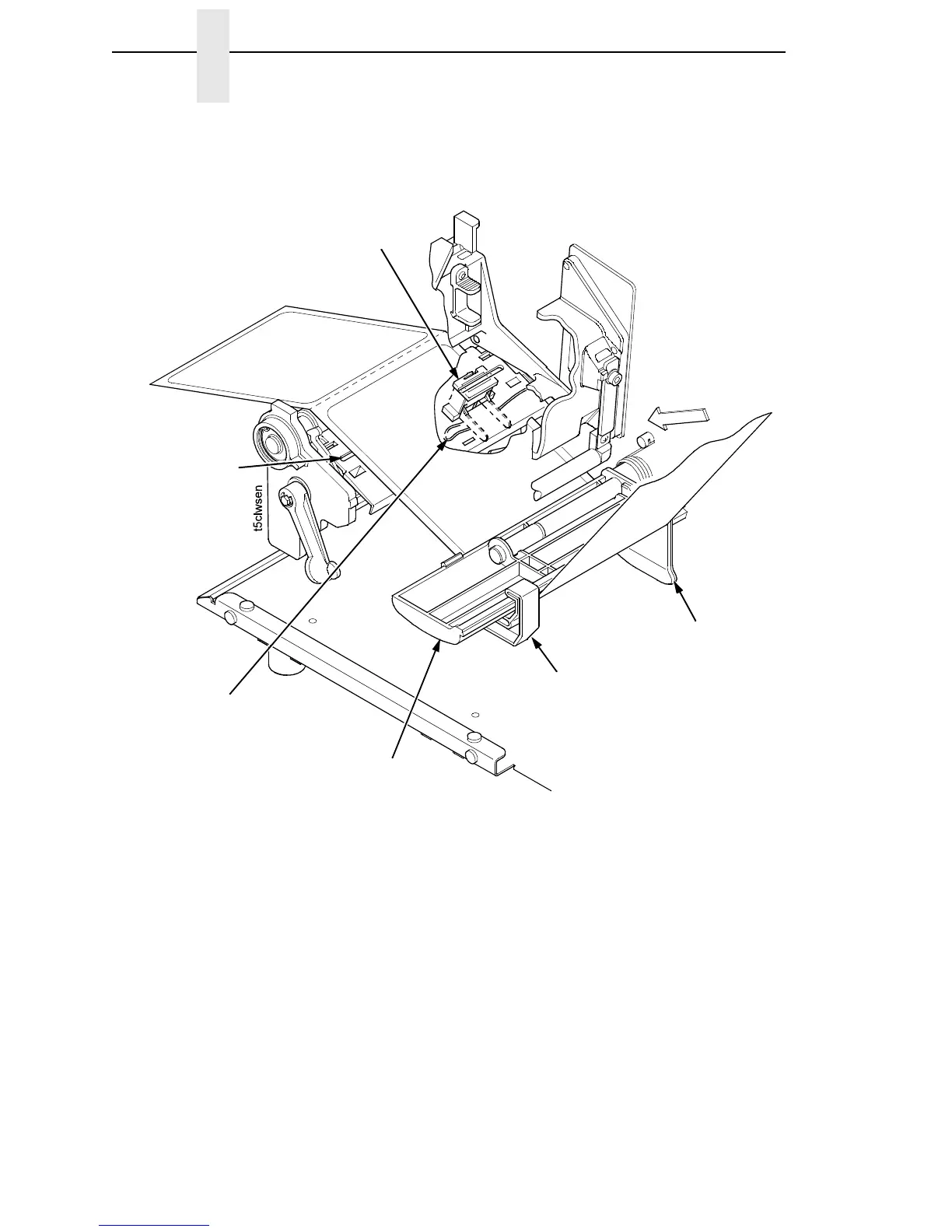

Media Sensor
Handle
Media Guard
Lower Media
Sensor
Fixed Guide
Media Damper
Media Width
Guide
