11. From the bottom of the processor assembly lift the side access cover. The cover is
held to the top of the processor assembly by four hinges. Pivot the cover up to
reveal the memory DIMMs or DIMM connectors.

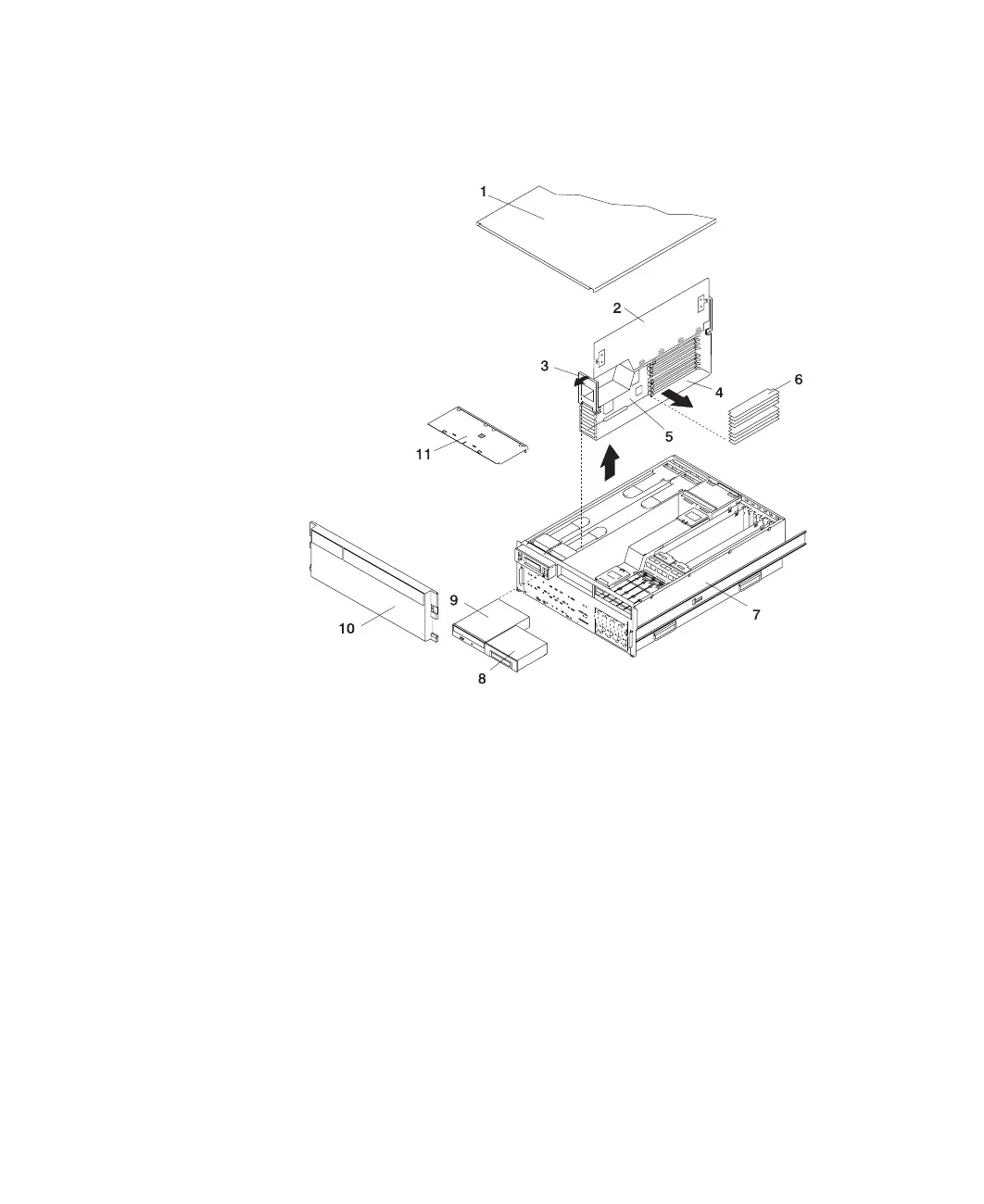

1 Service Access Cover 6 Memory DIMMs
2 Processor Access Cover 7 7028 Model 6C4
3 Processor Assembly Lifting and
Release Handle
8 Optional Media Device (for
example: Diskette Drive, Tape
Drive)
49IDE CD-ROM Drive
5 Processor Card 10 Front Bezel
11 Media Support Shelf
114 Eserver
pSeries 630 Model 6C4 and Model 6E4 Installation Guide
