IBM pSeries 630 6C4 Installation Guide

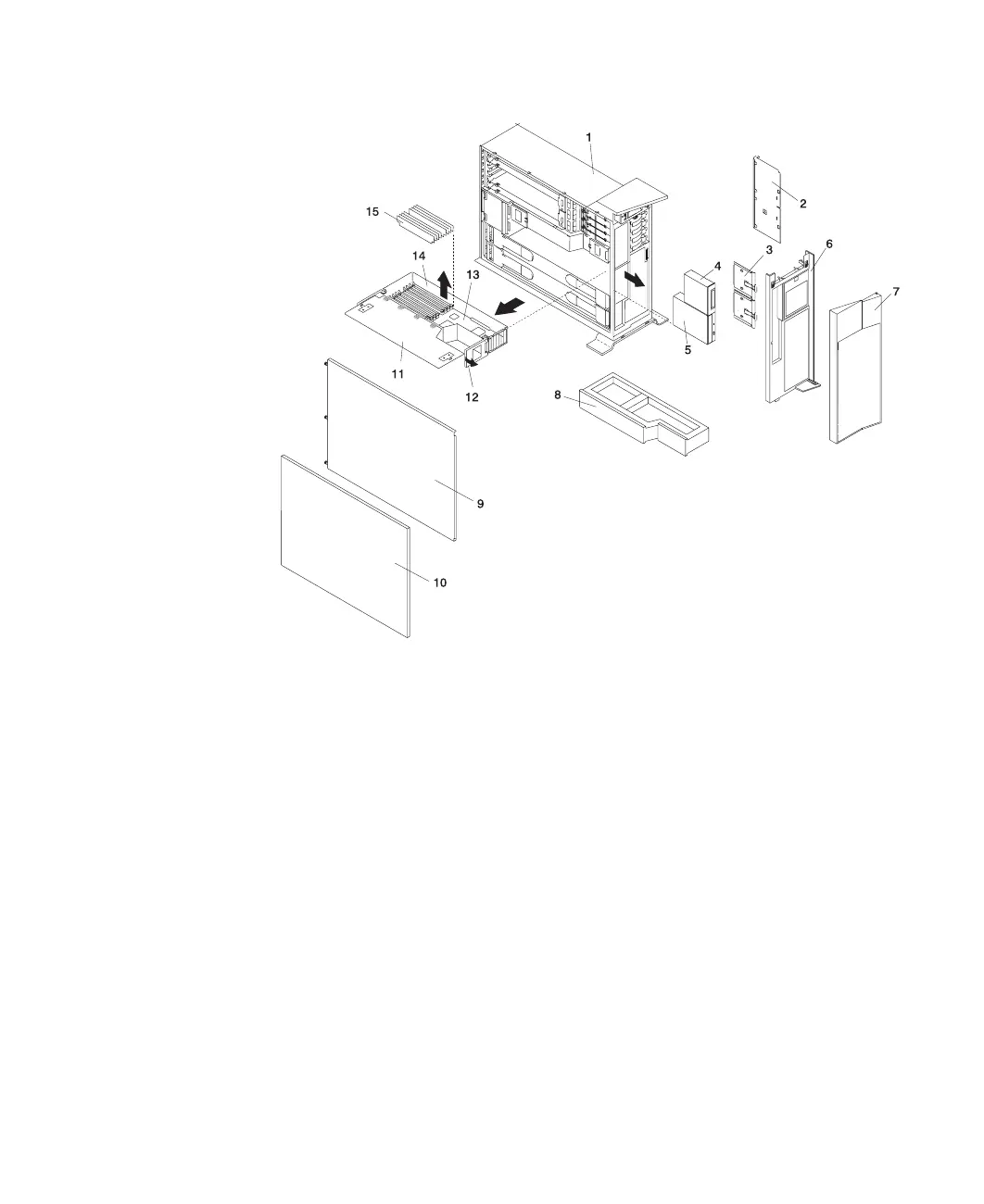

1 Model 6E4 9 Service Access Cover
2 Media Device Support Shelf 10 Outer Side Cover
3 Media Carrier Trays 11 Processor Access Cover
4 Optional Media Device (for
example: Diskette Drive or
Tape Drive)
12 Processor Cage Processor
Assembly Lifting and Release
Handles
5 IDE CD-ROM Drive 13 Processor Card
6 Front Bezel 14 Processor Cage
7 Bezel Door 15 Memory DIMMs
8 Processor Filler
Chapter 4. Installing Options
115
