11. Finger-tighten a second retaining screw through the top screw hole of the
latch-bracket. After the latch bracket is in place, ensure that both screws are
finger-tight.
Attention: Do not tighten any of the screws more than finger-tight until instructed
to do so. Tightening the screws prevents the rails from self-aligning when the
system drawer is attached.
12. Repeat steps 6 through 13 when installing the left rail. After both rails have been
installed, ensure that none of the rail’s front retaining screws are more than
finger-tight. The rails must be level from front to back and from left to right.
13. Go to the back of the rack.
14. Loosen, but
do not remove
, the 6 retaining screws that secure the rail-length
adjusting plate to the rail.
Note: The rail-length adjusting plate should not move freely when loosened;
however, you should be able to make an adjustment by moving the
adjustment plate with one hand and holding the remaining portion of rail in
the other hand.

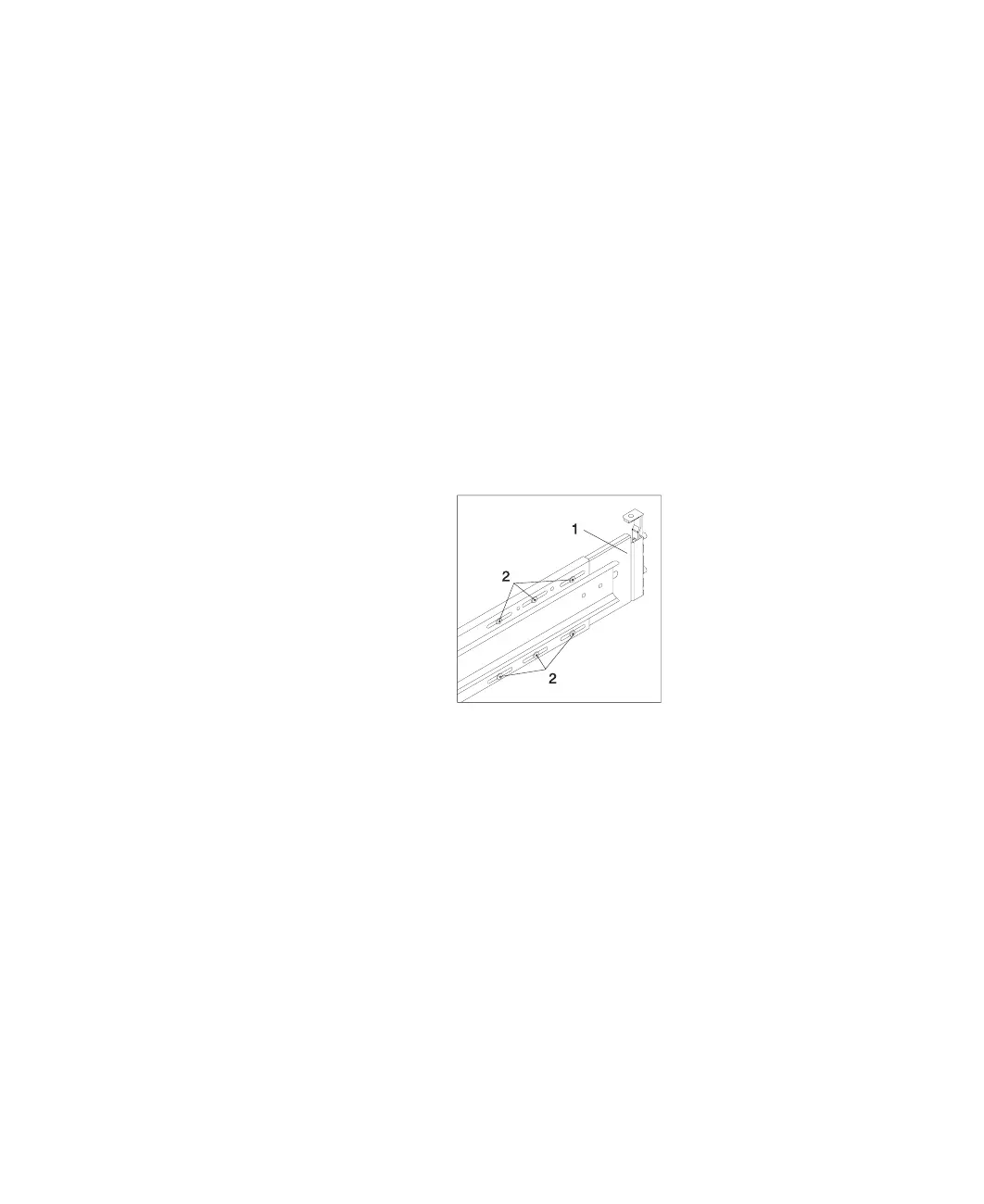

1 Rail-Length Adjusting Plate
2 Retaining Screws for Rail-Length Adjusting Plate
15. Facing the back of the rack; ensure that the left rail’s two alignment pins are
positioned in the correct EIA holes. Use 2 retaining screws to attach the rail
brackets to the rack flanges. Finger-tighten both screws.
16. Using a screwdriver, tighten the six screws that secure the rail length adjusting
plate.
17. Again, facing the back of the rack; ensure that right rail’s two alignment pins are
positioned in the correct EIA holes. Finger-tighten one retaining screw into the
bottom screw hole of the rail flange. This is the screw hole located one position
below the bottom alignment pin.
20 Eserver
pSeries 630 Model 6C4 and Model 6E4 Installation Guide
