6. Position yourself at the front of the rack.
7. Facing the rack, note the EIA position of the two placement dots previously
installed. Insert the rail’s rear alignment pins into the corresponding EIA holes
located on the rear flange.
8. Insert the rail’s front alignment pins into the rack front flange holes that have been
identified by the adhesive placement dots. Ensure the EIA location is the same
from front to back.
9. Loosely thread one of the rail retaining screws into the rail’s bottom screw hole.
This is the screw hole located one position below the bottom alignment pin.
Attention: To install the rack rails correctly, you must read, then perform
each procedure step in the order given. Failure to do so may cause rail
failure resulting in system drawer damage or bodily injury.
10. Locate one of the latch brackets and place the bottom slot of the latch bracket
over the rail retaining screw. Finger-tighten the screw.

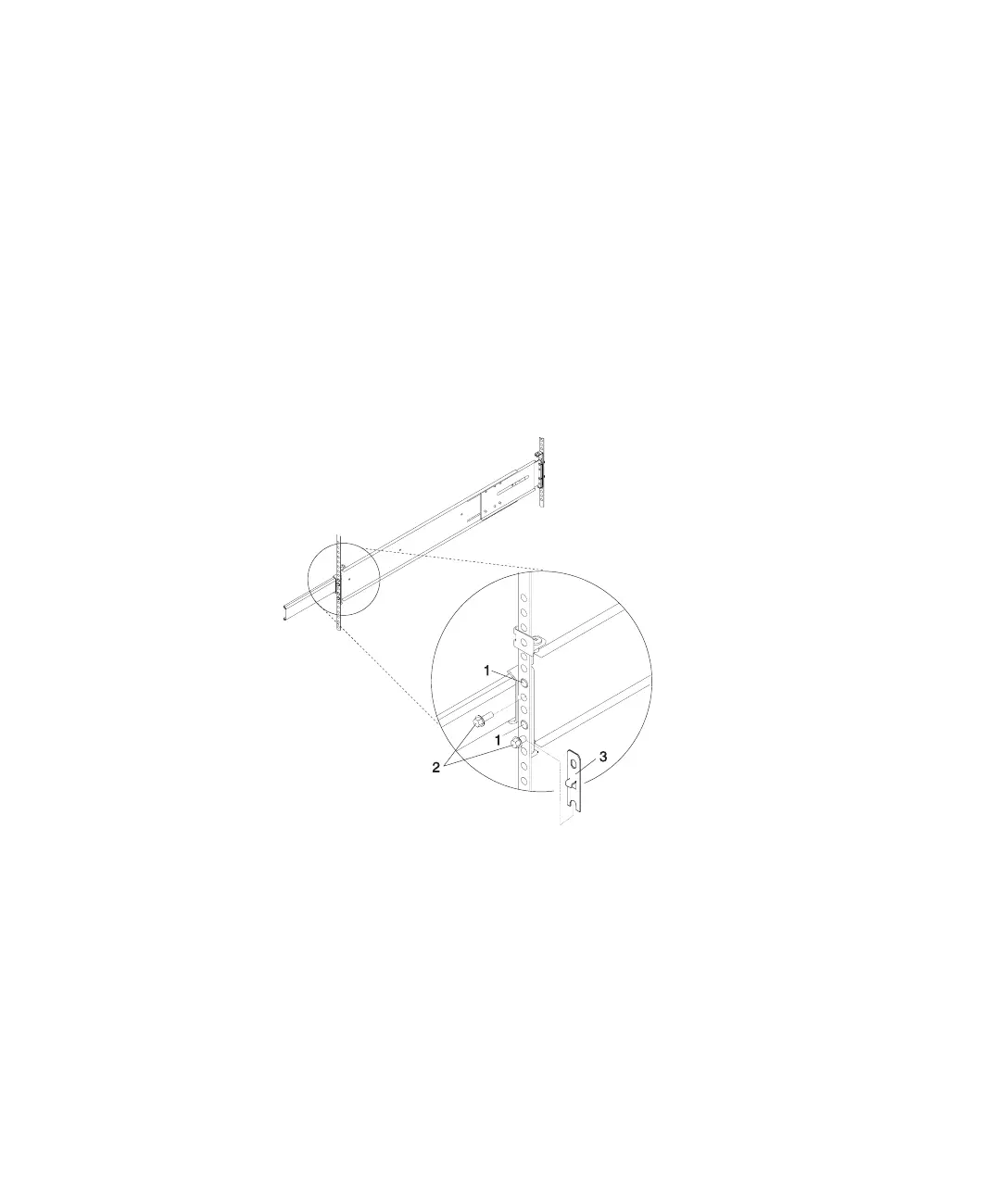

1 Front Slide Rail Alignment Pin
2 Retaining Screws
3 Latch Bracket
Chapter 2. Setting Up the System
19
