IBM System x3550 M4 Installation And Service Guide

The following notes describe additional information when you install the cable:
v To connect the operator information panel cable on the system board, press
evenly on the cable. Pressing on one side of the cable might cause damage to
the cable or connector.
v The operator information panel cable must pass through the chassis latch
between fan 3 and fan 4 in order not to impede the fan cage.
6. Replace the cover (see “Replacing the cover” on page 209).
7. Slide the server into the rack.
8. Reconnect the power cords and any cables that you removed.
9. Turn on the peripheral devices and the server.

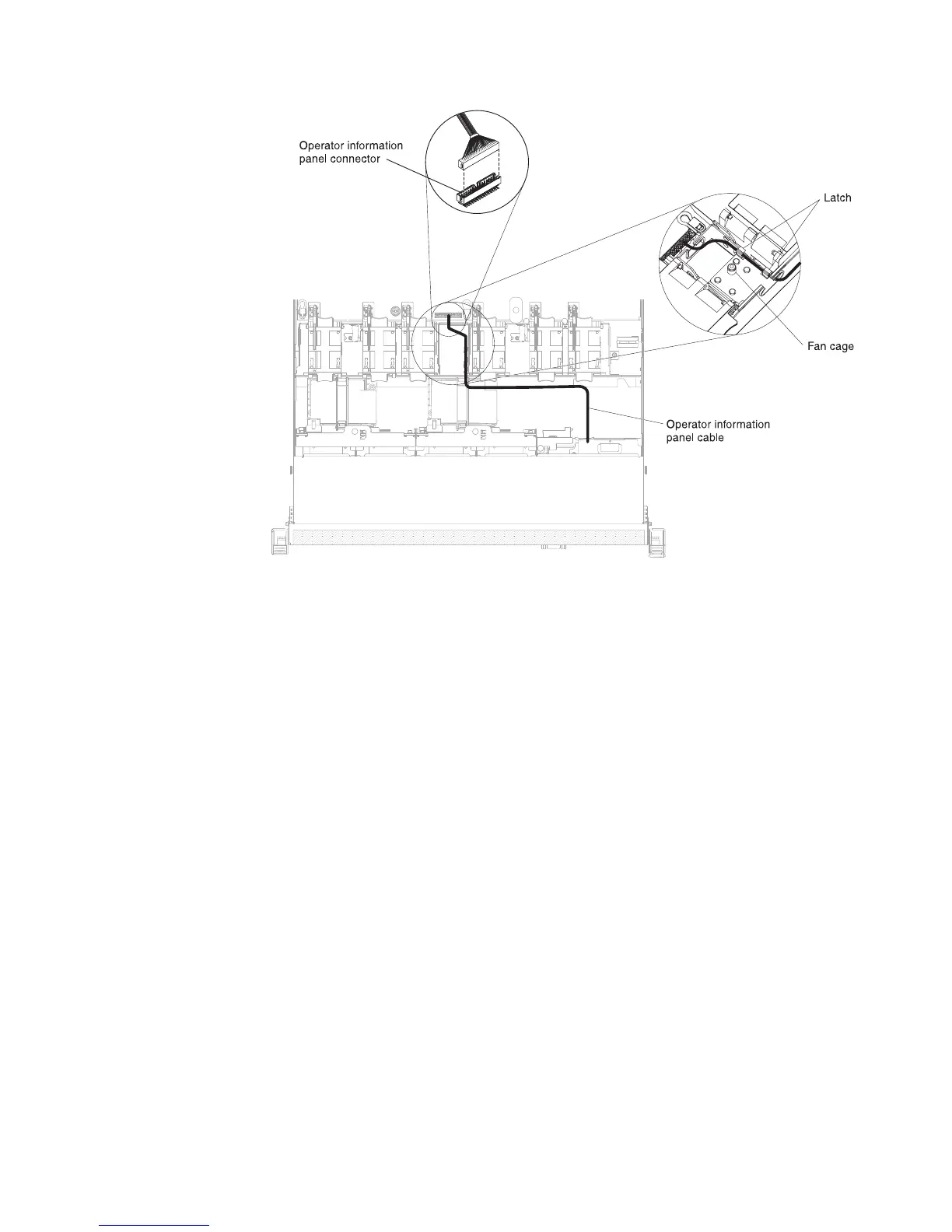

Figure 78. Operator information panel cable connection
Chapter 2. Installing optional devices 95

IBM System x3550 M4 Specifications

General

Processor	Intel Xeon E5-2600 series
Chipset	Intel C600 series
Memory	Up to 768 GB
Storage	Up to 8 x 2.5" hot-swap drives
Form Factor	1U rack
Power Supply	750 W AC
Network Interface	4 x 1 GbE
RAID Support	RAID 0, 1, 10
Expansion Slots	3 x PCIe 3.0 slots
Operating System Support	Windows Server, RHEL, SUSE, VMware
Management	Integrated Management Module II (IMM2)
