6. Slide the server all the way into the rack until it latches.
Connecting the cables
The following illustrations show the locations of the input and output connectors
of the server.

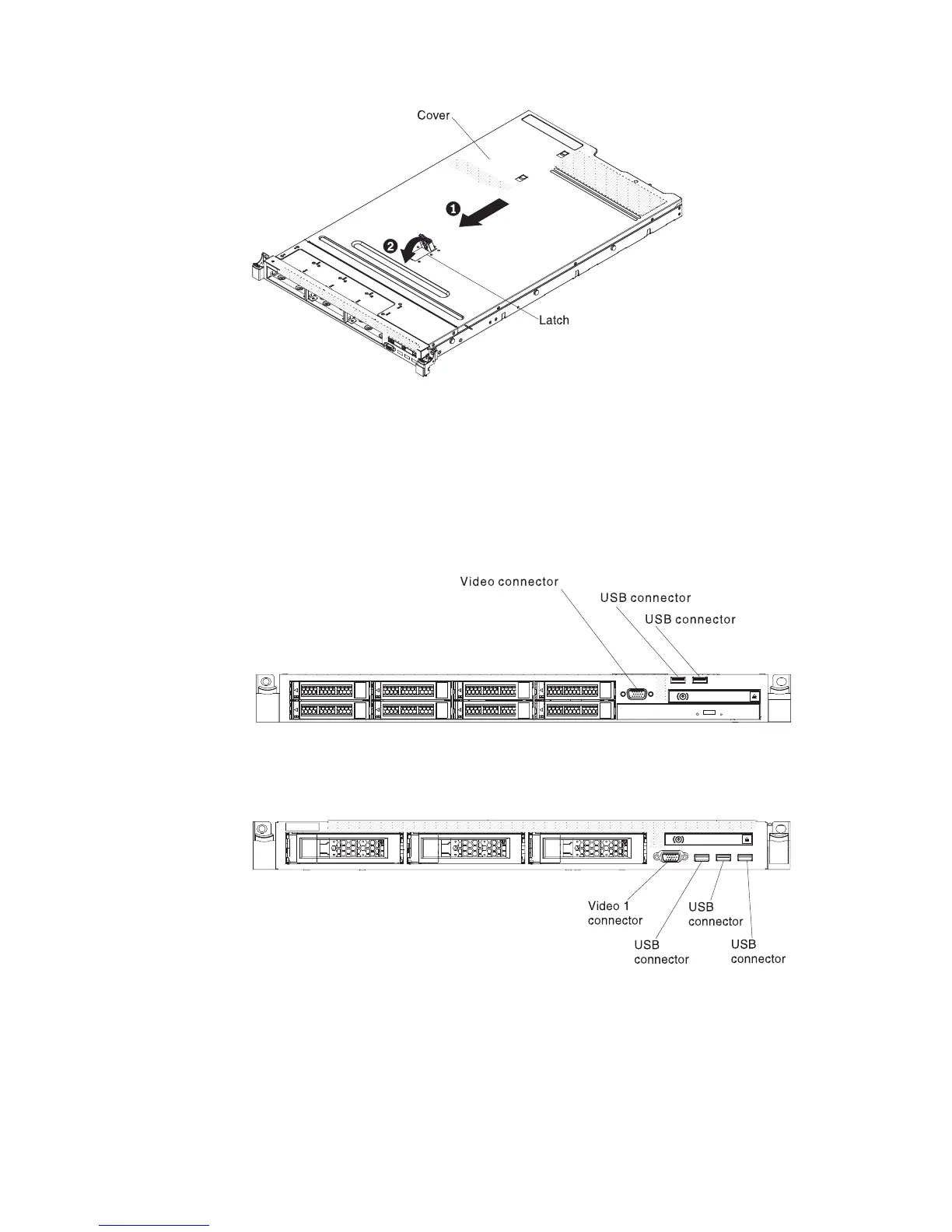

Figure 80. Cover installation
Figure 81. 2.5-inch model front of server
Figure 82. 3.5-inch model front of server
98 IBM System x3550 M4 Type 7914: Installation and Service Guide
