Replacing a USB embedded hypervisor flash device
Use this information to replace a USB embedded hypervisor flash device.
About this task
To install a USB hypervisor flash device, complete the following steps:
Procedure
1. Read the safety information that begins on “Safety” on page vii and
“Installation guidelines” on page 33.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the cover” on page 36).
4. Install the flash device:
a. Align the flash device with the connector on the system board and push it
into the USB connector until it is firmly seated.
b. Press down on the retention latch to lock the flash device into the USB
connector.
5. Reconnect the power cords and any cables that you removed.
6. Replace the cover (see “Replacing the cover” on page 209).
7. Slide the server into the rack.
8. Turn on the peripheral devices and the server.

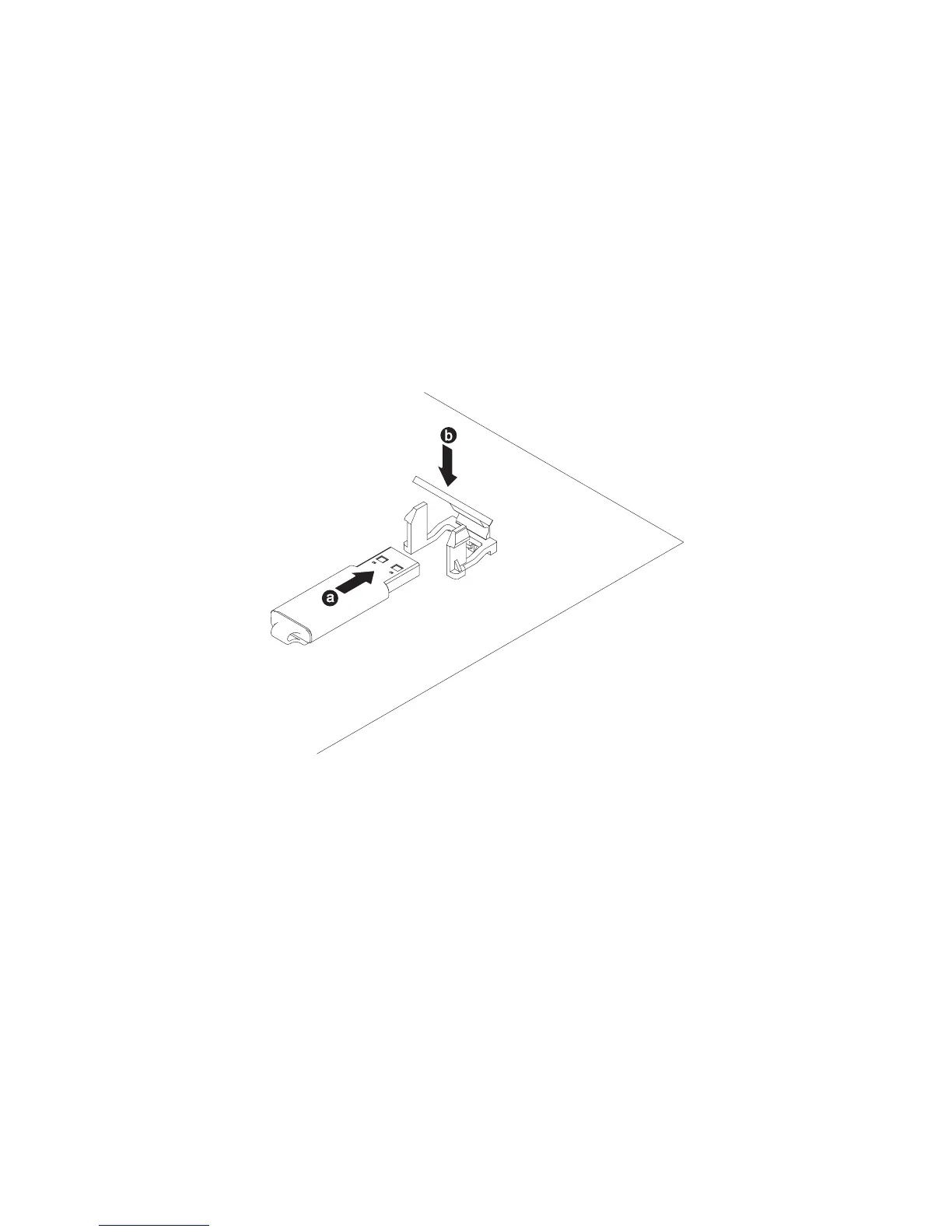

Figure 187. USB hypervisor flash device installation
Chapter 6. Removing and replacing components 293
